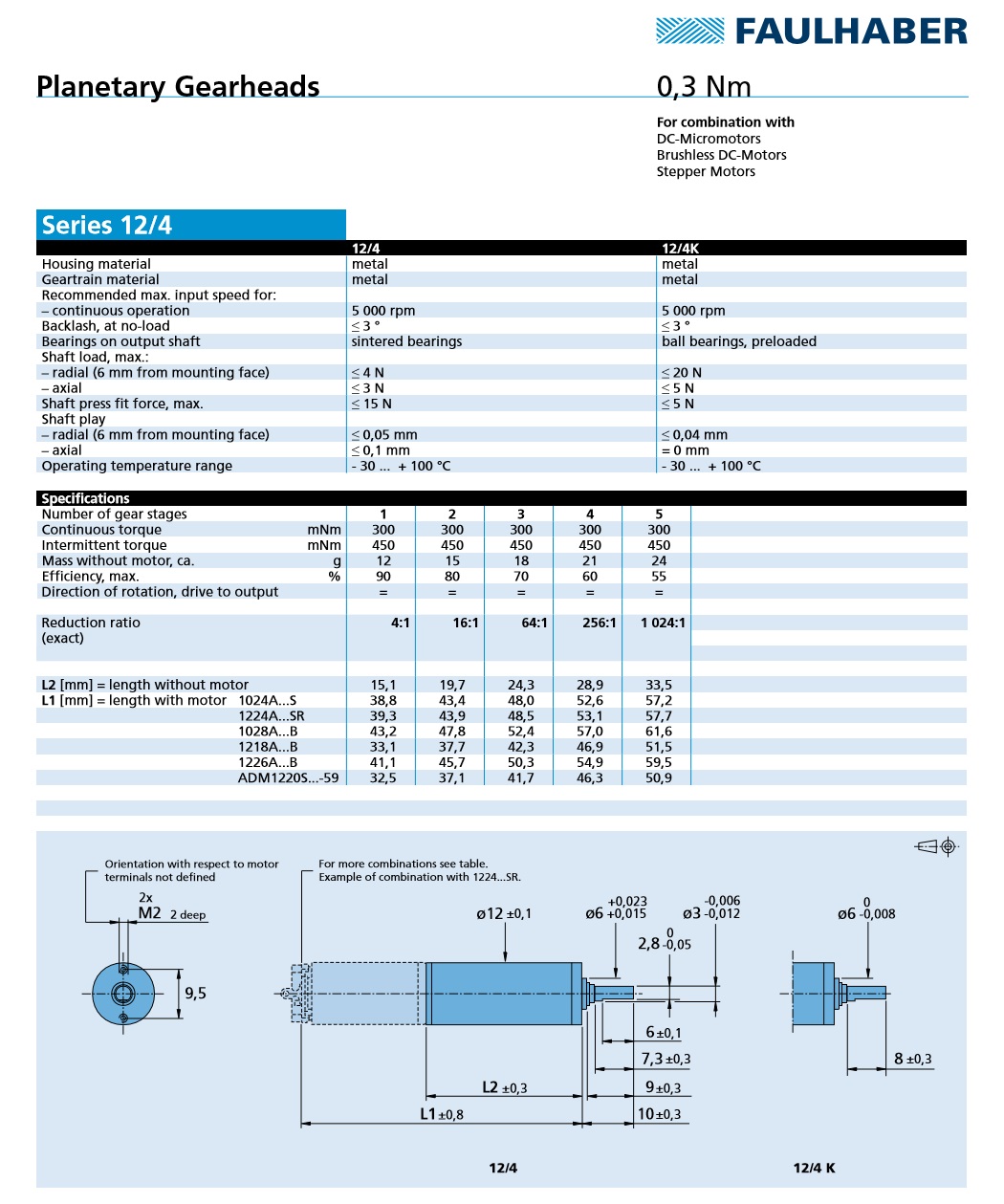

Description Specifications and Drawings


Faulhaber: Planetary Gearheads (12/4 Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

Specifications:

  • Diameter (mm): 12

  • Standard Ratios (from...to): 4:1 ... 1,024:1

  • Torque cont. duty (mNm): 300

  • Intermittent duty Torque (mNm): 450

Model No.: 12/4 4:1, 12/4 16:1, 12/4 64:1, 12/4 256:1, 12/4 1024:1
