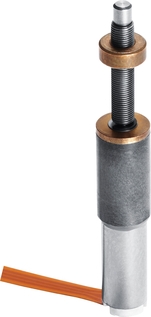

Faulhaber: Linear Actuators (06A S2 Series)
Faulhaber: Linear Actuators (06A S2 Series)



Call for Pricing

Price Quote Form


Order #: 06A-S2
.

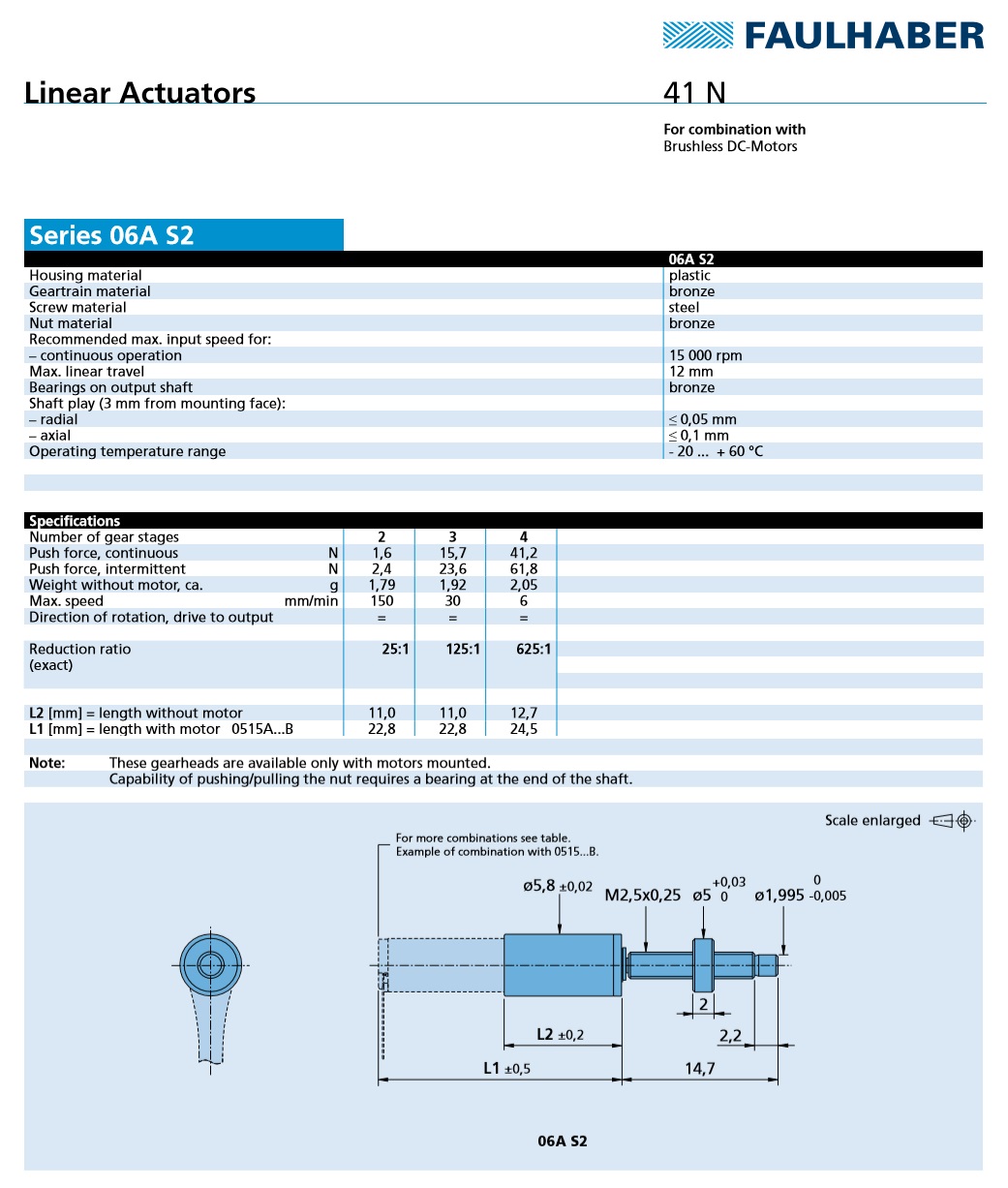

Description Specifications and Drawings


Faulhaber: Linear Actuators - Smoovy® Technology (06A S2 Series)

With permanent magnets which rotate within a fixed armature, the compact BLDC Micromotor features a brushless commutation design for long lasting performance. The Flexprint connection also allows for easy integration.

Specifications:

  • Diameter (mm): 5.8

  • Length with motor (mm): 24.5

  • Standard Ratios (from...to): 25:1, 125:1, 625:1

  • Continuous pull force (N): 41.2

  • Intermittent pull force (N): 61.8
