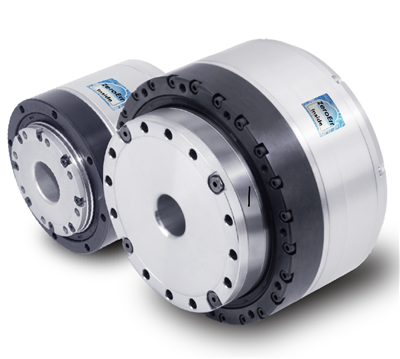

ZeroErr: Rotary Actuator eRob80F

ZeroErr stands for Zero Error Motion Control. ZeroErr designs, develops and manufactures rotary actuators and encoders which are widely used in automation industry, collaborative robots, surgical robots and bionic robots. More than thousands of customer groups in the global use simple combinations with ZeroErr products makes wide range of applications.

ZeroErr is committed to providing reliable quality standard production, cost-effective products and quick response technical support, enabling our customers to accelerate innovation, improve productivity and achieve extraordinary application performance.

Features:

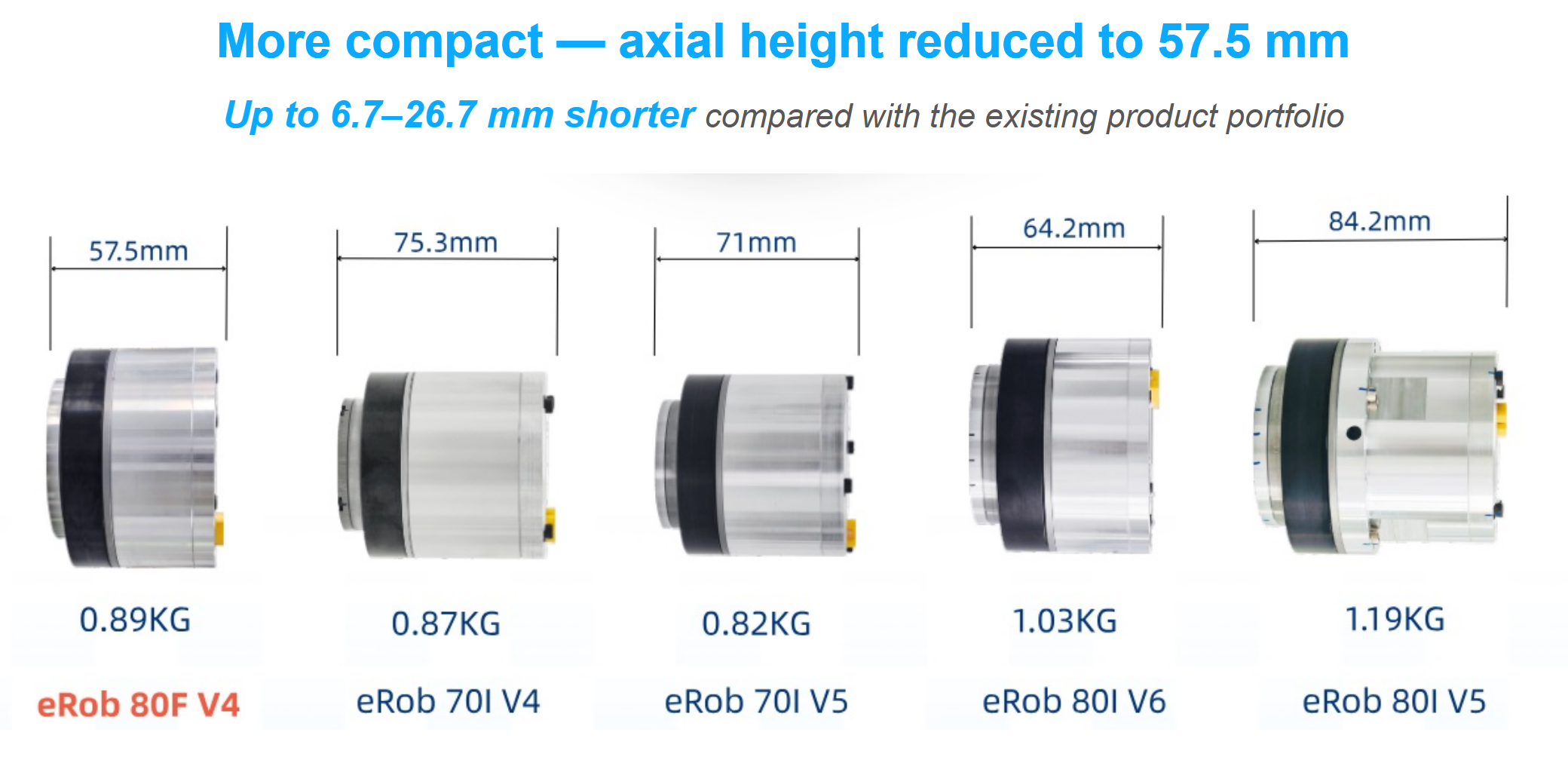

Tiny and Precise
Outer diameter: 80mm
Length: 57.5mm
Weight: 0.89kg
Max.Torque: 71N·m
Max.Speed: 60RPM

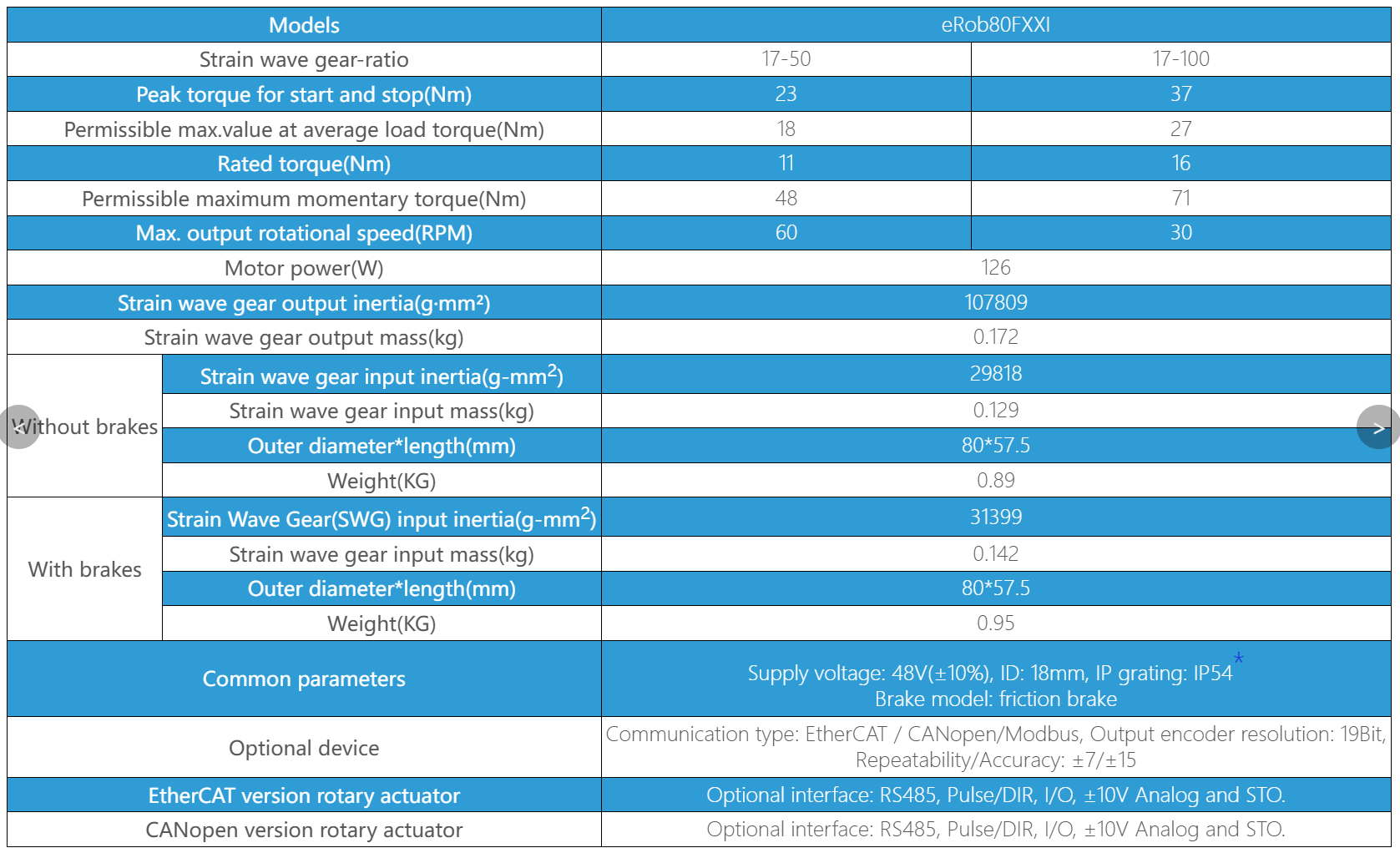

Model

eRob80FXXI

Strain wave gear-ratio

17-50

17-100

Peak torque for start and stop(Nm)

Permissible max.value at average load torque(Nm)

Rated torque(Nm)

Permissible maximum momentary torque(Nm)

Max. output rotational speed(RPM)

Motor power(W)

126
