The speed and precision of Adept Viper six-axis robots make them ideal for operations requiring fast and precise automation.

The Adept Viper™ six-axis robot is a high-performance articulated robot ideal for assembly, material handling, packaging, machine tending, and many other operations requiring speed and accuracy in a 650mm or 850mm reach.

• Rapid deployment using familiar ladder logic programming languages of existing PLC (IEC 61131-3)
• Diagnostics display enables faster trouble shooting
• Ethernet TCP/IP capability to control the robot through a PC, PLC, or robot controller
• High-resolution, absolute encoders to provide high accuracy, superior slow-speed following, and easy calibration
• High-efficiency, low-inertia Harmonic Drives and a lightweight arm to deliver maximum acceleration
• Maximum payload 5 kg

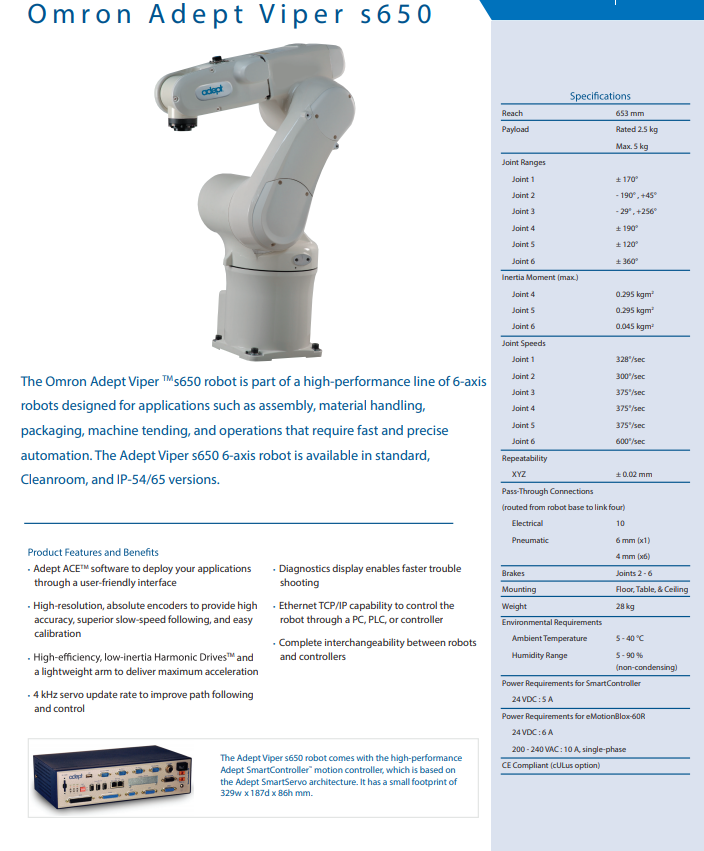

Viper 650

• Reach: 653mm
• Weight: 28 kg
• Reapeatability: ±0.02°
• Max payload: 5 kg
• Table floor or inverted mount

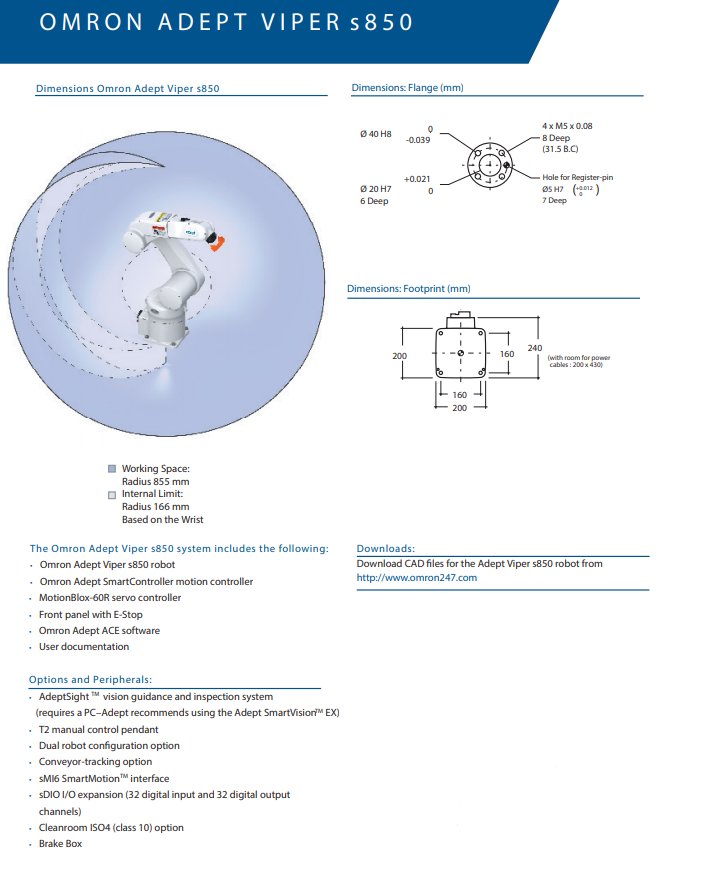

Viper 850

• Reach: 855mm
• Weight: 28 kg
• Reapeatability: ±0.03°
• Max payload: 5 kg
• Table floor or inverted mount
