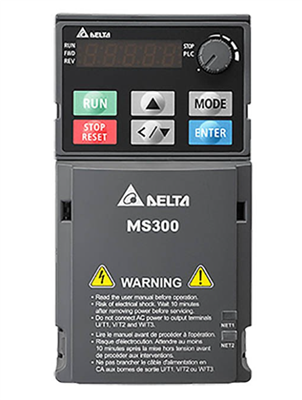

VFD38AMS43AFSHA



Alternate View


Shop by Phone (972) 719-5555 or Email inquiry@e-motionsupply.com.
Price : $1,269.60


Availability: Subject to availability
Order #: VFD38AMS43AFSHA
Qty:

Description Ordering Information Specifications and Drawings


Delta: AC Motor Drives (MS300 Series)

Delta's MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system —all included in the MS300 series with drive size reduced up to 40%.

MS300 Series

The Delta MS300 series is a compact vector drive that supports both IM and PM motor control and includes an STO (Safe Torque Off) function.

Built-in functions include PLC capacity for simple programming, communication slot and a USB port to make data uploads quick and easy!

STO, when activated, will stop the drive from providing power. This can be used to prevent unexpected motor rotation while the drive remains connected to a power supply.

The MS300 was launched in 2017.

Specifications:

  • Supports Open loop control of IM and PM motors.
  • Output frequency: Standard models: 0 to 599 Hz; High speed models: 0 to 1500 Hz (V/f Control).
  • Dual rating design: 120% for 60 seconds for Normal Duty (ND); 150% for 60 seconds for Heavy Duty (HD).
  • Built-in PLC program with 2K steps capacity.
  • Removable 5-digit LED keypad for remote operation.
  • Safety standard compliance: Safe Torque Off (SIL2/PLd).
  • Multi-motor Controlbuilt-in four IM motor control parameters.
  • Optional built-in Class A (C2) standard EMC filter for 1-phase 230V, 3-phase 460V models.
  • One high speed pulse input terminals MI7 built-in with maximum speed up to 33kHz.
  • One high speed pulse output terminals DFM built-in with maximum speed up to 33kHz.
  • New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications.
  • Built-in one slot do communication card installation : CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP.
  • Built-in brake choppers for the entire series.

Applications:

  • Machine tools
  • Textile machines
  • Woodworking machines
  • Packaging machines
  • Electronics
  • Fans
  • Pumps
  • Air compressors

Supporting Links:

Delta-MS300-Catalog.pdf.

Delta-MS300-UserManual.pdf.

Delta-MS300-HSM-UserManual.pdf.

Delta-MS300-Dimensions.pdf.
