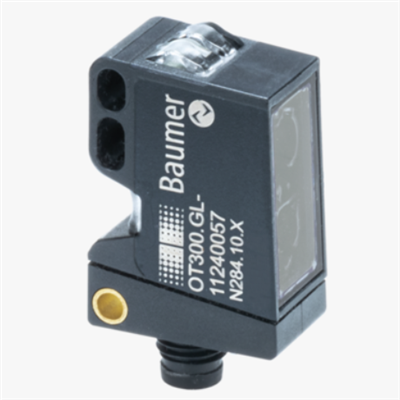

Baumer: SmartReflect Light Barriers OT300.SL-GDZZJ.72CU

Baumer: SmartReflect Light Barriers OT300.SL-GDZZJ.72CU

Baumer

Price : $429.00

Availability: Mfr. Standard Leadtime
Order #: OT300.SL-GDZZJ.72CU

Qty:

Description

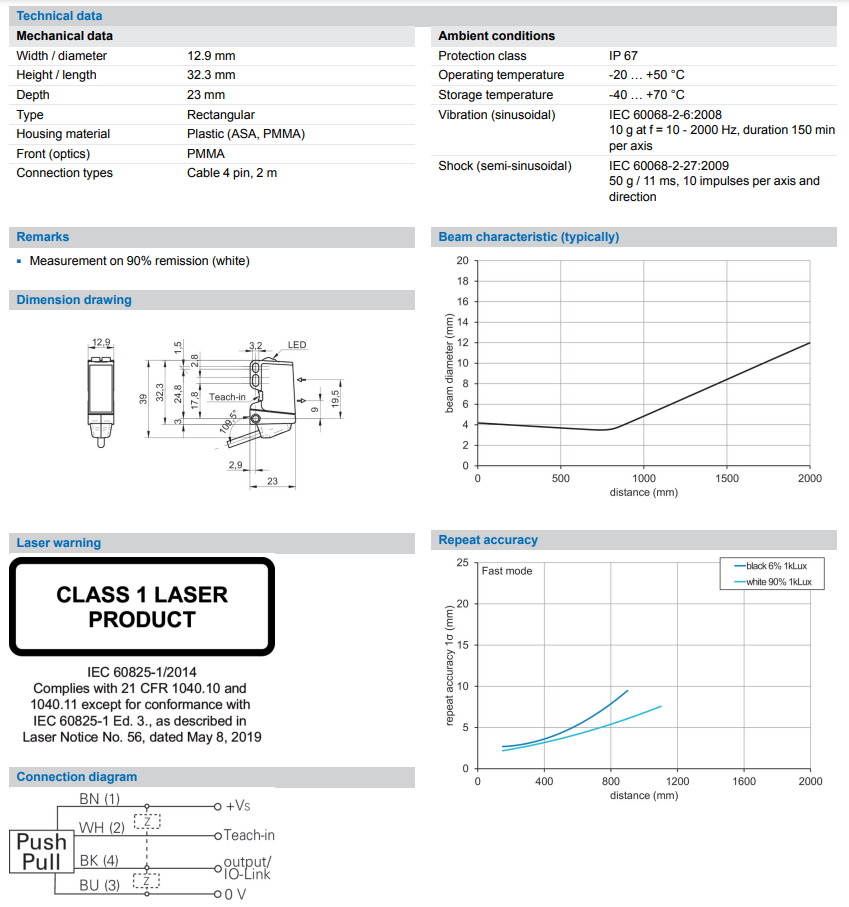

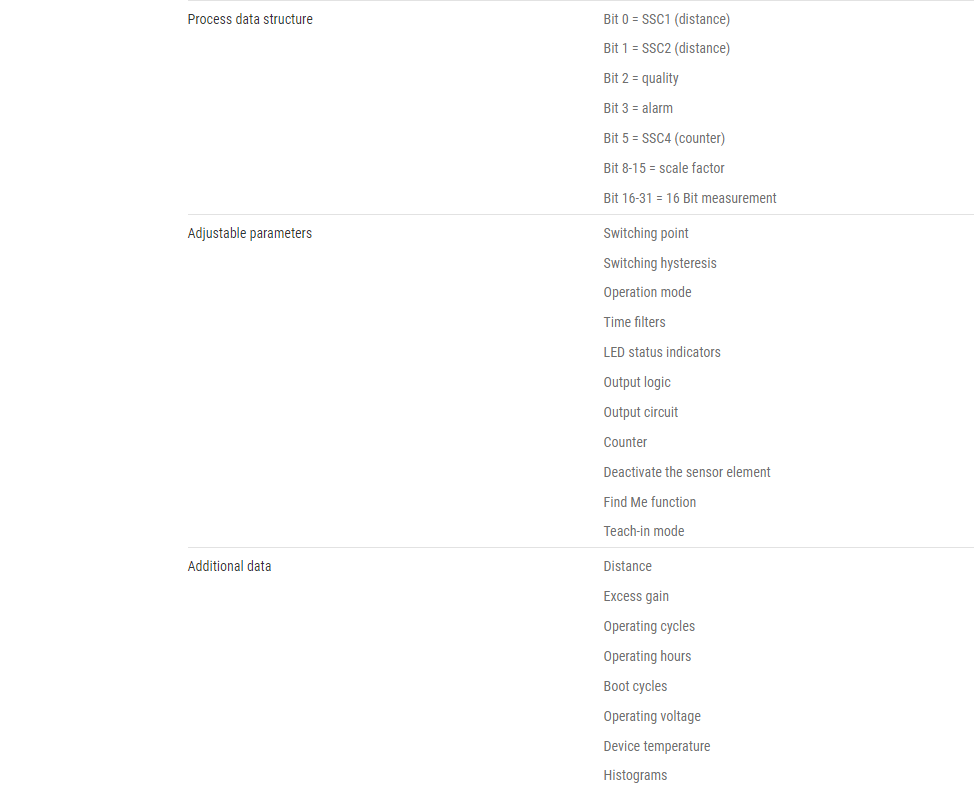

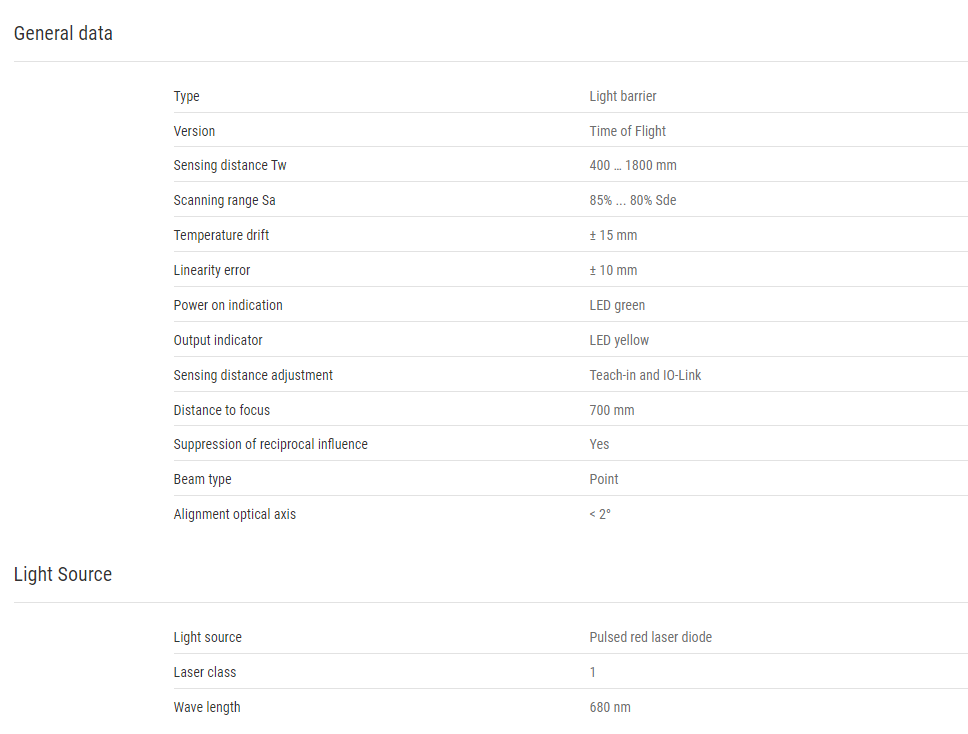

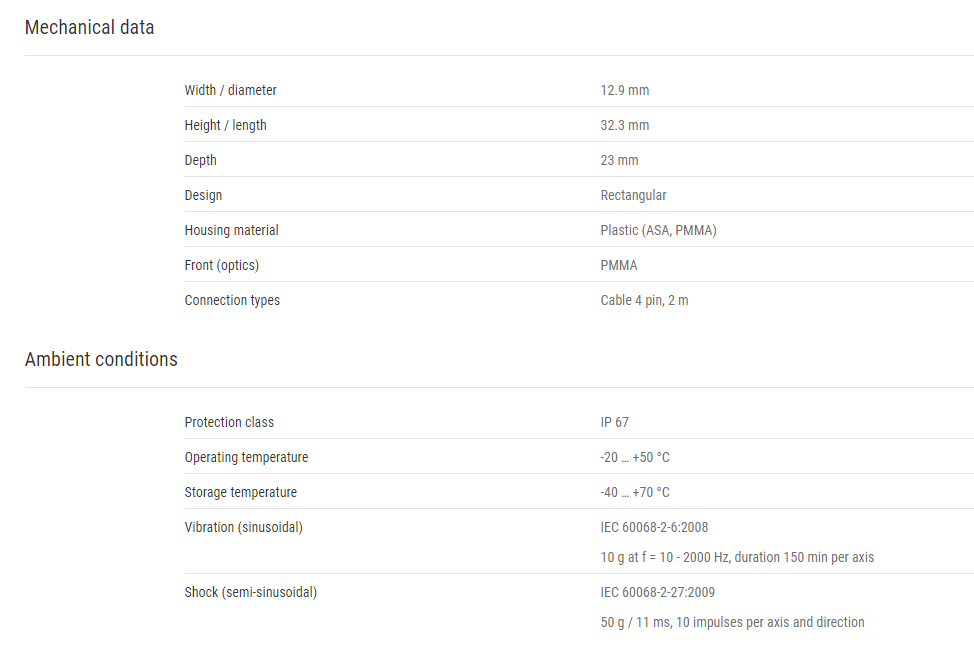

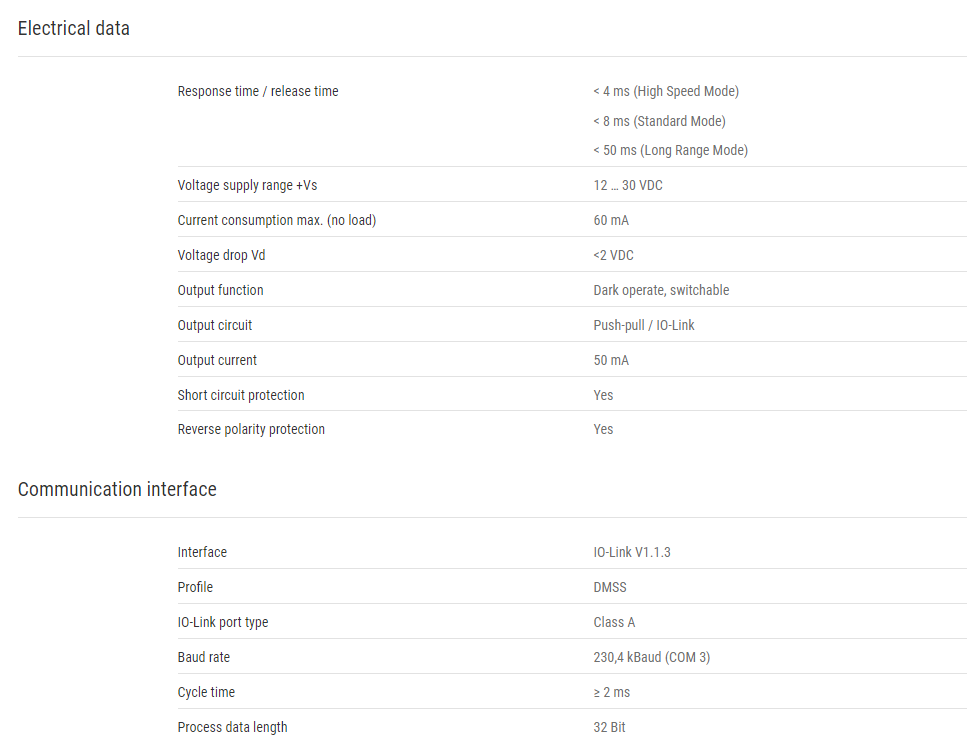

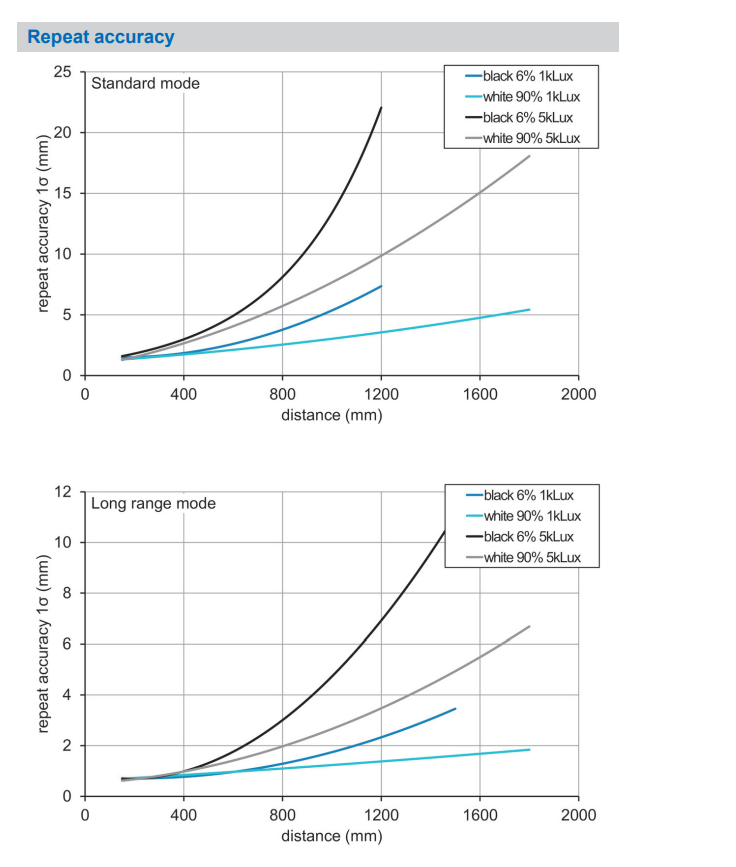

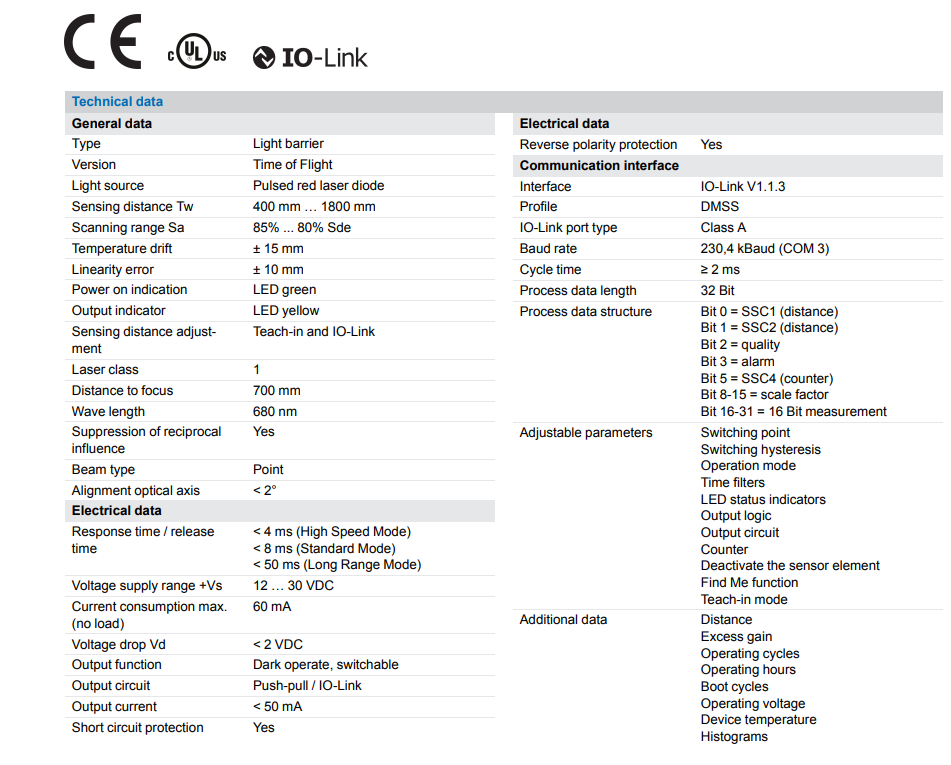

Specifications and Drawings

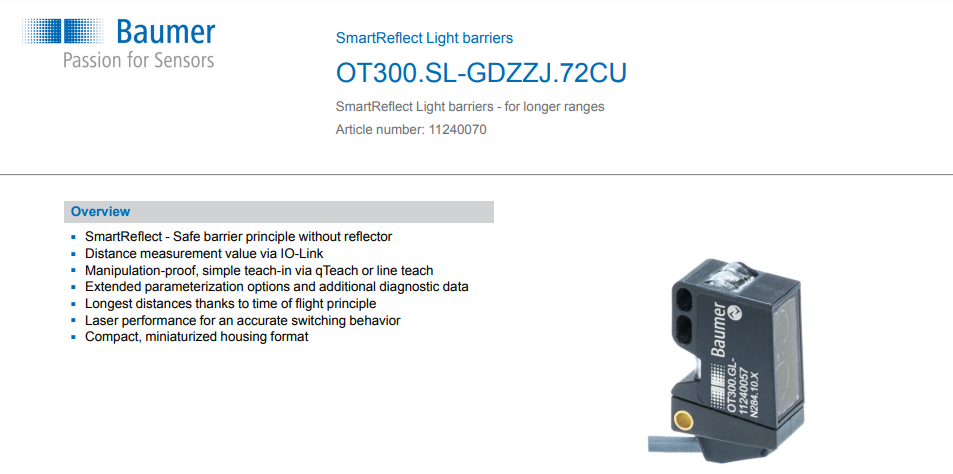

Baumer: SmartReflect Light Barriers OT300.SL-GDZZJ.72CU
Article no.: 11240070
SmartReflect Light barriers - for longer ranges

SmartReflect - Safe barrier principle without reflector
Distance measurement value via IO-Link
Manipulation-proof, simple teach-in via qTeach or line teach
Extended parameterization options and additional diagnostic data
Longest distances thanks to time of flight principle
Laser performance for an accurate switching behavior
Compact, miniaturized housing format

Software - IODD V1.1 (OT300SL)______________________________(ZIP | 278 KB)

EPLAN ________________________________________________Link to Data Portal
