Silicon Sensing: Gyroscopes (CRH03 Series)

A world-class, high-performance, gyroscope that delivers outstanding stability with low noise.

CRH03 Series

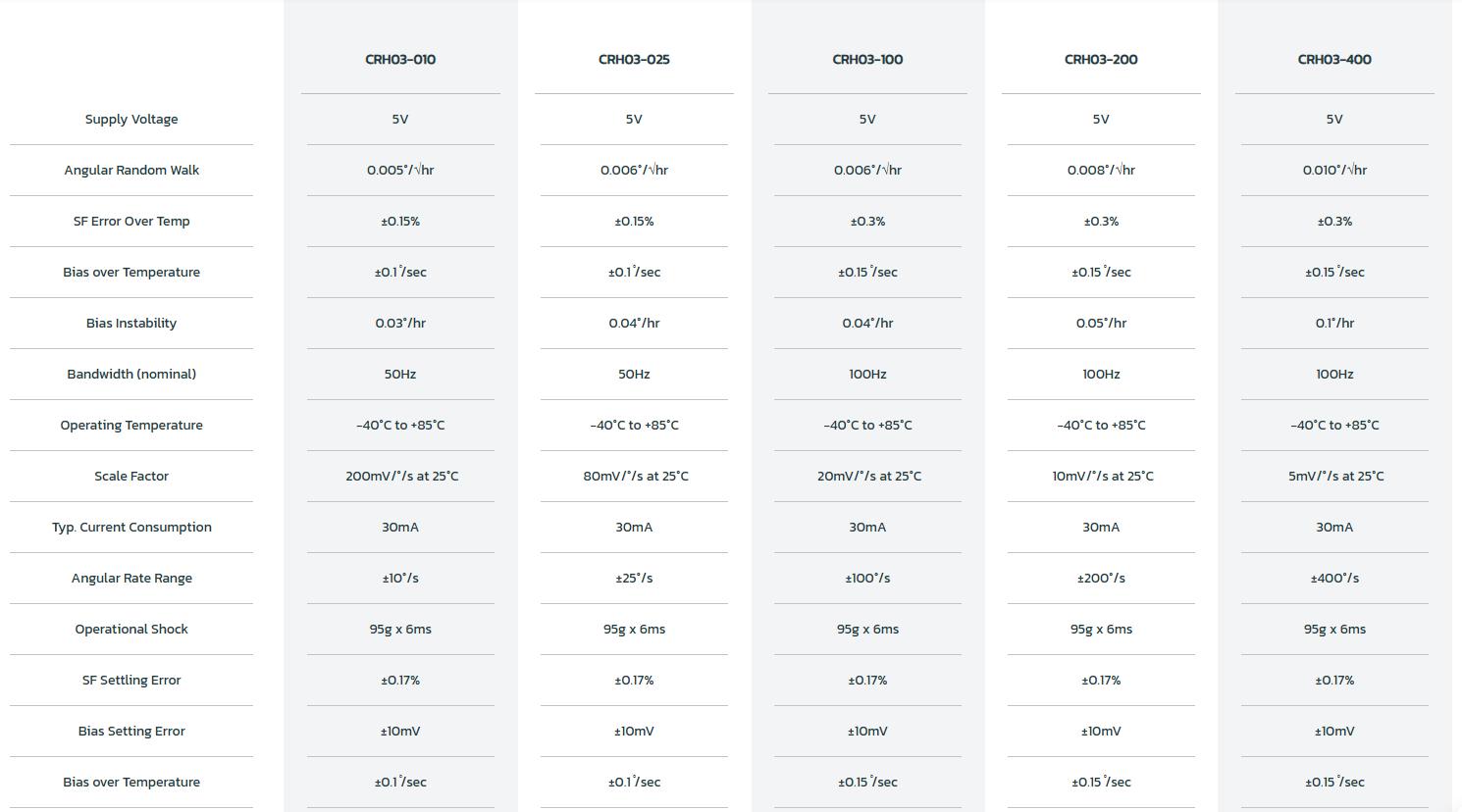

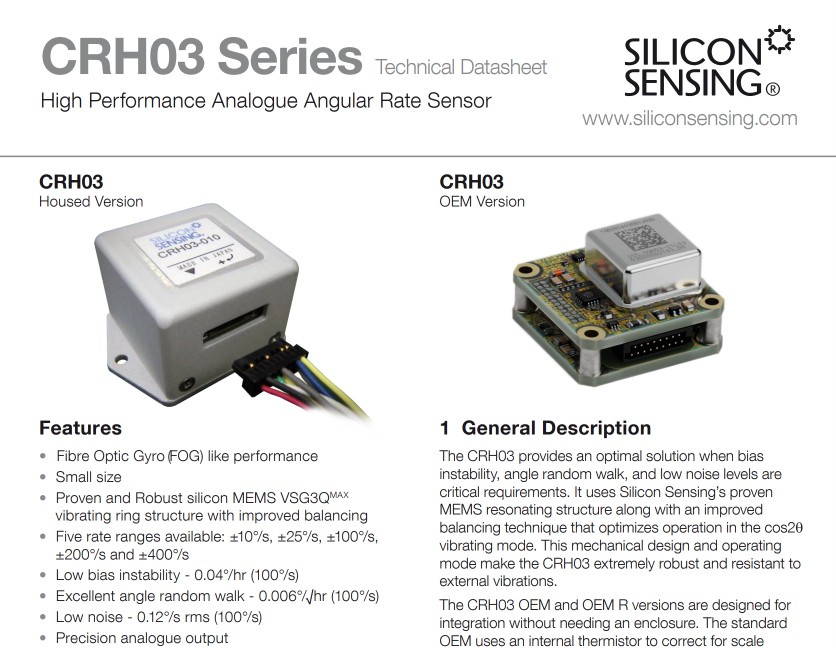

The CRH03 is a class-leading standalone MEMS gyroscope. This standalone gyro is the ultimate product where performance in bias instability, angle random walk and low noise are of critical importance. Available in five rate ranges; ±10°/s, ±25°/s, ±100°/s, ±200°/s and ±400°/s. This unit has comparable bias characteristics to FOG (fibre-optic gyrosopes) and DTG (dynamically-tuned gyroscopes).

An on-board temperature sensor allows the performance to be further tuned based on the operating environment. The resonant frequency of the ring is also taken into consideration to maintain optimisation with aging, temperature, and shock effects with respect to the host environment.

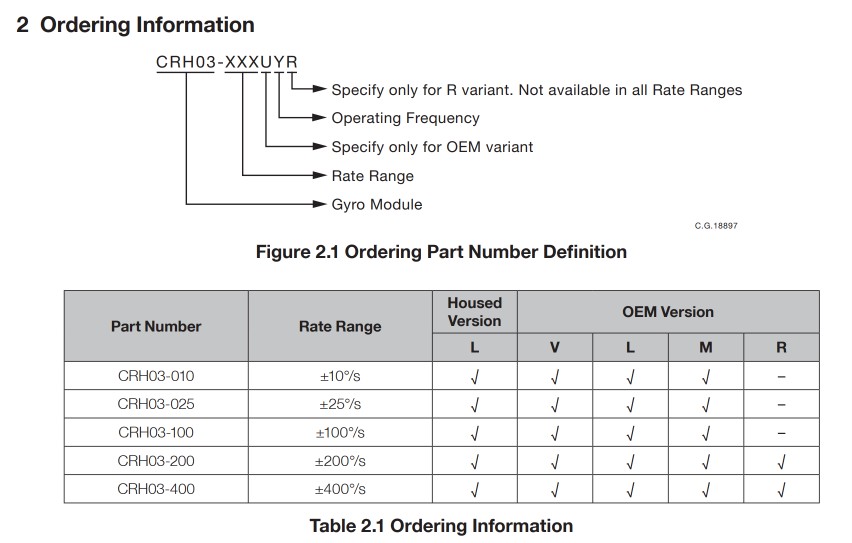

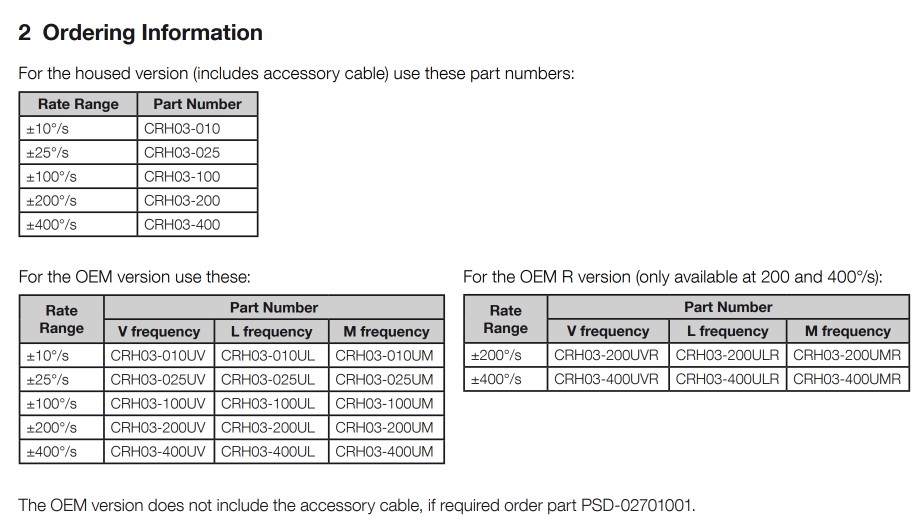

Model No.: CRH03-010, CRH03-025, CRH03-100, CRH03-200, CRH03-400
