Renishaw: ATOM™ 20 μm linear FPC Readhead #ATOM2F0-000
Renishaw: ATOM™ 20 μm linear FPC Readhead #ATOM2F0-000

Alternate View
Renishaw
Price : $399.00


Availability: 32-38 weeks
Order #: ATOM2F0-000
Qty:

Description Ordering Information Specifications and Drawings

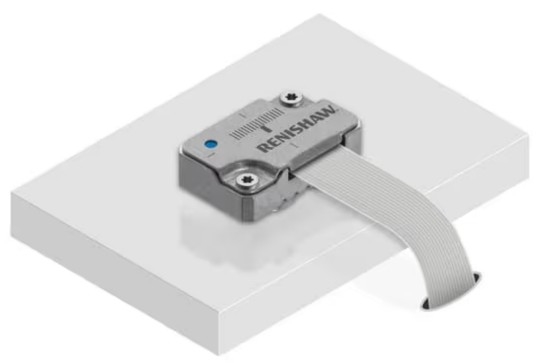

Renishaw: ATOM™ 20 μm linear FPC Readhead #ATOM2F0-000
ATOM™ 20 μm linear FPC readhead (used with FPC variant ACi or customer PCB (no cable)) for use with RTLF20 or RKLF20 scale

ATOM™ 20 or 40 µm pitch incremental miniature readhead series

About ATOM readheads

  • Miniature package; analogue output from the readhead
  • Multiple interpolation options, with resolutions to 1 nm (additional separate interface required)
  • Long-term stability provided by Renishaw's market proven filtering optics and dynamic signal control, ensuring low SDE and excellent dirt immunity
  • Fast and simple calibration at the push of a button (on the interface)

Technical table

Cable length (m)0
Connector typeFPC: for use with FPC variant ACi or customer PCB
Encoder product typeReadhead
Encoder sizeMiniature
Extended temperature rangeNo
Functional safetyNo
Measurement typeIncremental
Movement typeLinear
Output signalAnalogue
Scale compatibilityFlexible stainless steel tape
Scale pitch (µm)20
Scale shapeLinear
SeriesATOM
Ultra high vacuumNo
