Heidenhain:Angle Encoder ROC 2000 Series ROC 2390F ID:1110411-01

Home > Heidenhain >

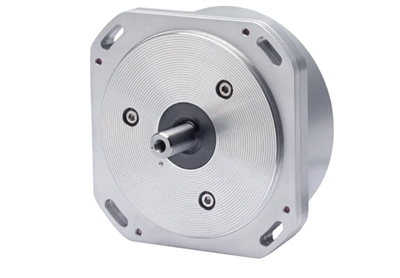

Heidenhain:Angle Encoder ROC 2000 Series ROC 2390F (ID:1110411-01)

Price : $5,116.00

Availability: 12 weeks
Order #: 1110411-01

Qty:

Description

Ordering Information

Heidenhain: Angle Encoder ROC 2000 Series ROC 2390F (ID:1110411-01)
Absolute angle measuring devices for separate shaft coupling


ROC 2390F (1110411-01)

Absolute angle encoder (singleturn) with integral
bearing for separate shaft coupling
System accuracy:        ± 5.0''
Data interface:         Fanuc05
Positions per
revolution:             67108864
Power supply:           3.6 V ... 14 V
Shaft:                  Solid shaft, diameter 10
                        mm, length 20 mm
Flange version:         Rectangular flange with 80
                        mm centering collar,
                        aluminum
Protection rating:      IP64 (EN60529)
Cable length:           1.00 m
Cable type:             PUR Ø 6.0 mm
Electrical connection:  Coupling M12, male, 8-pin
Connecting direction:   Cable outlet for axial and
                        radial use
Pin configuration:      D532351

ROC 2390F ID:1110411-01


Absolute angle encoder (singleturn) with integral
bearing for separate shaft coupling
System accuracy:        ± 5.0''
Data interface:         Fanuc05
Positions per
revolution:             67108864
Power supply:           3.6 V ... 14 V
Shaft:                  Solid shaft, diameter 10
                        mm, length 20 mm
Flange version:         Rectangular flange with 80
                        mm centering collar,
                        aluminum
Protection rating:      IP64 (EN60529)
Cable length:           1.00 m
Cable type:             PUR Ø 6.0 mm
Electrical connection:  Coupling M12, male, 8-pin
Connecting direction:   Cable outlet for axial and
                        radial use
Pin configuration:      D532351
