Parker: PowerStation (IPC/IPX Series)
Parker: PowerStation (IPC/IPX Series)



Price : $3,906.00

Price with Selected Options: $3,906.00

Order #: IPC-IPX


Model Number/Code:


Qty:
Description Ordering Information Specifications and Drawings


Parker: PowerStation (IPC/IPX Series)

IPC PowerStation touchscreen panels have 10"-17" screens plus a no-display option and utilize Intel Mobile CPUs. All IPC units come configured to run third-party or custom Windows applications and do NOT include an InteractX runtime license.

IPC PowerStation touchscreen industrial panel PCs offer more processing power, more memory, more storage, more reliability and less thermal dissipation than ever before. And the IPC gives you all this while offering lower configured price points. Parker's industrial PC products include 10”, 15”, and 17” panel-mount color touchscreen systems and a machine-mount, no-display PC-only system. The IPC PowerStations are configured to run third-party or custom Windows applications and do not include an InteractX runtime license. IPC PowerStations are designed and tested to the extremes that can satisfy the most demanding applications. All models are NEMA-rated. The 15” display is optionally equipped with a stainless steel bezel for clean room/sanitary work environments. And all PowerStations now come with an industry-leading, 24-month warranty.

IPC PowerStation Industrial Panel PC - Features:

  • No display, 10”, 15" and 17" touchscreen display

  • Configured to run third-party or custom Windows applications

  • Celeron M550 at 2.0GHz or Core2Duo T7500 at 2.2GHz

  • Windows® operating system

  • 2GB or 4GB memory

  • 80GB SSD or 160GB hard drive

  • Intel Express graphics

  • HD audio

  • 4x USB2.0 ports, 2x RS-232, 1x RS-232/422/485

  • 2x 1000 BaseT Ethernet ports

IPX PowerStation touchscreen HMI panels have 10"-17" screens plus a no-display option and use an industrial PC core. They come with InteractX Windows Supervisory HMI Software, offering the most advanced development interface & graphics of any Windows HMI

IPX PowerStation HMI panels offer more processing power, more memory, more storage, more reliability and less thermal dissipation than ever before. And the IPX gives you all this while offering lower configured price points. Parker's industrial PC products include 10”, 15”, and 17” panel-mount color touchscreen systems and a machine-mount, no-display PC-only system. The IPX PowerStations come with InteractX runtime preloaded and enabled, reducing the time it takes to get a project running. IPX PowerStations are designed and tested to the extremes that can satisfy the most demanding applications. All models are NEMA-rated. The 15” display is optionally equipped with a stainless steel bezel for clean room/sanitary work environments. And all PowerStations now come with an industry-leading, 24-month warranty.

IPX PowerStation Industrial PC HMI - Features:

  • No display, 10”, 15" and 17" touchscreen display

  • InteractX Windows Supervisory HMI Software

  • Celeron M550 at 2.0GHz or Core2Duo T7500 at 2.2GHz

  • Windows™ operating system

  • 2GB or 4GB memory

  • 80GB SSD or 160GB hard drive

  • Intel Express graphics

  • HD audio

  • 4x USB2.0 ports, 2x RS-232, 1x RS-232/422/485

  • 2x 1000 BaseT Ethernet ports

  • Optional PCI Expansion Slots: (2) 3/4 Length or (1) 3/4 Length PCI and (1) PCI Express (X4) (coming soon)

Parker's InteractX™ offers the most advanced development interface and graphics of any Windows HMI, with the lowest installed cost and development complexity. You'll be able to use InteractX right out of the box, without special IT skills or assistance. It's user-friendly, visual design interface includes styles and templates that enable multiple users to quickly build applications with a consistent “look and feel.” InteractX's toolbin allows custom tools or entire screens to be saved for drag and drop into other applications and easy sharing between designers.
InteractX™ - Features:

  • Includes Quick Logging – start logging data in minutes

  • Full featured Historical Trending software

  • Supervisory-Level HMI aggregates data from multiple sources, including 3rd-party PLCs and HMI panels

  • Time-saving “Distributed HMI” integration with Interact Xpress

  • Scalable, lifelike graphics

  • No preset limits on pens or logs

  • Unlimited tags – no hidden costs

  • Over 60 standard communication drivers included

  • Sophisticated Recipe Management tools included

  • Preconfigured and custom Panel Tool library for quick screen development

  • Supports ActiveX controls for easy integration of 3rd-party tools

  • Includes VB for Applications (VBA) for easy customization

  • Vast 3rd-party OPC client/server support

  • Easy multi-language support

  • Includes Easy E-Sigs tools to simplify 21CFR11 compliance

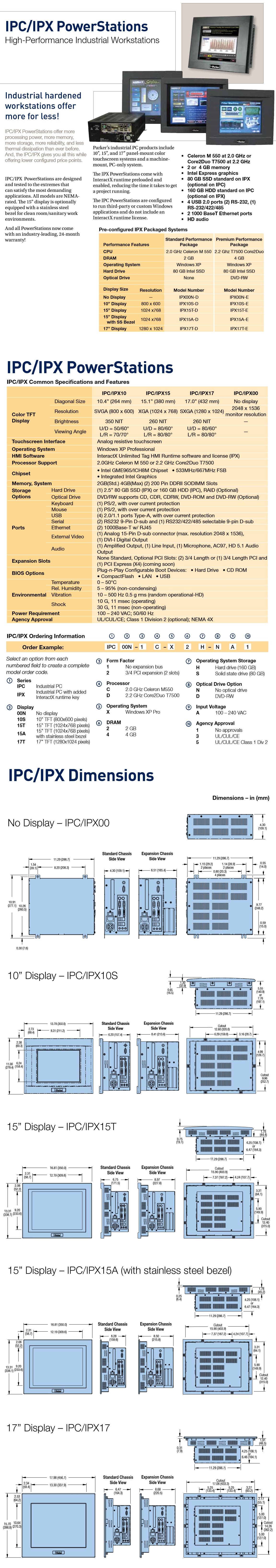

Technical Specifications:

  • Product Type: Industrial Panel PC (IPC), Automation Panel / Windows HMI (IPX)

  • Display Size: 10" | 15" | 17" | No Display

  • Display Type: Color TFT

  • Interface Type: Analog Resistive Touchscreen

  • Maximum Screen Resolution (Pixels): 10": 800x600 | 15": 1024x768 | 17": 1280x1024

  • Backlight Life (Hours): 50,000

  • Operating System: Windows XP Pro | Windows 7

  • HMI Software: None Supplied (IPC), InteractX Unlimited Tag HMI Runtime software and license (IPX)

  • I/O Ports: 4x USB | 2x RS-232 | 1x RS-232/422/485 | 2x 1000 BaseT Ethernet | 1x DVI-I | 1x Analog VGA | HD5.1 audio output

  • CPU: Celeron M550 (2.0 GHz) | T7500 Core2Duo (2.2 Ghz)

  • System Memory (DRAM): 2GB - 4GB

  • Client Data Storage: 80GB (Intel SSD) | 160GB (hard drive) | RAID (optional) | DVD-RW (optional)

  • Input Supply Voltage: 100 – 240 VAC (50/60Hz)

  • Operating Temperature (C): 0 ... 50

  • Operating Temperature (F): 32 ... 122

  • Operating Humidity: 5-95% (non-condensing)

  • Protection/Ingress Rating: NEMA 4X (Indoor Only) | Stainless Steel bezel optional on 15"

  • Certificates: CE | UL/cUL | Class 1 Division 2 (optional)


Model No.
: [IPC00, IPX00, IPC10, IPX10, IPX15, IPX17 (Call for Pricing)], IPC15A-1C-X2H-NA3, IPC15A-1D-X2H-DA3, IPC15A-2C-X2H-DA3, IPC15A-2D-X4S-DA3, IPC15T-1C-72H-NA3, IPC15T-1C-X2H-DA3, IPC15T-1C-X2H-DA5, IPC15T-1C-X2H-NA1, IPC15T-1C-X2H-NA3, IPC15T-1C-X2H-NA5, IPC15T-1C-X2S-DA3, IPC15T-1C-X2S-NA1, IPC15T-1C-X2S-NA3, IPC15T-1C-X2S-NA5, IPC15T-1C-X4H-NA3, IPC15T-1C-X4S-NA5, IPC15T-1D-X2H-DA1, IPC15T-1D-X2H-DA3, IPC15T-1D-X4H-NA3, IPC15T-1D-X4S-DA3, IPC15T-1D-X4S-NA3, IPC15T-1D-X4S-NA5, IPC15T-2C-72H-NA3, IPC15T-2C-X2H-DA3, IPC15T-2C-X2H-DA5, IPC15T-2C-X2H-NA3, IPC15T-2C-X2S-DA3, IPC15T-2C-X2S-DA5, IPC15T-2C-X2S-NA3, IPC15T-2D-X2H-DA3, IPC15T-2D-X4H-DA3, IPC15T-2D-X4S-NA3, IPC17T-1C-X2H-DA3, IPC17T-1C-X2H-DA5, IPC17T-1C-X2H-NA3, IPC17T-1C-X2H-NA5, IPC17T-1C-X2S-NA3, IPC17T-1C-X2S-NA5, IPC17T-1D-X2H-DA3, IPC17T-1D-X2H-DA5, IPC17T-1D-X2S-DA5, IPC17T-1D-X4H-DA1, IPC17T-1D-X4H-NA3, IPC17T-1D-X4S-NA3, IPC17T-2C-X2H-DA3, IPC17T-2D-X2H-DA3, IPC17T-2D-X4S-NA5
