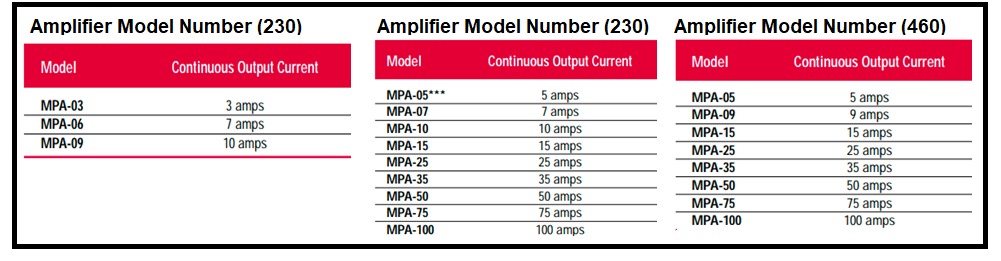

The MaxPlus® Series of high performance servo amplifiers delivers rugged efficiency to match the broad scope of your applications and power range needs. Choose from a broad current range of 3 to 100 amps at 80 to 260 Vac (230 Series) and from 5 to 100 amps at 200 to 520 Vac (460 Series), all at 45 to 65 Hz.

A legend of performance that lasts. We didn’t just design MaxPlus servo amps to work, we designed them to work hard, in the toughest conditions. So we built in advantages such as electrical transient protection on AC inputs and all I/O lines. We included a resolver for position and velocity feedback to keep things running smoothly, even when the motor heats up. To further minimize heat, we put in switch mode logic supplies. IGBT modules perform the high power switching.

Keeping costs and complications down.

Servo Amplifiers Overview You get advanced, self-contained, space-saving workhorses known the world over for dependability. You can depend on them for simple operation, too, with easy-to-read LED diagnostic indicators and simple one-turn visual adjustments.

Technology advances that produce results.

We are working with new and emerging technologies to improve our product offering. It is the mission of the MTS Automation Division to continually improve the quality, reliability and cost effectiveness of our products, while achieving higher levels of performance.

Putting it all into a complete package.

You can configure complete, matched systems with MaxPlus servo amps and high-quality MaxPlus servo motors, or you can use MaxPlus amps with other manufacturers’ motors, whichever combination is best for you.

Features

• Efficient Power Conversion

• High Frequency Switching

• Resolver Feedback

• Simulated Encoder Signals

• ±10 Volt output for Velocity and Torque Monitoring

• 12-24 Volt I/O for ±Limit, Reset, Velocity/Torque Mode

• 2 Differential Analog Input Channels (Command and Auxiliary)

• LED Diagnostic Indicators

• Motor and Amplifier Thermal Protection

• AC, I/O and Bridge Transient Suppression

• Totally Self-Contained Design

• Phoenix™ Terminal Interface

• AC In-Rush Protection

• Single or Three Phase Operation

• Simple One-Turn Visual Adjustments

• Analog Tachometer Option

• No Isolation Transformer Required

• Quasi Trapezoid with Torque Linearization: (Torque Ripple 5% Maximum)

• Common Cabling
