Parker: System Three (Two Axis: XX’-Z)

Parker Gantry Systems Minimize Your Engineering Effort

Parker’s gantry systems provide cost-effective, easy to integrate solutions that satisfy the vast majority of automation requirements. In addition to our standard gantry systems, Parker offers products with additional capabilities to fulfill the needs of special applications. Our engineering skill and manufacturing expertise have integrated these products into custom-tailored gantry solutions which have successfully addressed the most unique and exacting requirements of machine builders and integrators around the world.

• Motors, Drives and Controls

• Extended Travels

• Rotary Motion Modules

• Cleanroom Preparations

• External Position Feedback

• Vertical Axis Brakes

• End Effectors

• Protective Guarding

• Custom Support Structures

Parker’s seven standard system configurations are designed to satisfy the vast majority of gantry robot applications. By standardizing on these configurations, Parker has simplified sizing and selection, shortened lead times, and reduced costs for users of these systems. The travels and loads indicated are nominal, and should not be considered limiting factors. Longer travels and increased loads are attainable depending upon the combination of parameters.

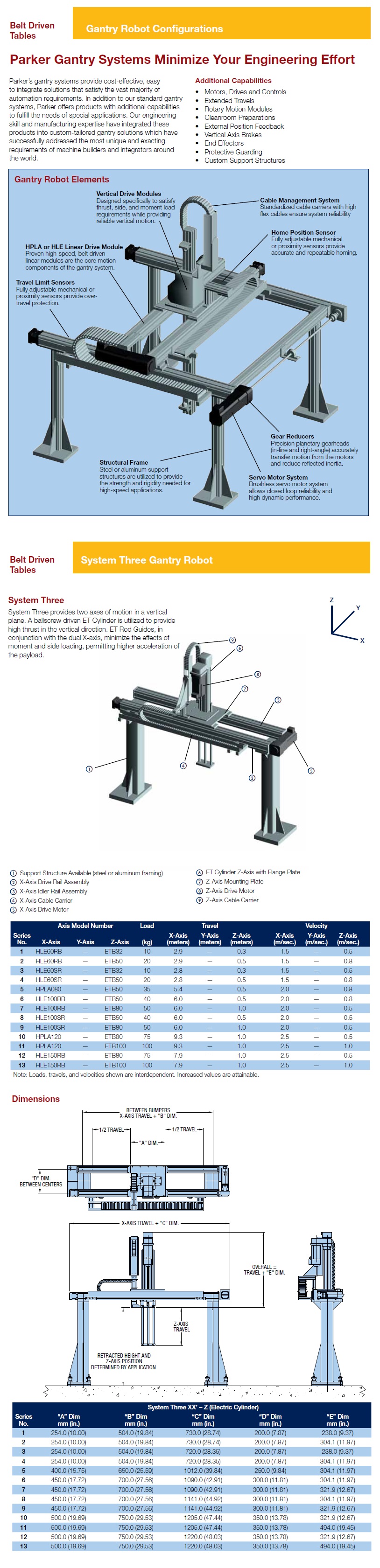

System Three

System Three provides two axes of motion in a vertical plane. A ballscrew driven ET Cylinder is utilized to provide high thrust in the vertical direction. ET Rod Guides, in conjunction with the dual X-axis, minimize the effects of moment and side loading, permitting higher acceleration of the payload.

Series No.	X-Axis	Z-Axis
1	HLE60RB	ETB32
2	HLE60RB	ETB50
3	HLE60SR	ETB32
4	HLE60SR	ETB50
5	HPLA080	ETB50
6	HLE100RB	ETB50
7	HLE100RB	ETB80
8	HLE100SR	ETB50
9	HLE100SR	ETB80
10	HPLA120	ETB80
11	HPLA120	ETB100
12	HLE150RB	ETB80
13	HLE150RB	ETB10

Size: HLE100RB-ETB50 (X-Axis) (Z-Axis), HLE100RB-ETB80 (X-Axis) (Z-Axis), HLE100SR-ETB50 (X-Axis) (Z-Axis), HLE100SR-ETB80 (X-Axis) (Z-Axis), HLE150RB-ETB100 (X-Axis) (Z-Axis), HLE150RB-ETB80 (X-Axis) (Z-Axis), HLE60RB-ETB32 (X-Axis) (Z-Axis), HLE60RB-ETB50 (X-Axis) (Z-Axis), HLE60SR-ETB32 (X-Axis) (Z-Axis), HLE60SR-ETB50 (X-Axis) (Z-Axis), HPLA080-ETB50 (X-Axis) (Z-Axis), HPLA120-ETB100 (X-Axis) (Z-Axis), HPLA120-ETB80 (X-Axis) (Z-Axis)
