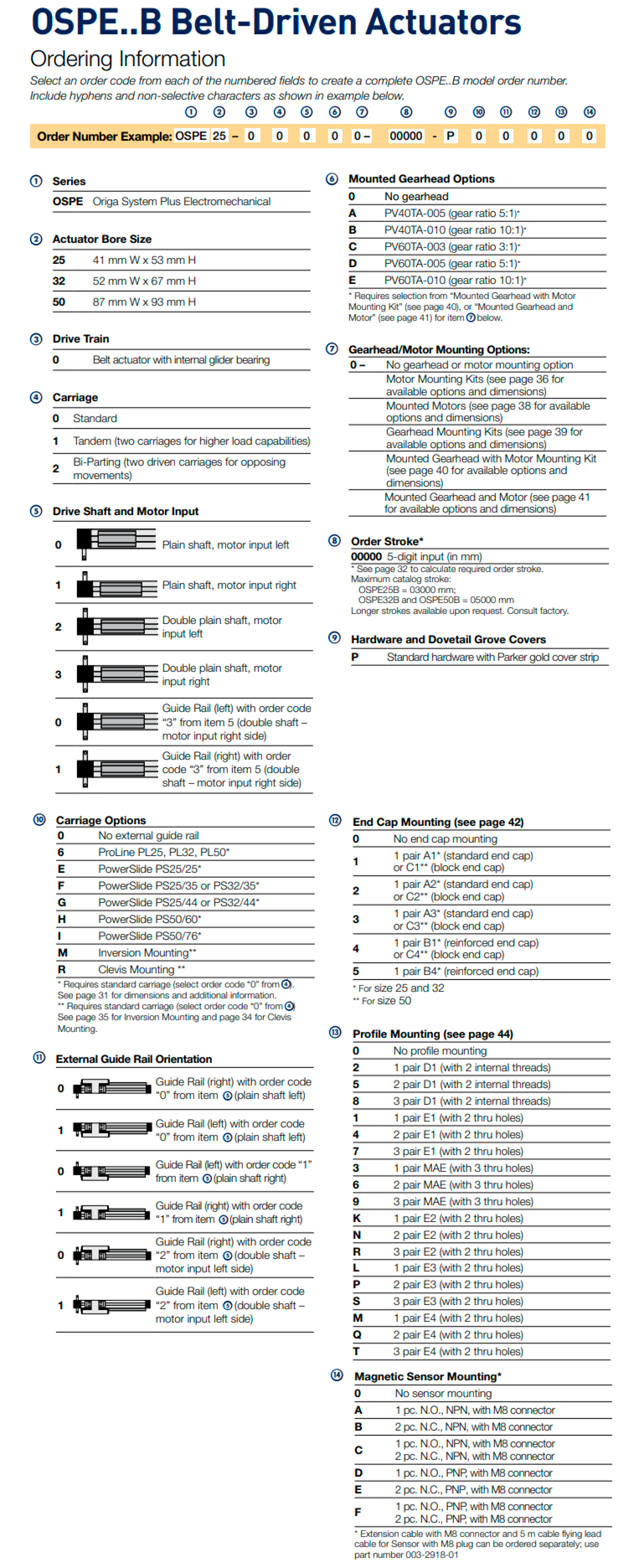

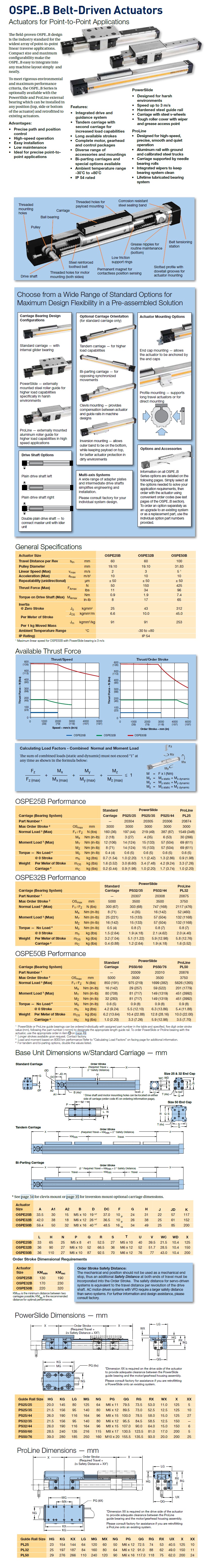

Description Ordering Information Specifications and Drawings


Parker: Belt Driven Linear Actuator (OSPE..B Series)OSPE25-00000-00000-P00000

(Actuators for Point-to-Point Applications)


The field-proven OSPE..B design is the industry standard for the widest array of point-to-point linear traverse applications. Compact size and maximum configurability make the OSPE..B easy to integrate into any machine layout simply and neatly.

To meet rigorous environmental and maximum performance criteria, the OSPE..B Series is optionally available with the PowerSlide and ProLine external bearing which can be installed in any position (top, side or bottom of the actuator) and retrofitted to existing actuators.


Advantages:

  • Precise path and position control

  • High-speed operation

  • Easy installation

  • Low maintenance

  • Ideal for precise point-to point applications


Features:

  • Integrated drive and guidance system

  • Tandem carriage with second carriage for increased load capabilities

  • Long available strokes

  • Complete motor, gearhead and control packages

  • Diverse range of accessories and mountings

  • Bi-parting carriages and special options available

  • Ambient temperature range -30˚C to +80˚C

  • IP 54 rated


PowerSlide

  • Designed for harsh environments

  • Speed up to 3 m/s

  • Hardened steel guide rail

  • Carriage with steel v-wheels

  • Tough roller cover with wiper and grease access point


ProLine

  • Designed for high-speed, precise, smooth and quiet operation

  • Aluminum rail with ground and calibrated steel trucks

  • Carriage supported by needle bearing rolls

  • Integrated wipers to keep bearing system clean

  • Lifetime lubricated bearing system


Model No: OSPE25-00000-00000-P000, OSPE32-00000-00000-P000, OSPE50-00000-00000-P000


Downloads:

OSP-E Series Catalogs
OSP-E Series CAD Drawings
OSP-E Series Operating Instructions
[VIDEO] OSP-E Series BHD Toothed Belt Electric Linear Actuator
