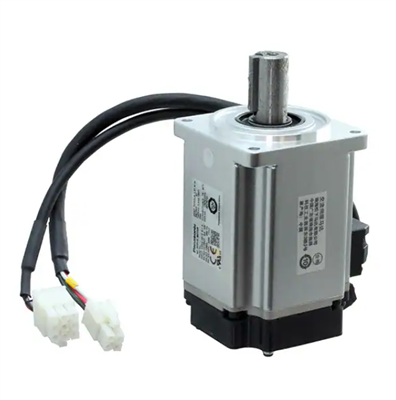

Panasonic: AC Servo Motors MINAS A6 Series MHMF082L1V2M - High Inertia, 750W

Home > AC Servo System >

Panasonic: AC Servo Motors MINAS A6 Series MHMF082L1V2M- High Inertia, 750W

Panasonic: AC Servo Motors MINAS A6 Series MHMF082L1V2M

Alternate View

Price : $625.00

Quantity in Stock:100

Availability: New stock in oversea warehouse
Order #: MHMF082L1V2M

Qty:

Description

Ordering Information

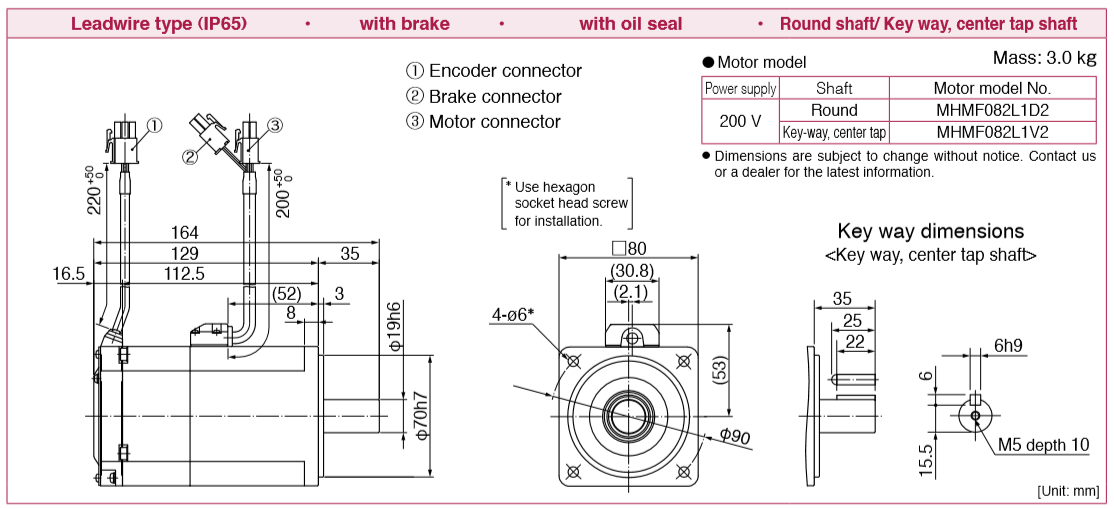

Specifications and Drawings

Panasonic: AC Servo Motors MINAS A6 Series MHMF082L1V2M - High Inertia, 750W

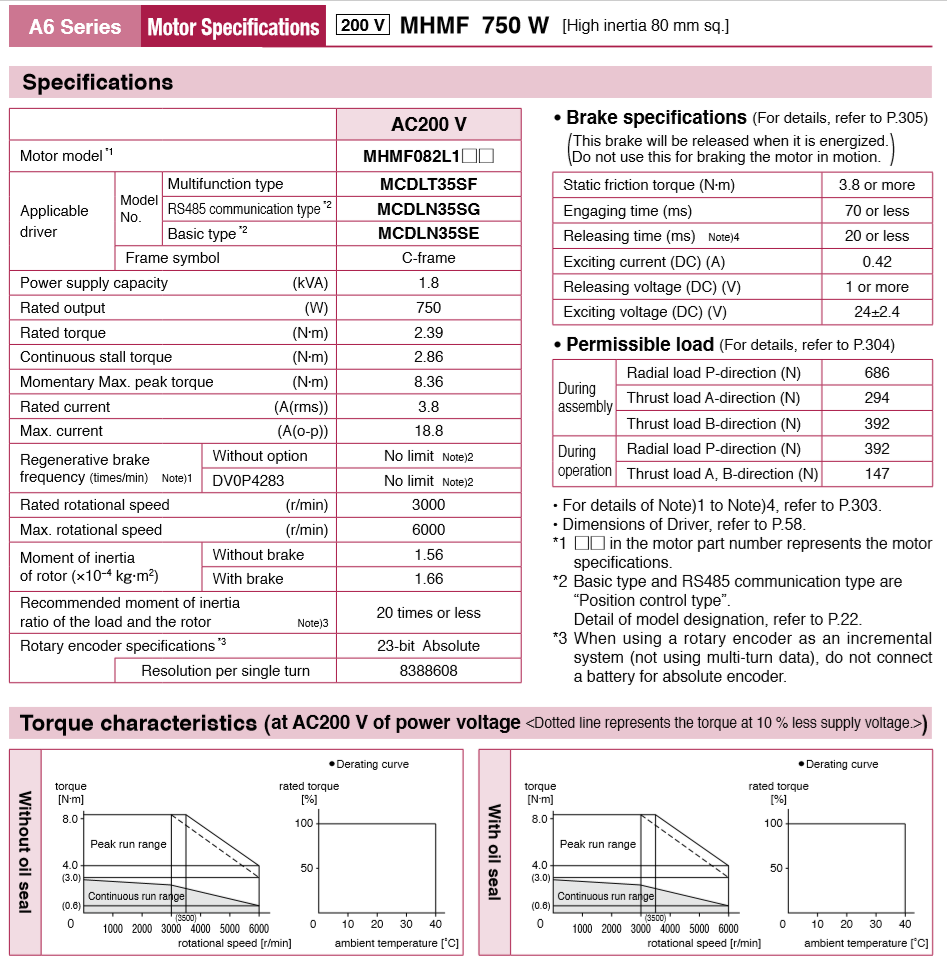

Motor Specifications:

Max. speed: 6000 r/min

Rated speed: 3000 r/min

Rated output: 750 W

Rated torque: 2.39 Nm

Max. current: 18.8 A

Rated current: 3.8 A

Encoder: 23-bit absolute (8388608 pulse)
Holding brake: with

IP65: Leadwire type

IP67: Connector type

Applicable Driver:

1) Multifunction Type: MCDLT35SF

2) Basic Type: MCDLN35SE

Support Links

MINAS A6 Series Datasheet

Share your knowledge of this product. Be the first to write a review »
