Nanotec: ST2818 – STEPPER MOTOR – NEMA 11
Nanotec: ST2818 – STEPPER MOTOR – NEMA 11




Price : $44.50

Price with Selected Options: $44.50


Availability: Usually Ships in 3 to 5 Days
Order #: ST2818


Model Number/Code*:

Qty:
Description Ordering Information Specifications and Drawings


Nanotec Electronic GmbH & Co KG

HYBRID STEPPER MOTOR – NEMA 11

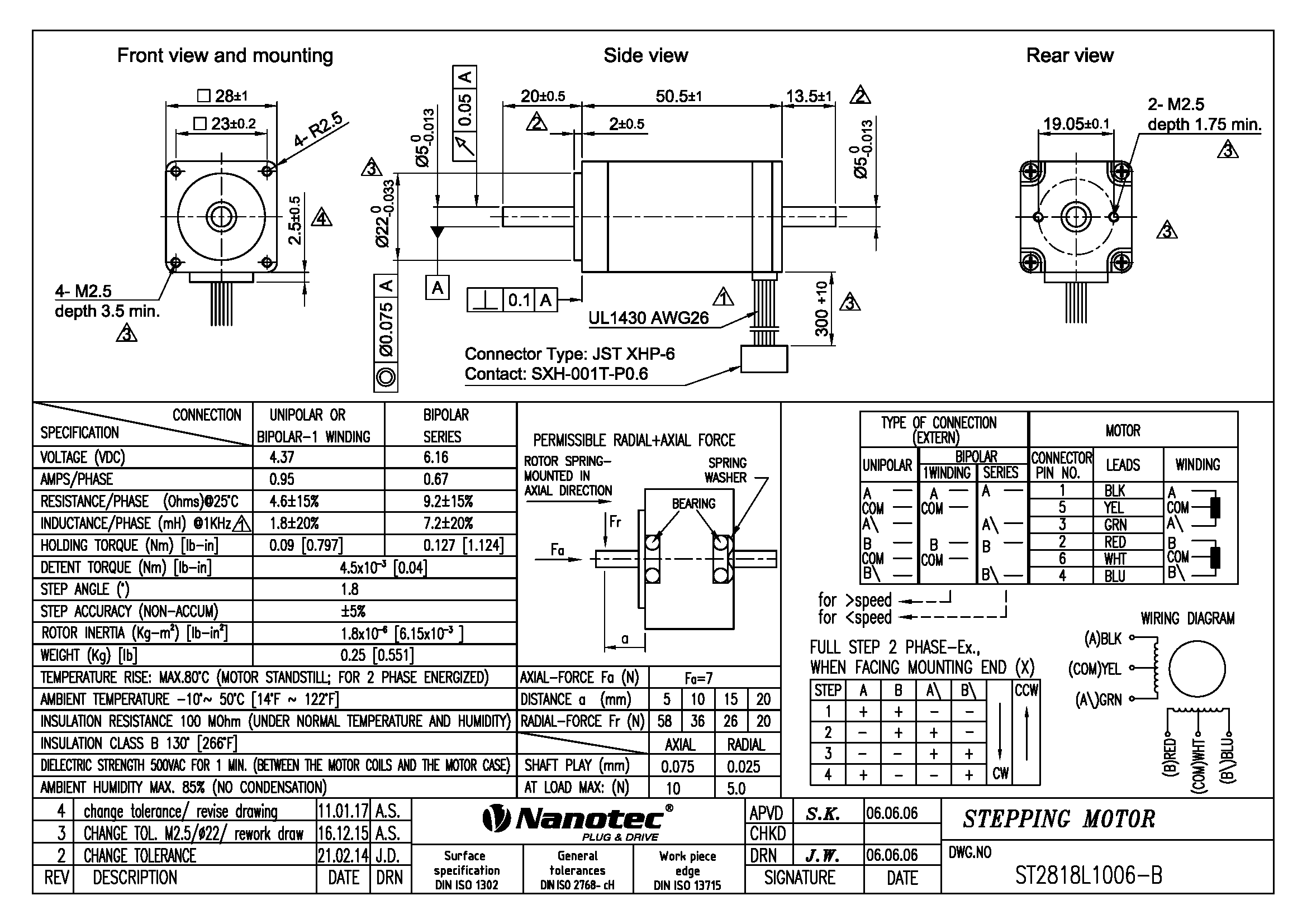

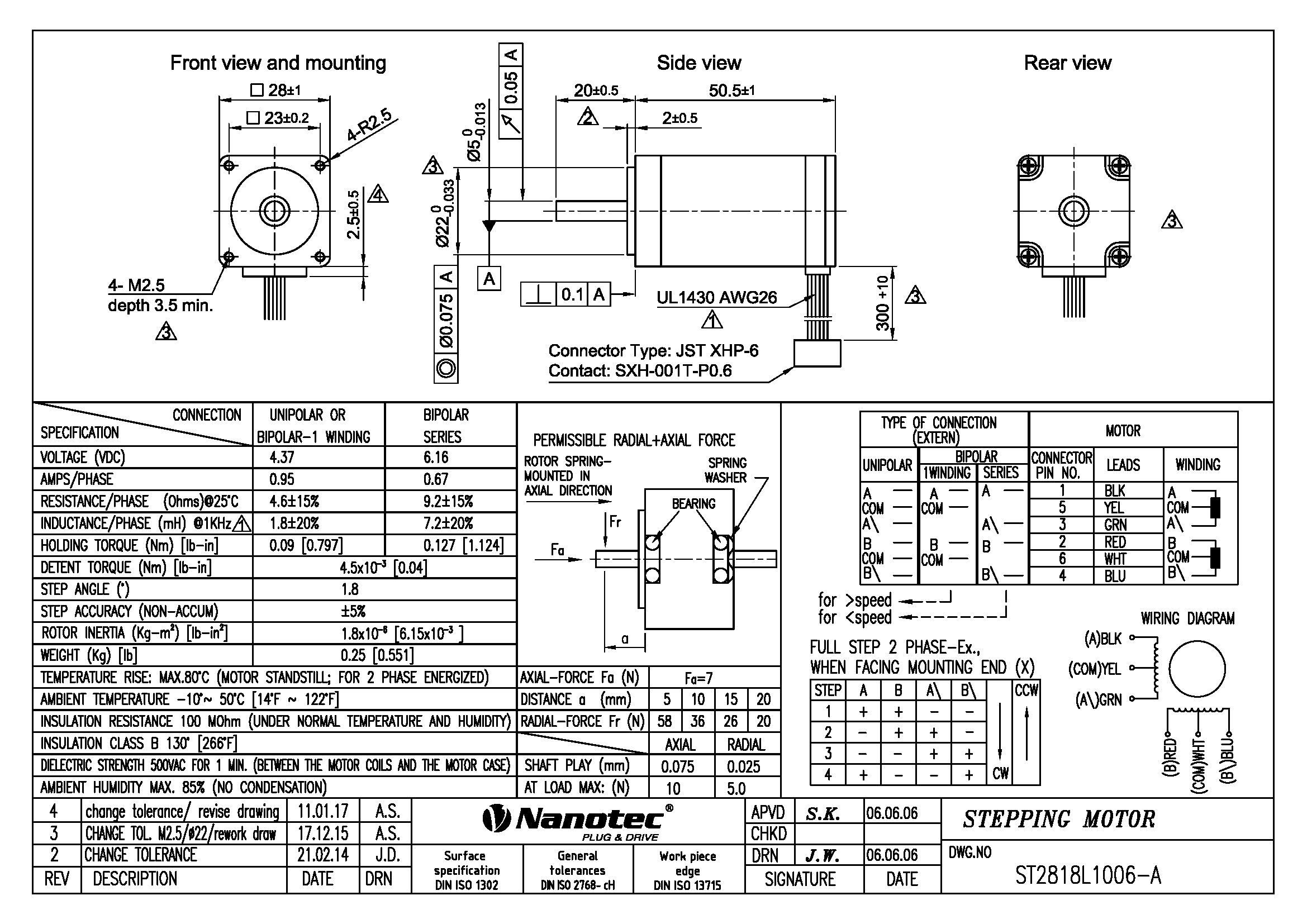

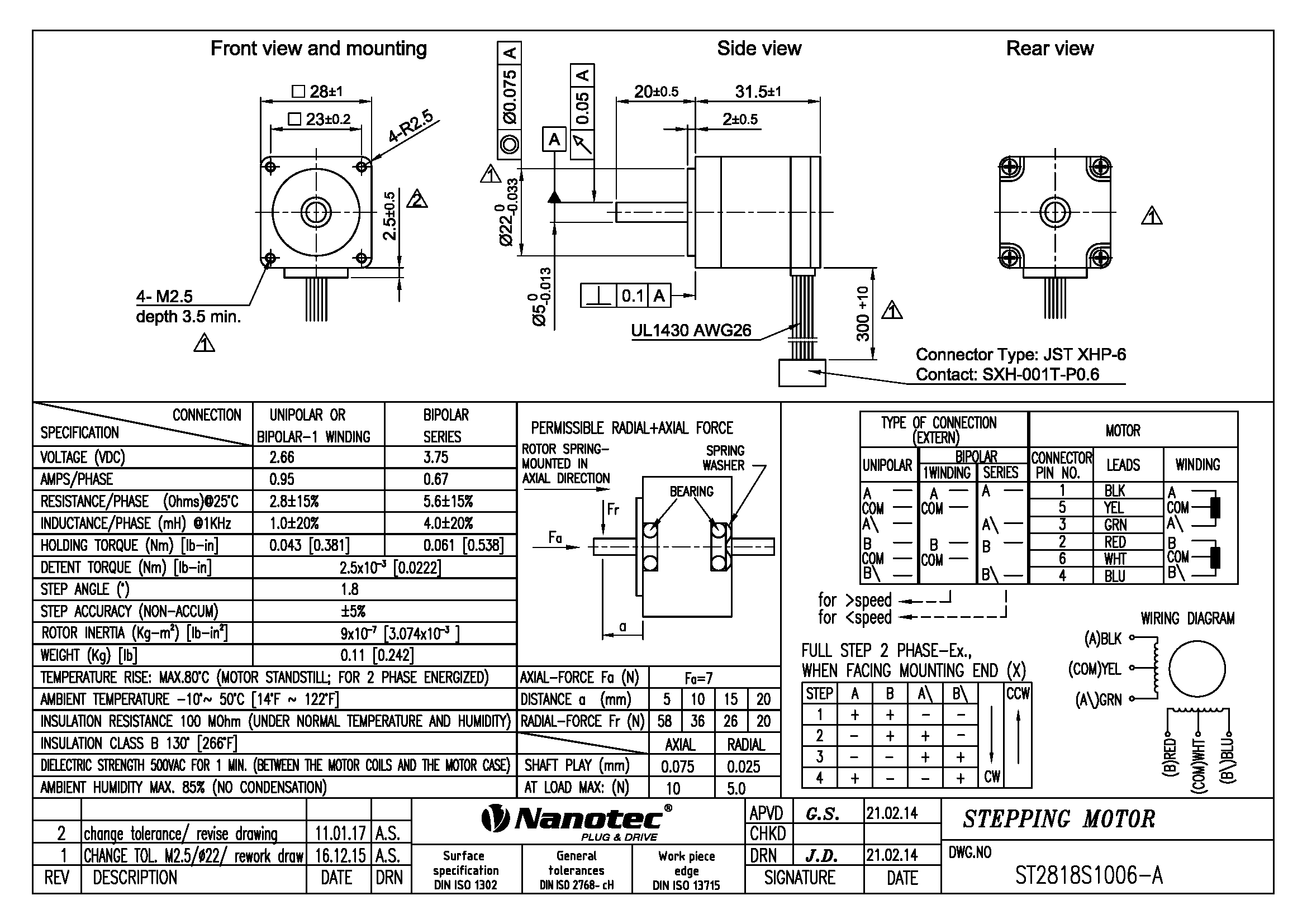

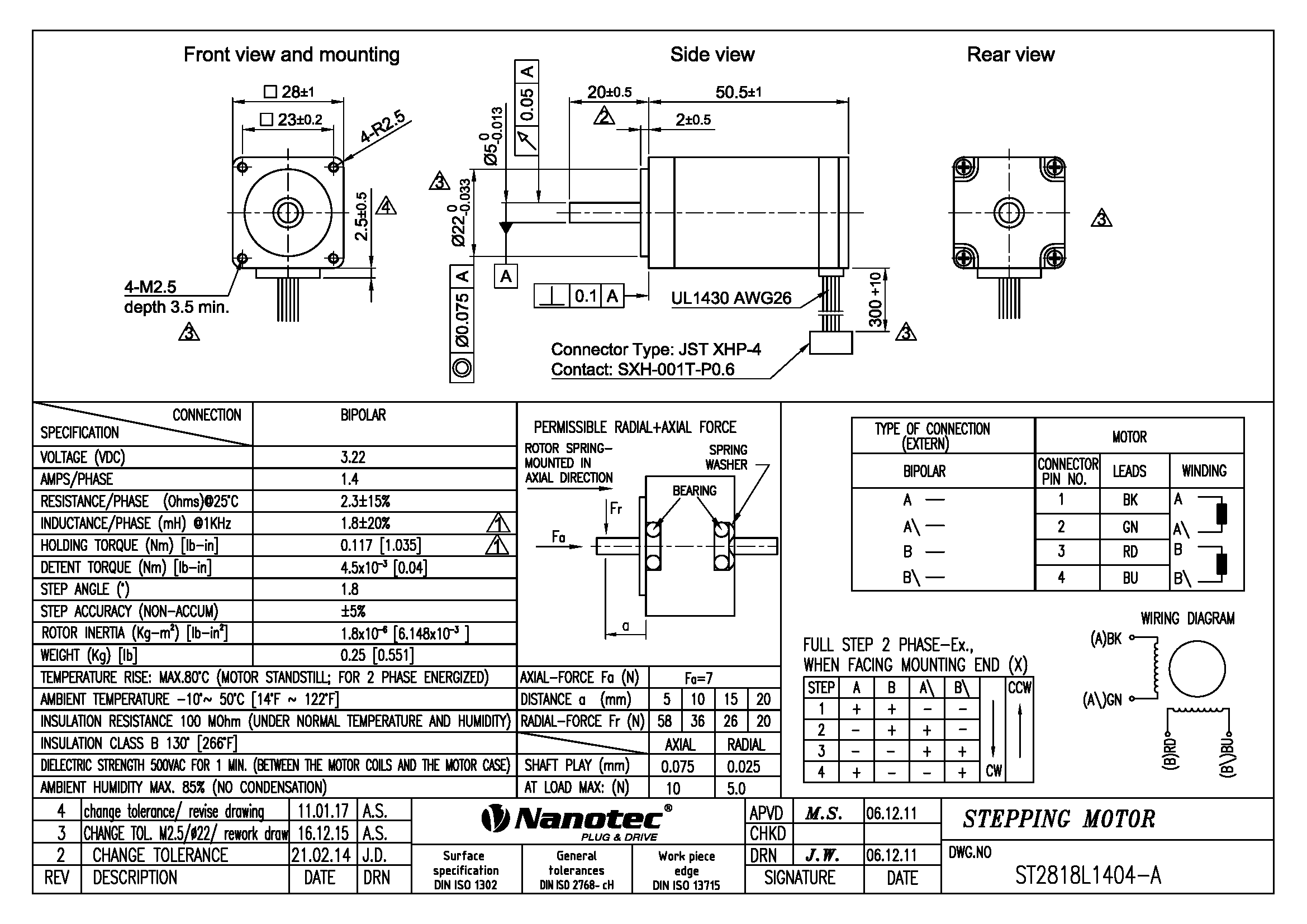

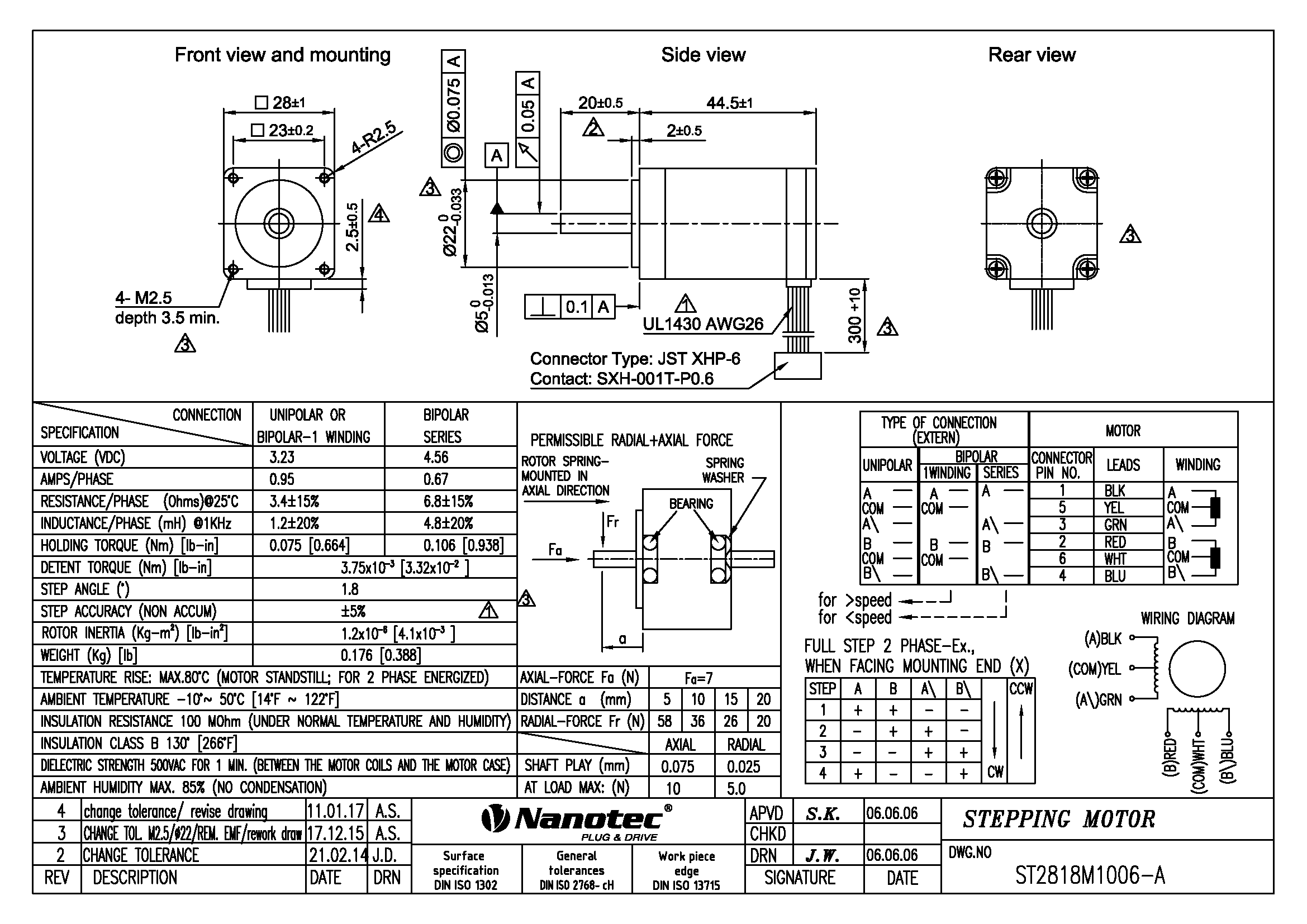

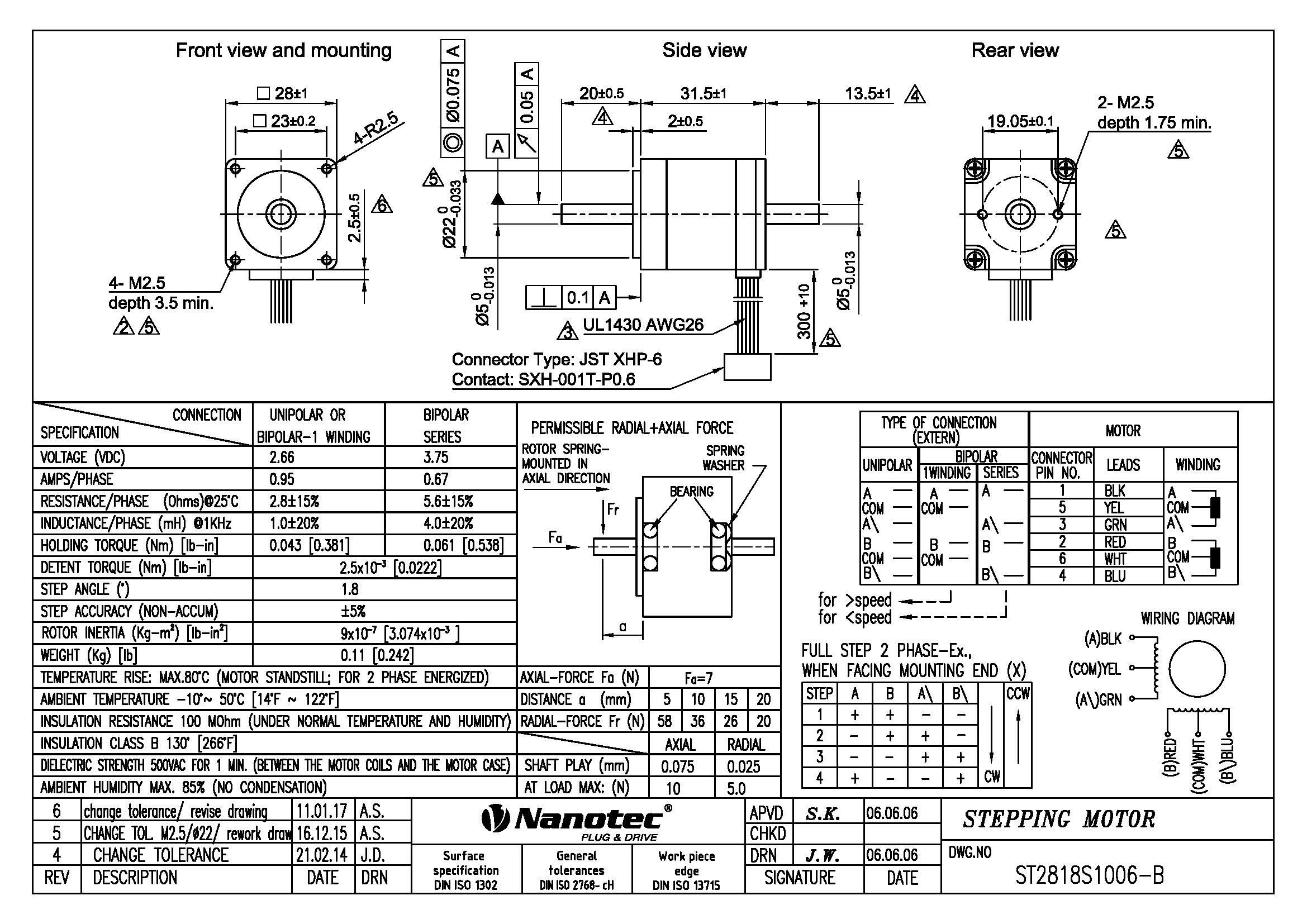

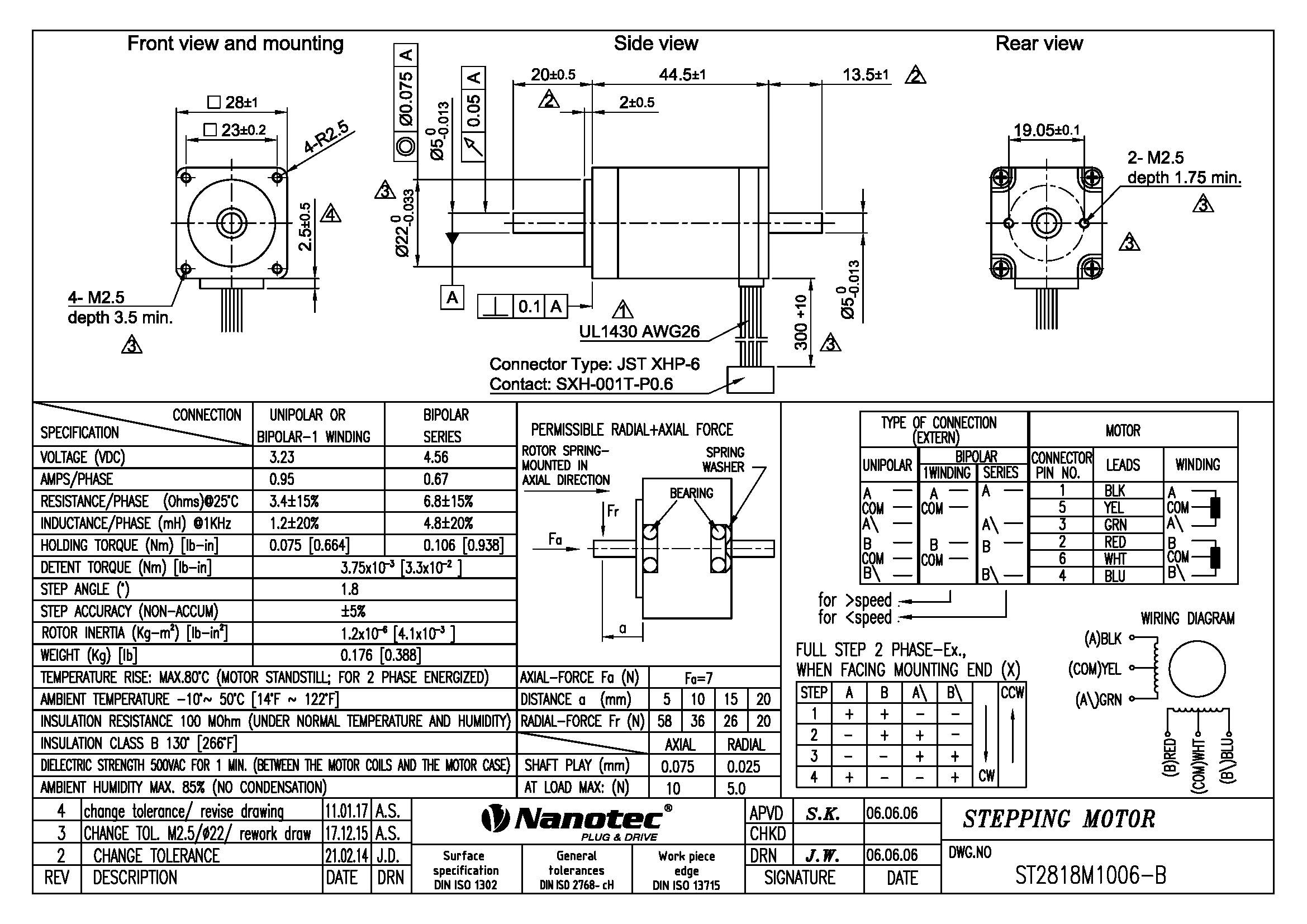

Stepper motor with 28 mm flange, 1.8° step angle and 6.08–12.73 Ncm holding torque. Length: 31.5–50.5 mm. ST2818L1006-A, ST2818L1006-B, ST2818L1404-A, ST2818L1404-B, ST2818M1006-A, ST2818M1006-B, ST2818S1006-A, ST2818S1006-B

  • Size1.1 in
  • NEMA11
  • Holding Torque8.61 oz-in - 18.03 oz-in
  • Current per Winding0.95 A - 1.4 A
  • Length "A"1.24 in - 1.99 in
