Mitsubishi Spindle Drive

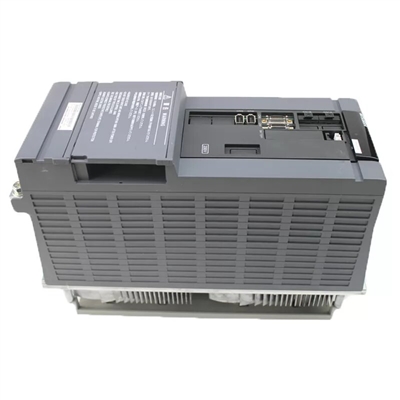

Mitsubishi Spindle Drive MDS-D-SPJ3-75



Alternate View


Call for Pricing

Price Quote Form
New condition

Core Exchange: Option

Repair: Not offering at this time



Availability: Usually Ships in 2 to 3 Weeks
Order #: MDS-D-SPJ3-75
.

Description Specifications and Drawings


MITSUBISHI MDS-D-SPJ3-75 CNC Spindle drive unit

MITSUBISHI Electric MDS-D-SPJ3-75 This is a MITSUBISHI Electric spindle drive unit that permits a CNC Machine-tools drive a MITSUBISHI AC Spindle motor with a max output capacity of 7.5 kW ( rated output from the spindle drive unit).

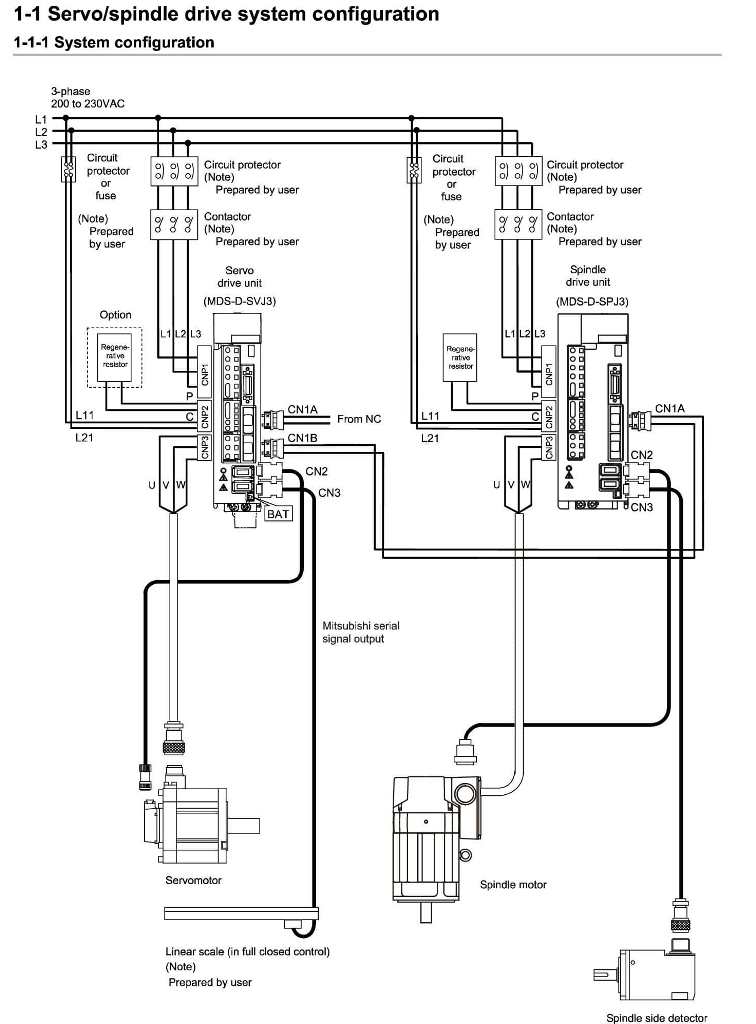

In systems which use a MITSUBISHI Electric MDS-D-SPJ3-75 Spindle drive unit, the spindle drive unit must be placed next to the power supply as shown in the connection manuals. Each units generates some heat, so leave a space on the top and bottom when installing other equipment or parts. The heating value for the spindle drive unit for during continuous rated output

MDS-D-SPJ3-75 CNC SPINDLE DRIVE UNIT reference form MITSUBISHI ELECTRIC MDS-D-SP-320. This MITSUBISHI ELECTRIC spindle drive MDS-D-SPJ3-75 is ready to replace your spindle drive and to be mounted on CNC machine tools such as transfer machines, milling machines and turning machines. All the MDS-D-SPJ3-75 have been tested by our skilled technicians before shipment on dedicated test benches.
