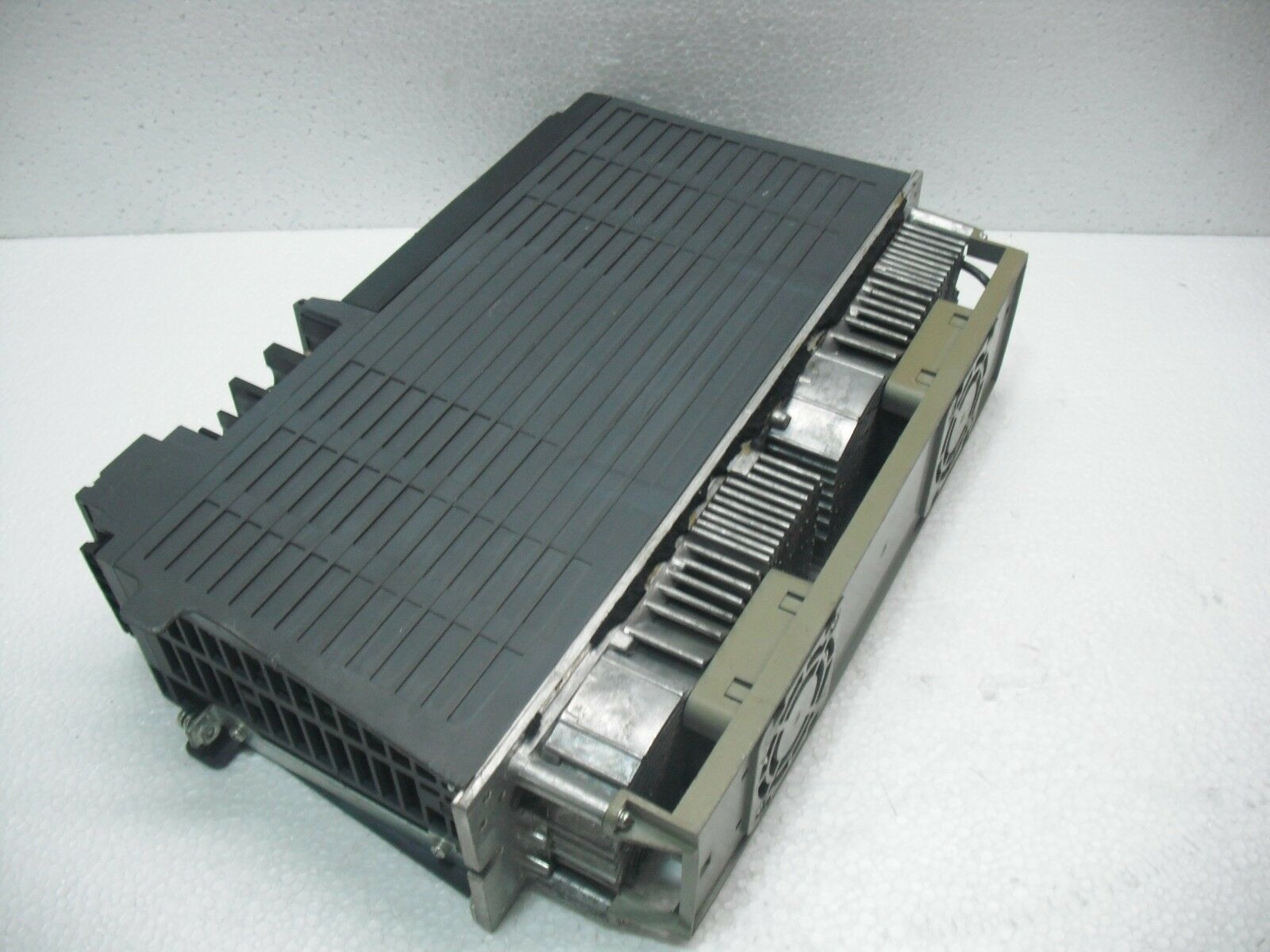

MITSUBISHI MDS-D-SP-40 CNC Spindle drive unit 40A

MITSUBISHI Electric MDS-D-SP-40(MDSDSP40 ) This is a MITSUBISHI Electric spindle drive unit that permits a CNC Machine-tools drive a MITSUBISHI AC Spindle motor with a max output capacity of kW ( rated output from the spindle drive unit).

MITSUBISHI Electric MDS-D-SP-40

DC270-311V :

AC200-230V :

MITSUBISHI Electric MDS-D-SP-40

In systems which use a MITSUBISHI Electric MDS-D-SP-40 Spindle drive unit, the spindle drive unit must be placed next to the power supply as shown in the connection manuals. Each units generates some heat, so leave a space on the top and bottom when installing other equipment or parts. The heating value for the spindle drive unit for during continuous rated output (190W).

MDS-D-SP-40 CNC SPINDLE DRIVE UNIT 40A reference form MITSUBISHI ELECTRIC MDS-D-SP-40. This MITSUBISHI ELECTRIC spindle drive MDS-D-SP-40 is ready to replace your spindle drive and to be mounted on CNC machine tools such as transfer machines, milling machines and turning machines. All the MDS-D-SP-40 have been tested by our skilled technicians before shipment on dedicated test benches.

A spindle drive unit that controls the high-speed synchronous tapping (OMR-DD control) has to be connected on the farther side from the NC than the servo drive unit that is subject to the synchronous tapping control

Spindle drive unit has no battery voltage drop warning function. Wiring to CN9 of drive unit must be always connected to servo drive unit.
