MITSUBISHI MDS-C1-SP-370 CNC Spindle drive unit.

The MDS-C1 Series incorporates a highly efficient heat dissipating structure, so the depth of the fin section is smaller than the MDS-A/B Series. Units with an "S" at the end of the type have a smaller unit width than the MDS-A/B Series. When designing the control panel with these unit outline dimensions, it may not be possible to mount the conventional drive unit.

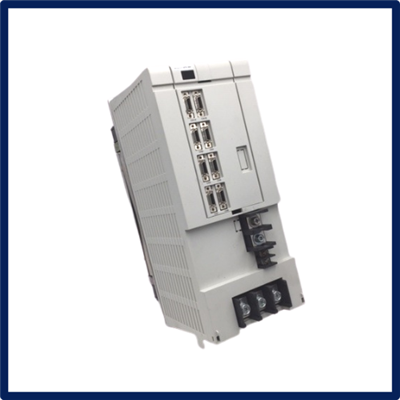

MITSUBISHI MDS-C1-SP-370 This is a MITSUBISHI MDS-C1-SP-370 spindle drive unit belonging to MDS series that permits a CNC Machine-tools drive a MITSUBISHI AC Spindle motor type IPM with a max output capacity of 37kW (97A rated output from the spindle drive unit).

MITSUBISHI Electric MDS-C1-SP-370 Rated input :

DC270-311V : 164A

AC200-230V : 0.2A

MITSUBISHI Electric MDS-C1-SP-370 Rated output :

3AC - 146A - 37kW

In systems which use a MITSUBISHI Electric MDS-C1-SP-370 Spindle drive unit, the spindle drive unit must be placed next to the power supply as shown in the connection manuals. Each units generates some heat, so leave a space on the top and bottom when installing other equipment or parts. The power supply unit capacity is determined by the motor output, and the spindle drive unit capacity is determined by the motor characteristics
