M2I: HMI Solution Touch Operation Panel TOP3SAE
M2I: HMI Solution Touch Operation Panel TOP3SAE



Alternate View
Price : $598.00


Availability: 1 in Stock
Order #: TOP3SAE
Qty:

Description Specifications and Drawings

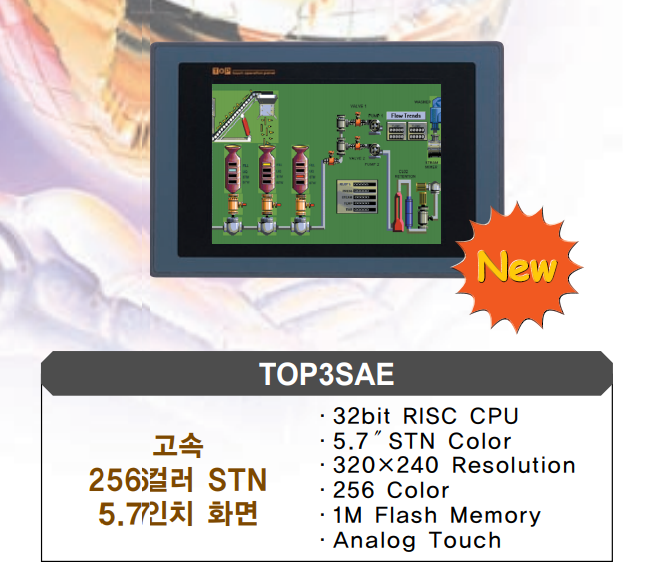

M2I: Industrial HMI Solution Touch Operation Panel TOP3SAE

Established in 1999, M2I Corporation manufactures and exports HMI SYSTEM industrial automation application and other automation application such as information service system and building automation system.
TOP A standard features: High speed graphic processing by 32 Bit RISC Processor, flash memory for saving screen data, and slim design.

Specifications:
  • Display: 5.7" STN Color
  • Display area size: 115.2 mm x 86.4 mm
  • Input Voltage: 24V (20V--28V)
  • Power: 12 W
  • Dimension: 206 mm x 136 mm x 65 mm
  • Two serial ports: RS-232C and RS-422/485.
  • Support 256 colors .
  • IP 65F waterproof type in front vessel.
