LUGE:AC Permanent Magnet Synchronous Wheel Hub Gearmotor (PMSMWHG)

Description

The LUGE-GM series wheel hub gear motor is available air-cooled and in 3 sizes: Diameter 194, 216, 245mm, gear ratio i=4,7,16,24,42,96; the power range is from 1700 W to 8 kW, Max. wheel load (radial power) 700kg, output speed 12-1600rpm, output rated torque up to 160Nm, output peak torque 500Nm, forced cooling with at least 6m/s air flow
IP 65.

Optionally available integrated wheel hub drives supplement the engine to the drive axle and allow a large number of variants in two sizes and countless transmission levels.

Advantage

1. Direct mounting in the wheel – no wheel bearings necessary
2. Compact design, maximum efficiency
3. Transmissions from i=4 to i=96 available
4. Suitable for single-wheel drive or four-wheel drive
5. Output torques up to 500 Nm
6. Output speeds up to 1600 rpm
7. Wheel loads up to 700 kg
8. DC voltages from 24 VDC - 560 VDC

LUGE provides here brushless synchronous disc motor for traction applications in axial flux technology (pancake motor). The LUGE-M series motor, specially designed for traction applications, can be used in a wide range of battery-powered applications, such as

 Municipal technology
Sweepers
Slope mowers
Transport vehicles
Gangway drive

 Logistics
Unmanned transport systems
Heavy load transport systems
Mobile robots
Mecanum vehicles
Forklift trucks and transporters

 Agricultural Machines
Harvesters
Field robots
Stable robots
Mowers and vehicles
Wind technology
Electric lawn mowers

 Two-wheeled vehicles
E-scooters
Cargo bikes

Leisure/Leisure Vehicles
Go-Karts
Golf Carts
Leisure park vehicles
Rehab vehicles

 Other applications
Compressor technology
Wind technology
Hybrid applications
Generators
Electric boats
and many other applications

This achievement is based on the high level of flexibility that is needed to provide customized motor. The individual winding design, the flat rotor and the housing for very compact motor are an example. The Luge-M motor can be combined with different gearboxes and brakes. Suitable motor controllers with regenerative braking are available in a wide power- and voltage range. LUGE guarantee the highest quality standards. Our products have been developed for meeting the demand in industrial and automotive applications.

Features / Benefits
 Axial magnetic flux design
 Very compact, flat construction
 High power density and high efficiency
 Air- or Liquid cooled
 Reduced diameter and length
 Excellent torque / weight / volume ratio
 High overload capability
 Customized solutions possible

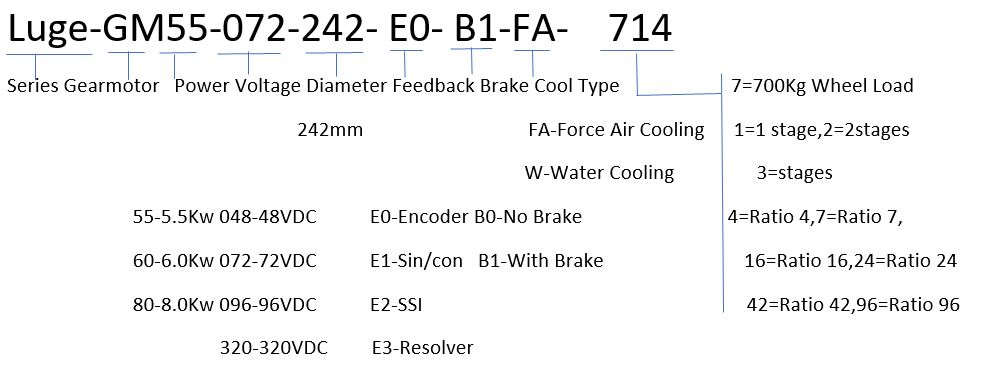

• Model Designation

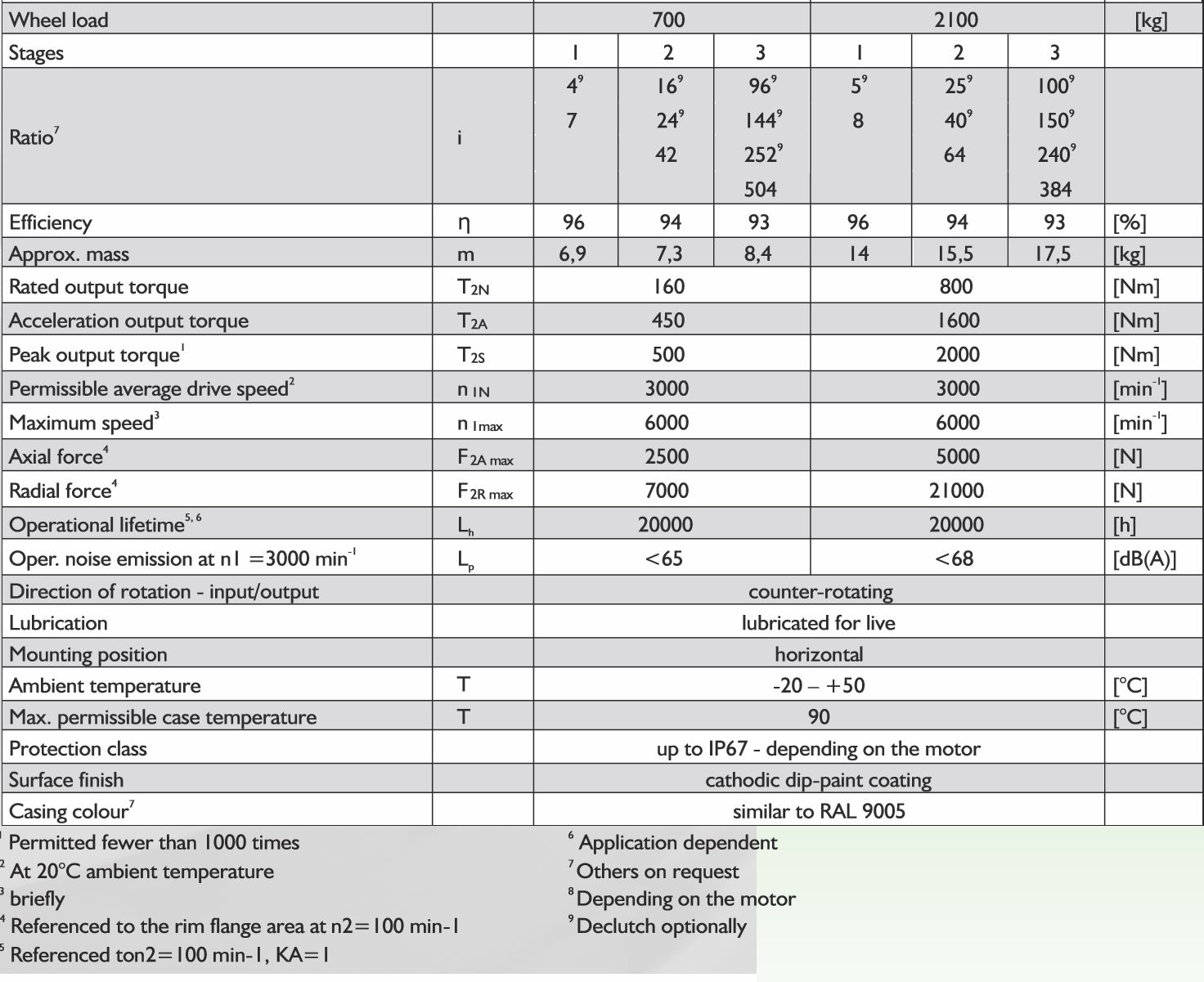

Gearhead Technical Data and Specification

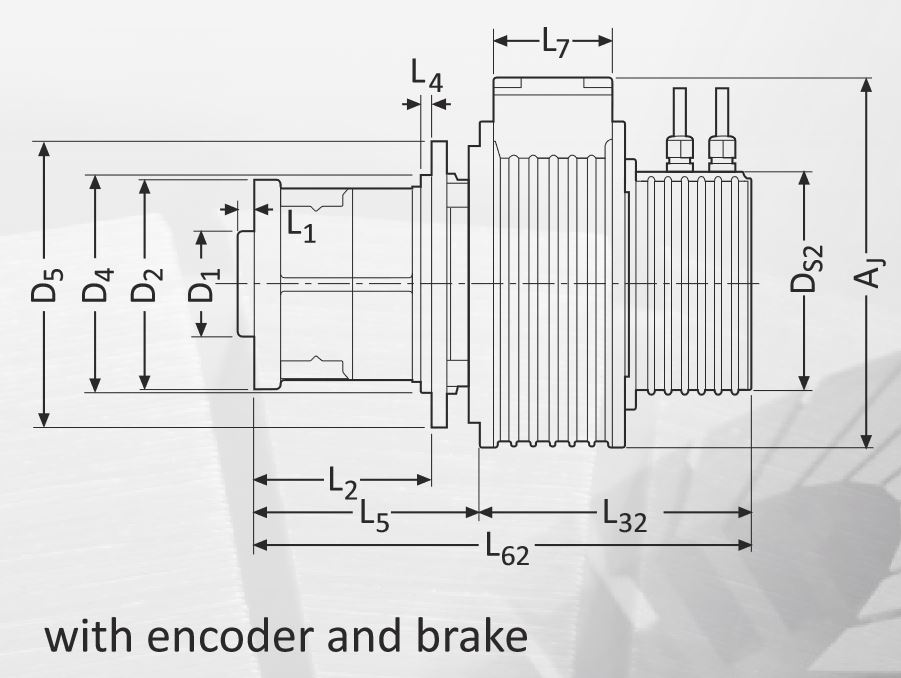

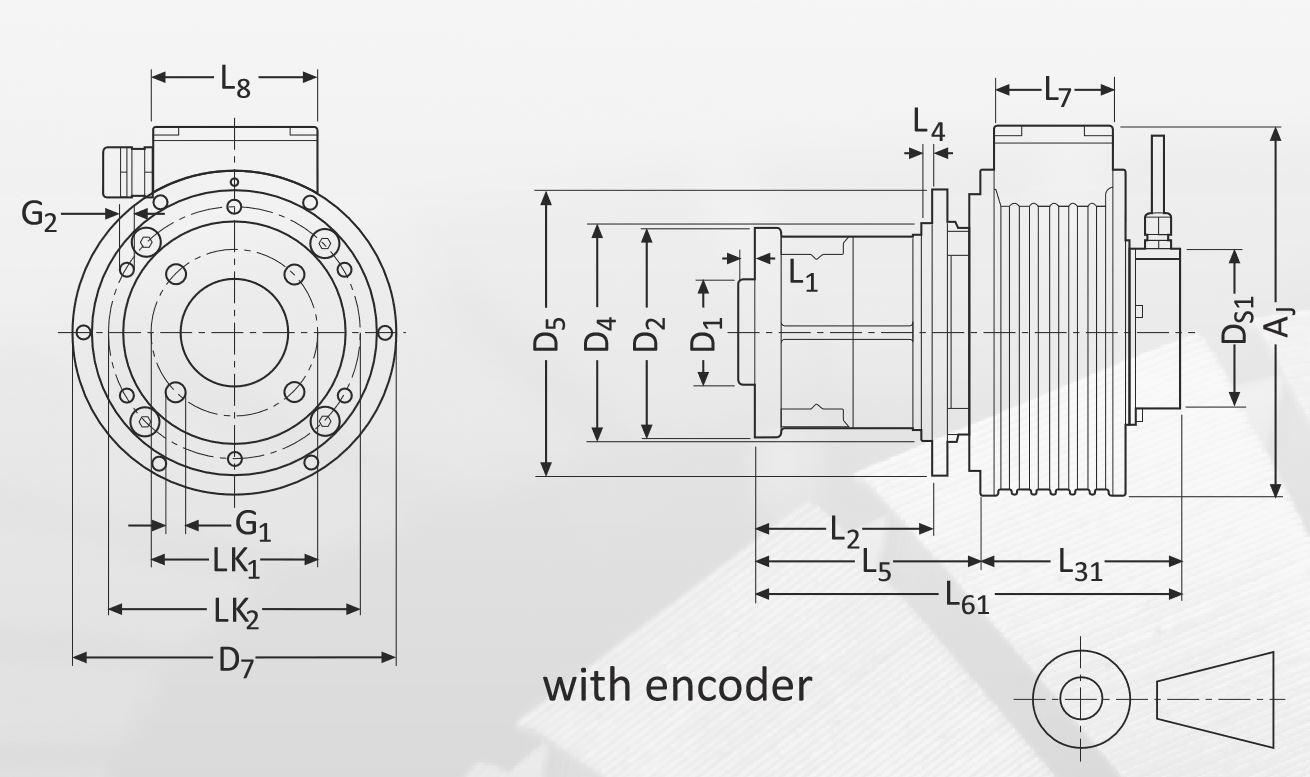

Wheel Hub Gearmotor Drawing

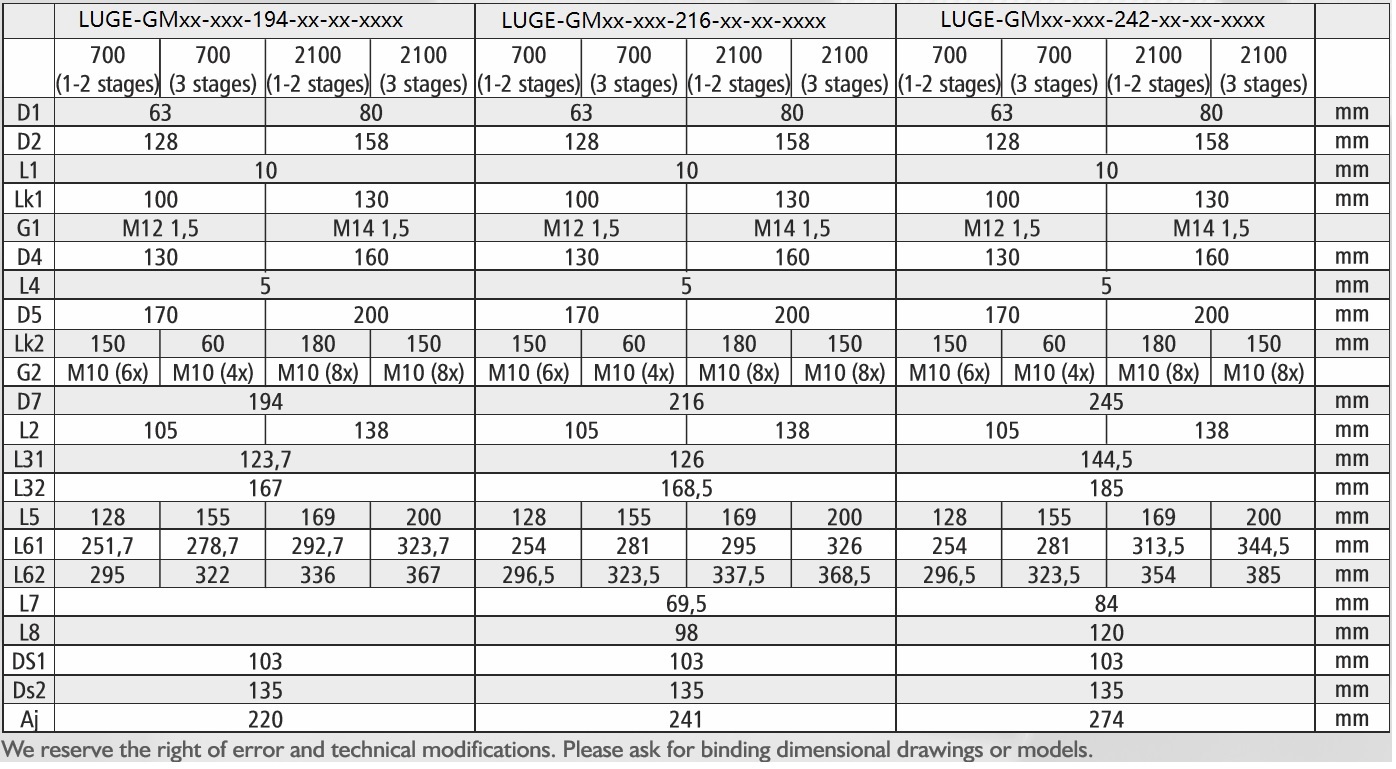

Wheel Hub Gearmotor Dimension

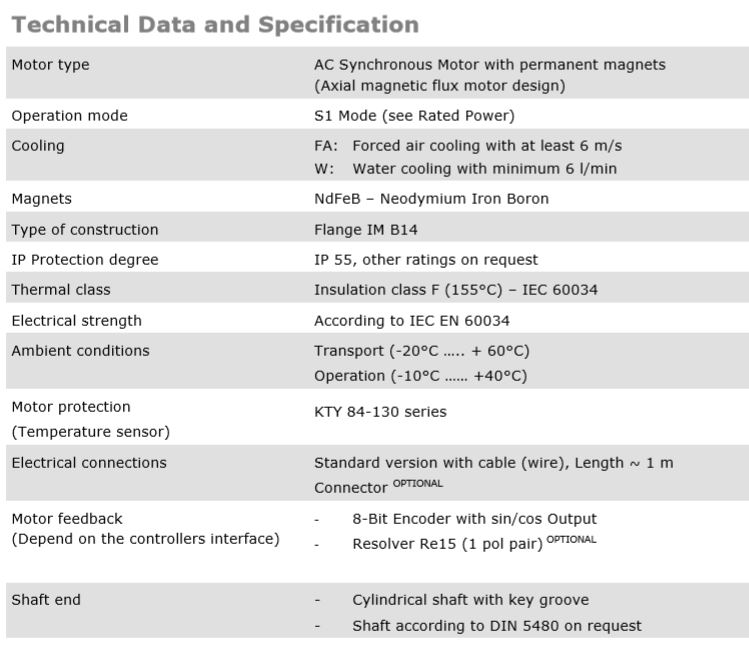

Motor Technical Data and Specification

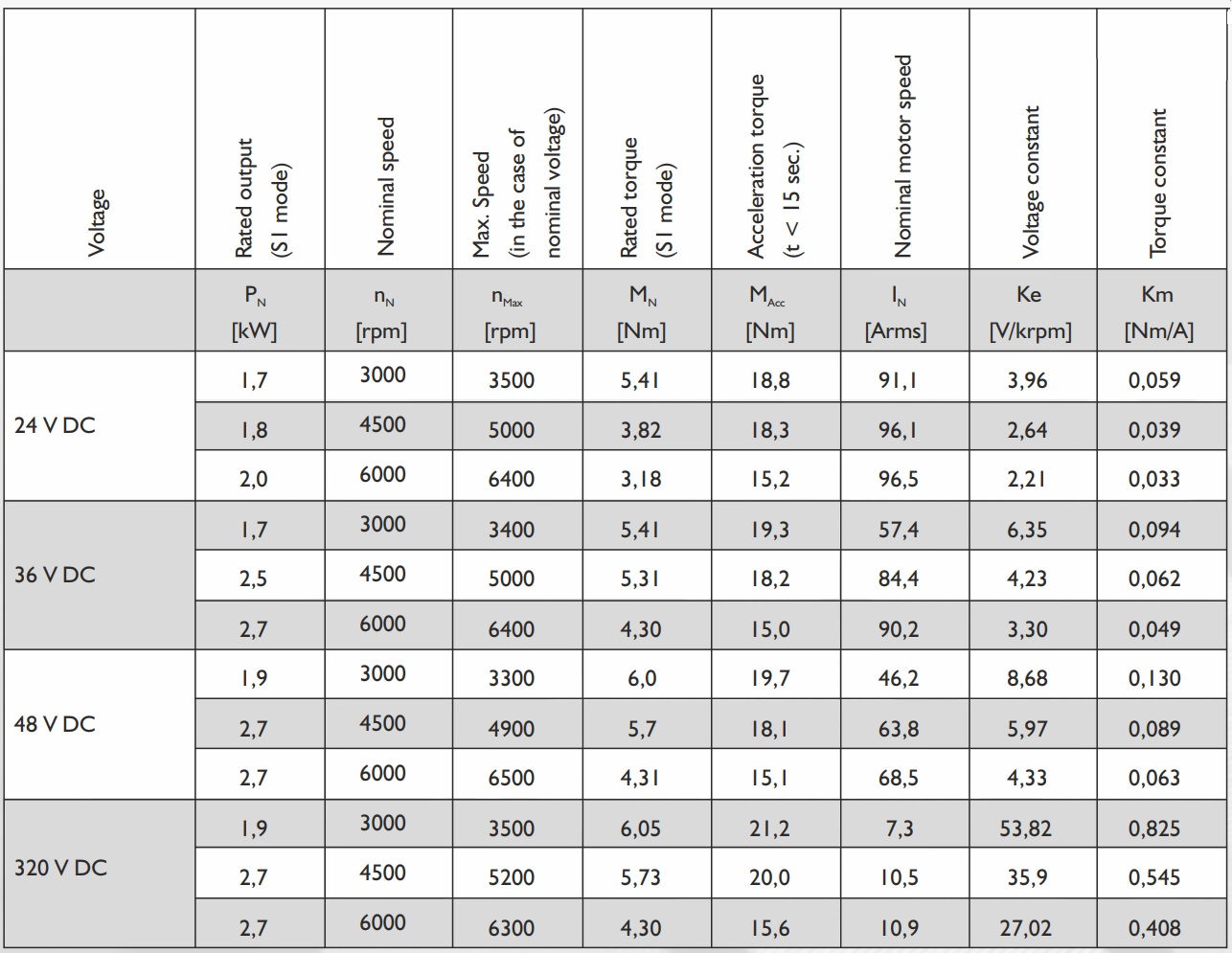

LUGE-Mxx-xxx-194 Series
Forced air-cooled Cooling: Forced air-cooling with at least 5 m/s · weight: ~6,9 kg · diameter: 194 mm

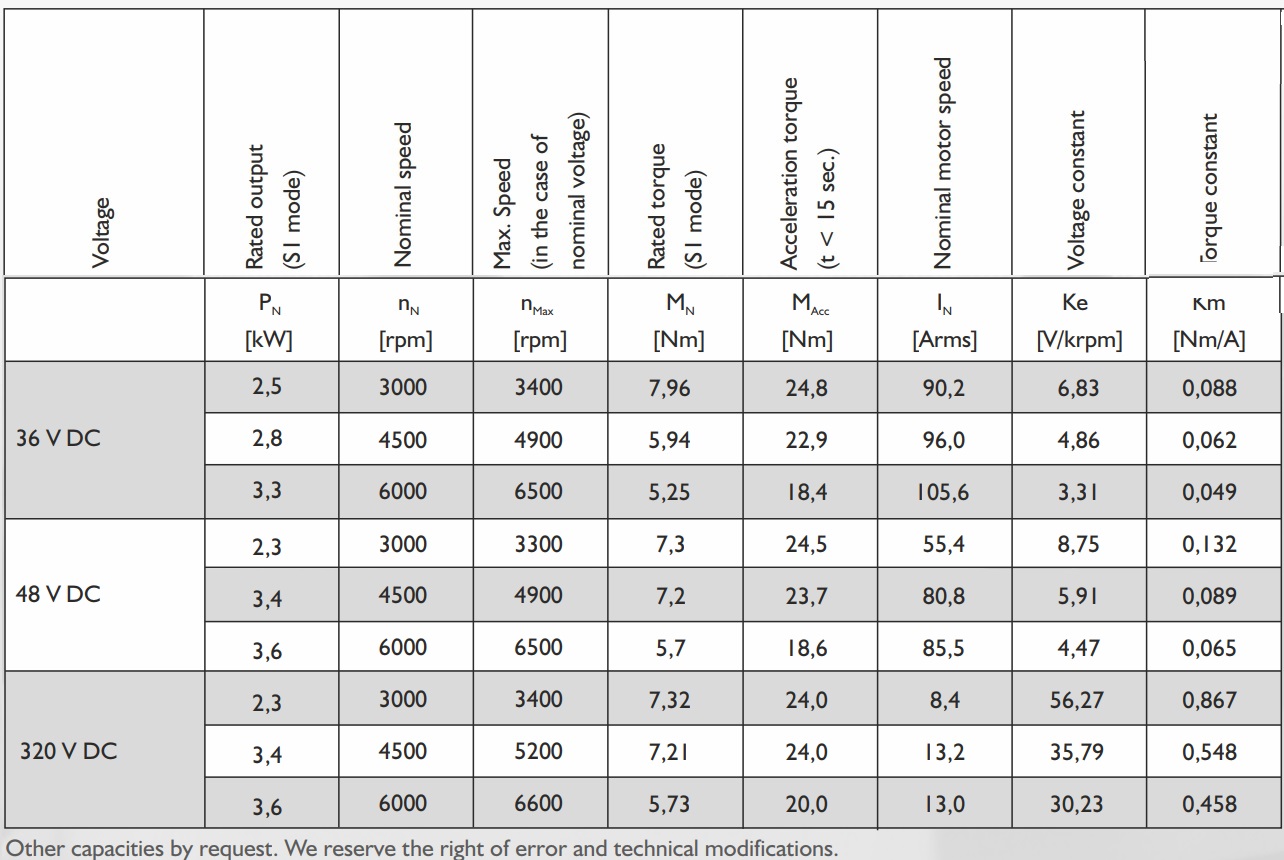

LUGE-Mxx-xxx-216 Series
Forced air-cooled Cooling: Forced air-cooling with at least 5 m/s · weight: ~8.5 kg · diameter: 216 mm

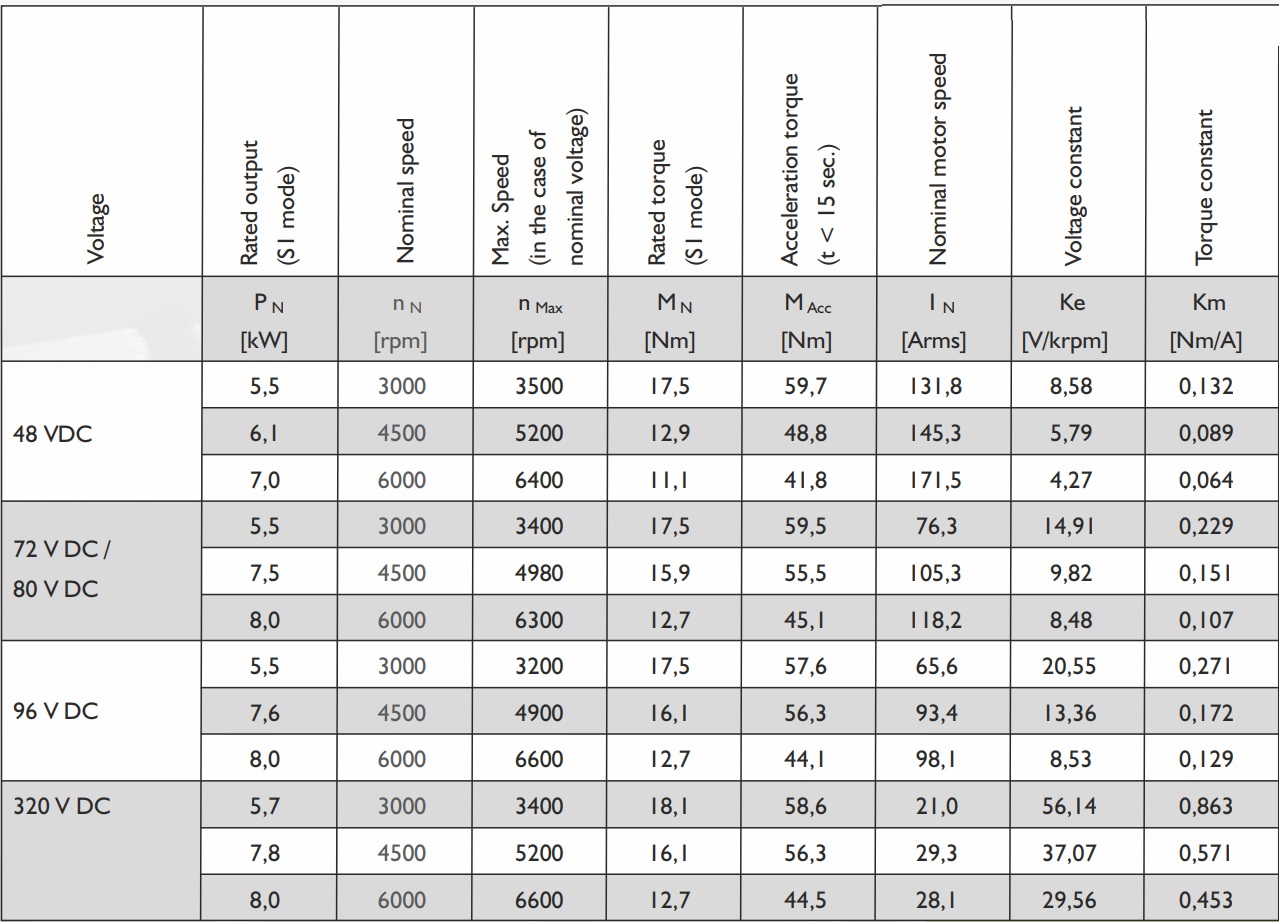

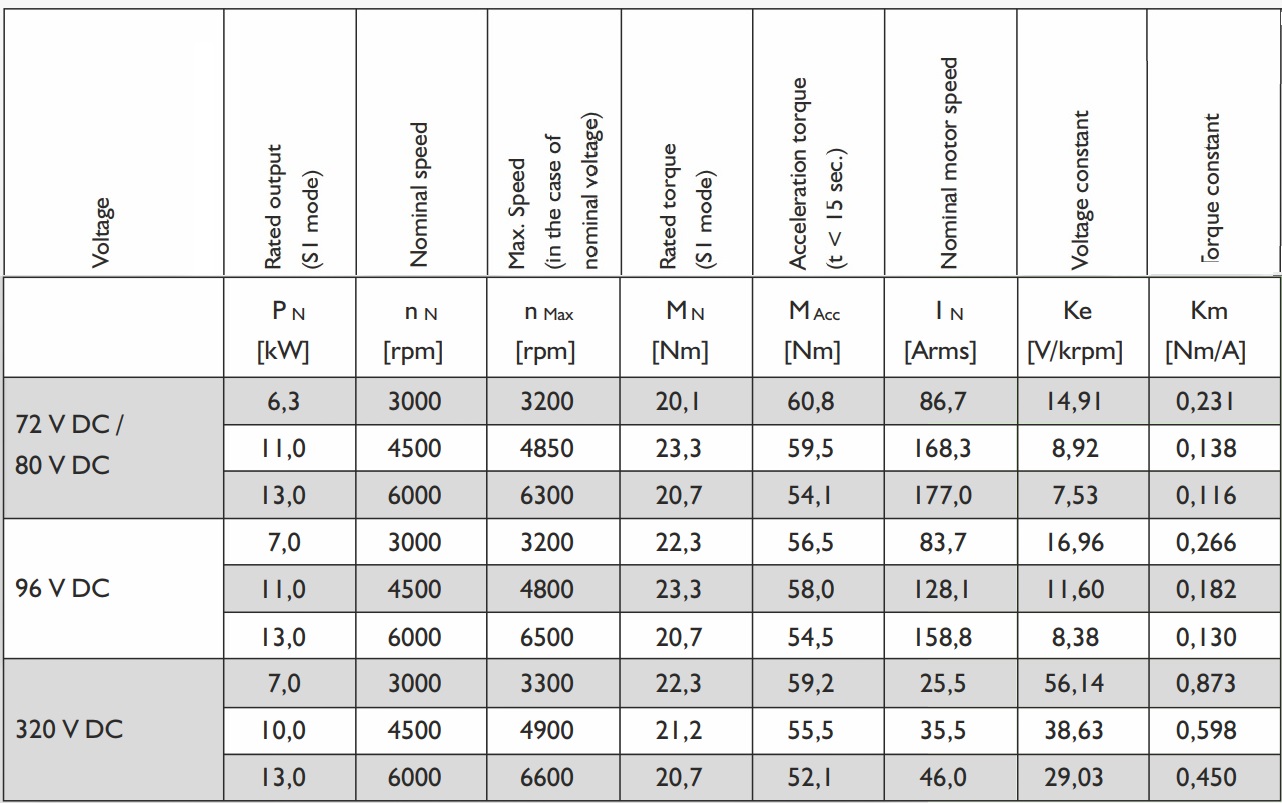

LUGE-Mxx-xxx-245 Series
Forced air-cooled Cooling: Forced air-cooling with at least 6 m/s · weight: ~15.7kg · diameter: 242 mm


LUGE-Mxx-xxx-245 Series
Cooling: Water-cooling with at least 6 l/s flow rate weight:~17,8 kg diameter: 245 mm

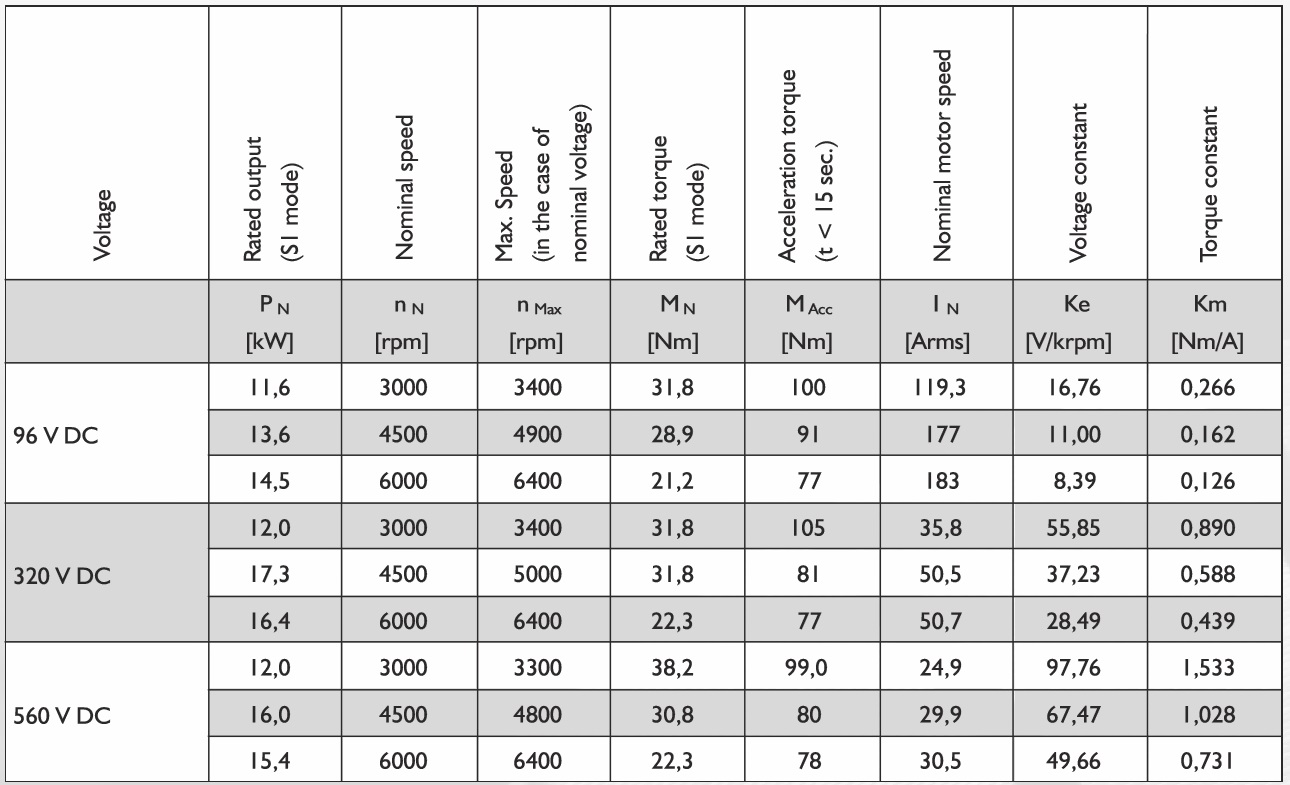

LUGE-Mxx-xxx-284 Series
Cooling: Forced air-cooling with at least 6 m/s weight: ~28,2 kg diameter: 282 mm

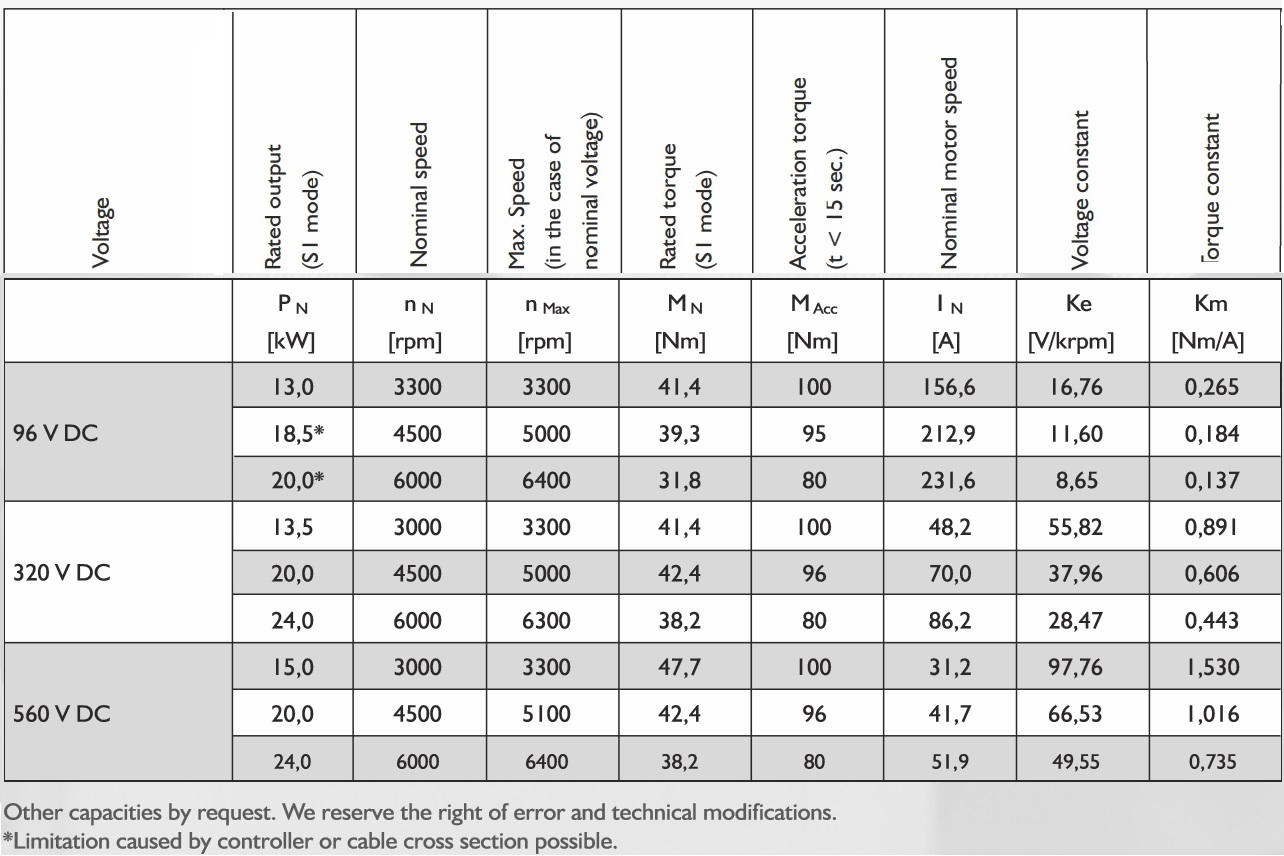

LUGE-Mxx-xxx-284 Series
Cooling: Water-cooling with at least 8 l/s flow rate weight: ~33,5 kg diameter: 284 mm

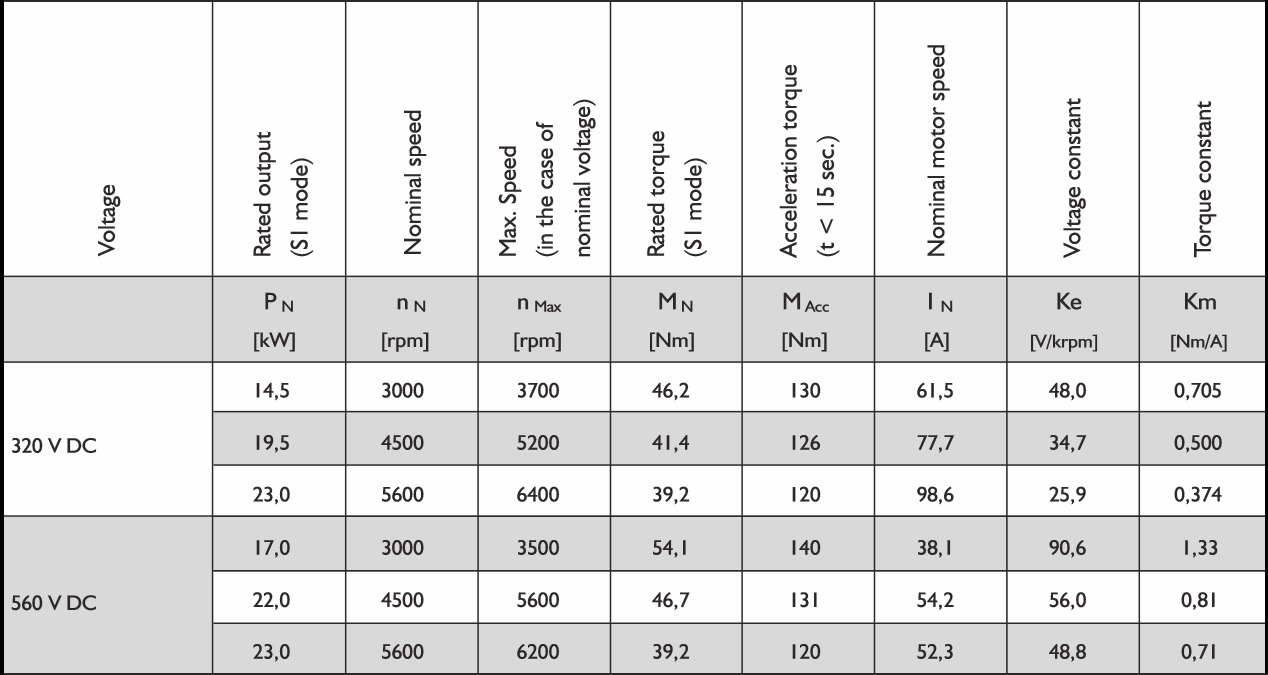

LUGE-Mxx-xxx-310 Series
Cooling: Forced air-cooling with at least 8 m/s weight: ~36,9 kg diameter: 310 mm

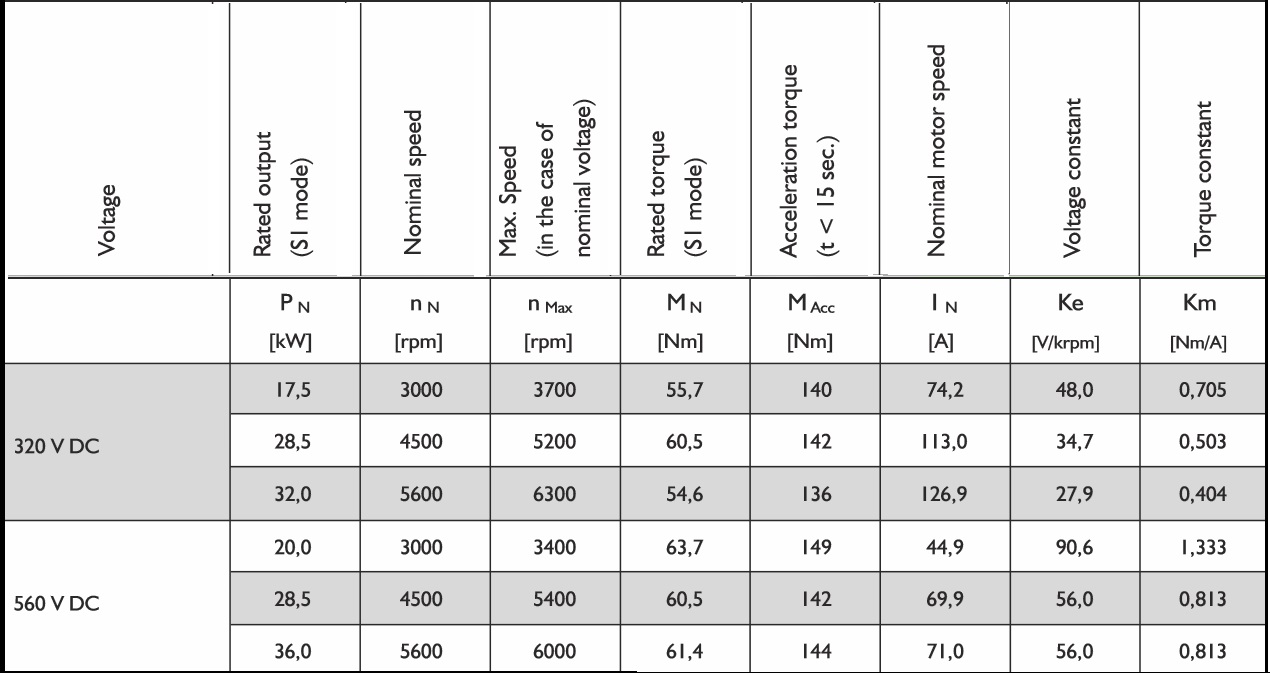

LUGE-Mxx-xxx-310 Series
Cooling: Water-cooling with at least 8 l/s flow rate weight: ~43,2 kg diameter: 310 mm

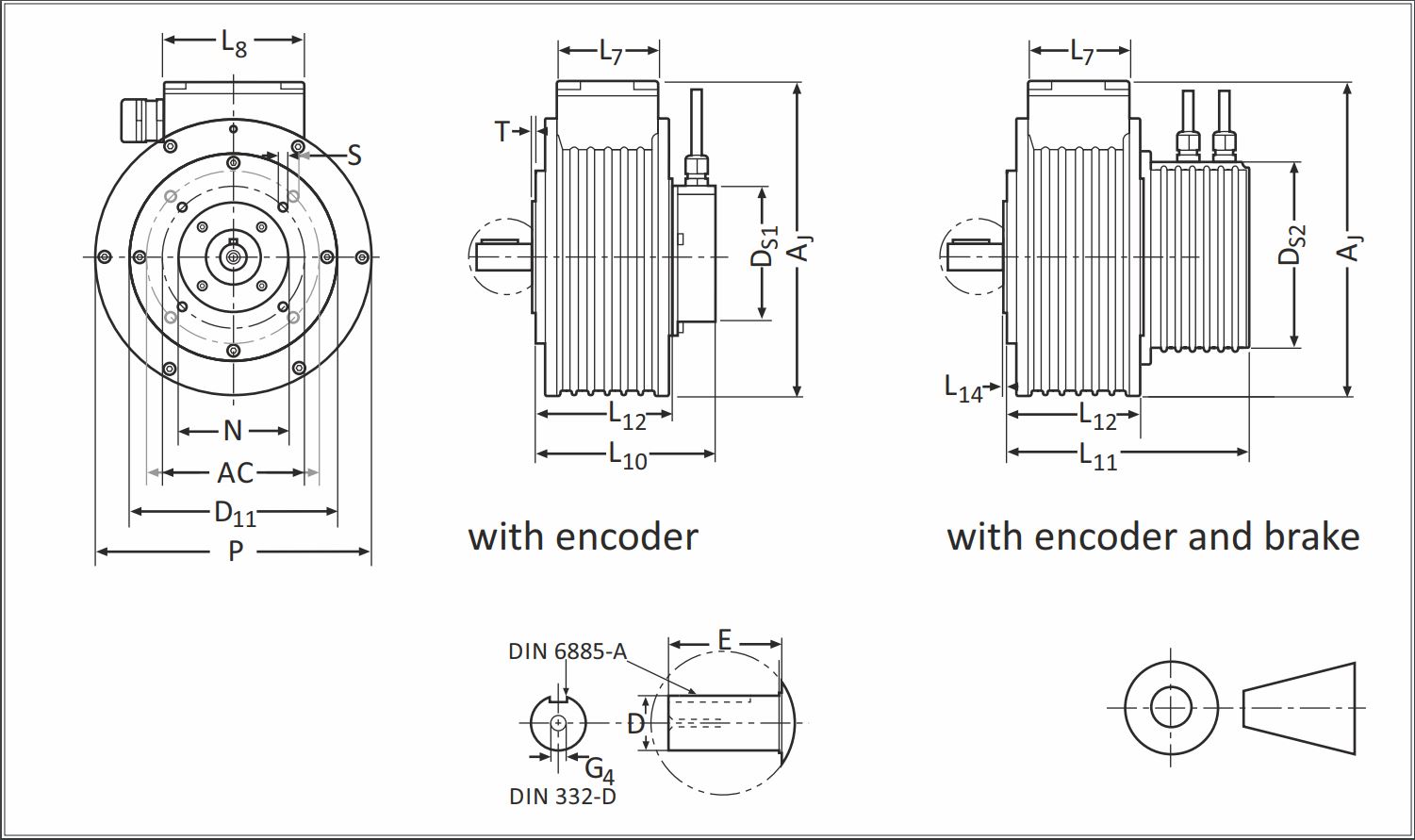

LUGE-M Series Motor Drawing

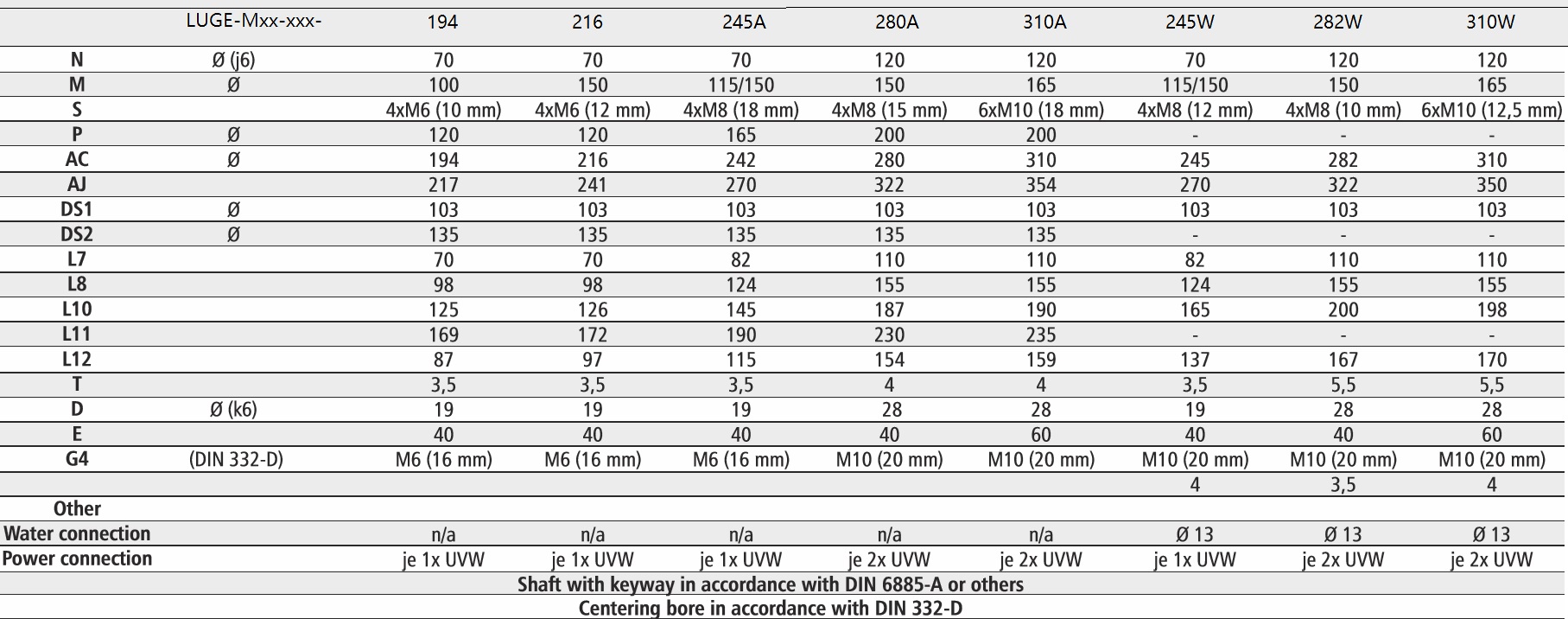

LUGE-M Series Motor Dimension
