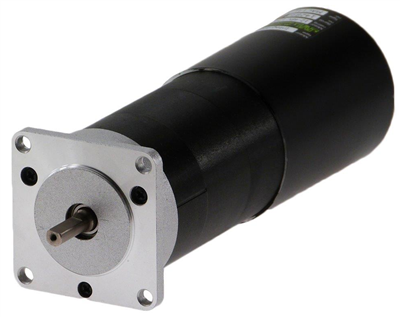

JVL: Integrated Servomotor with New Functionality MAC140-F

Generation 3 MAC140/141 motor - with new generation of encoder with unlimited down time, no battery required!

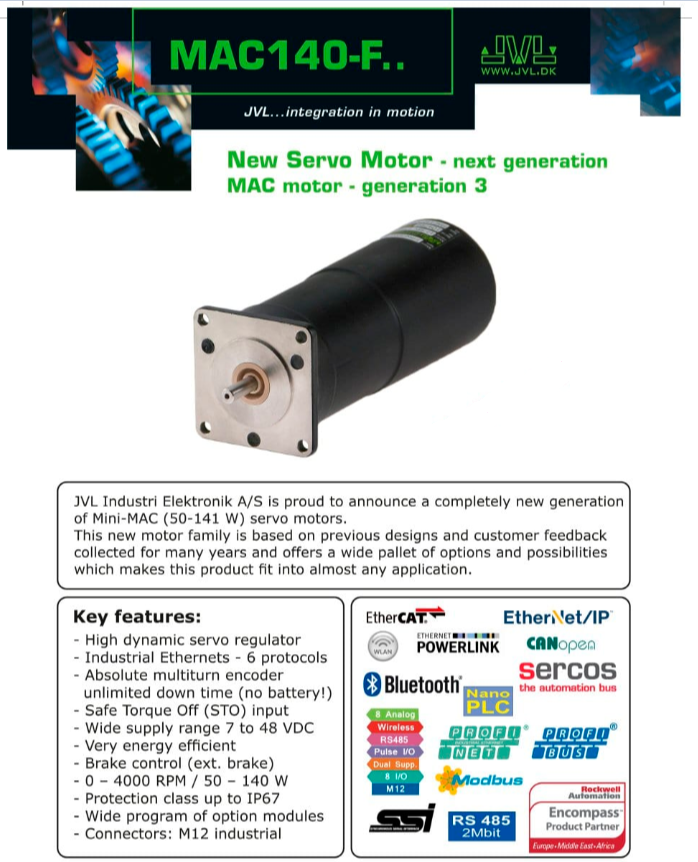

JVL is proud to announce a completely new generation of Mini-MAC 140 W servo motors. These new motors are based on previous designs and customer feedback collected for many years and offers a wide pallet of options and possibilities which makes this product fit into almost any application.

Key features:

• High dynamic servo regulator
• Industrial Ethernet - 6 protocols
• Absolute multiturn encoder unlimited down time (no battery!)
• Safe Torque Off (STO) input
• Supply 12/24/48 VDC
• Wide supply range 7 to 58 VDC
• Very energy efficient
• Brake control (ext. brake)
• 0 – 4000 RPM / 140 W (MAC140)
• 0-2700 RPM / 140 W (MAC141)
• Protection class up to IP67
• Wide program of option modules
• Connectors: M12 industrial
• PLC build-in ePLC
• STO Connector
• Wide catalogue of option modules

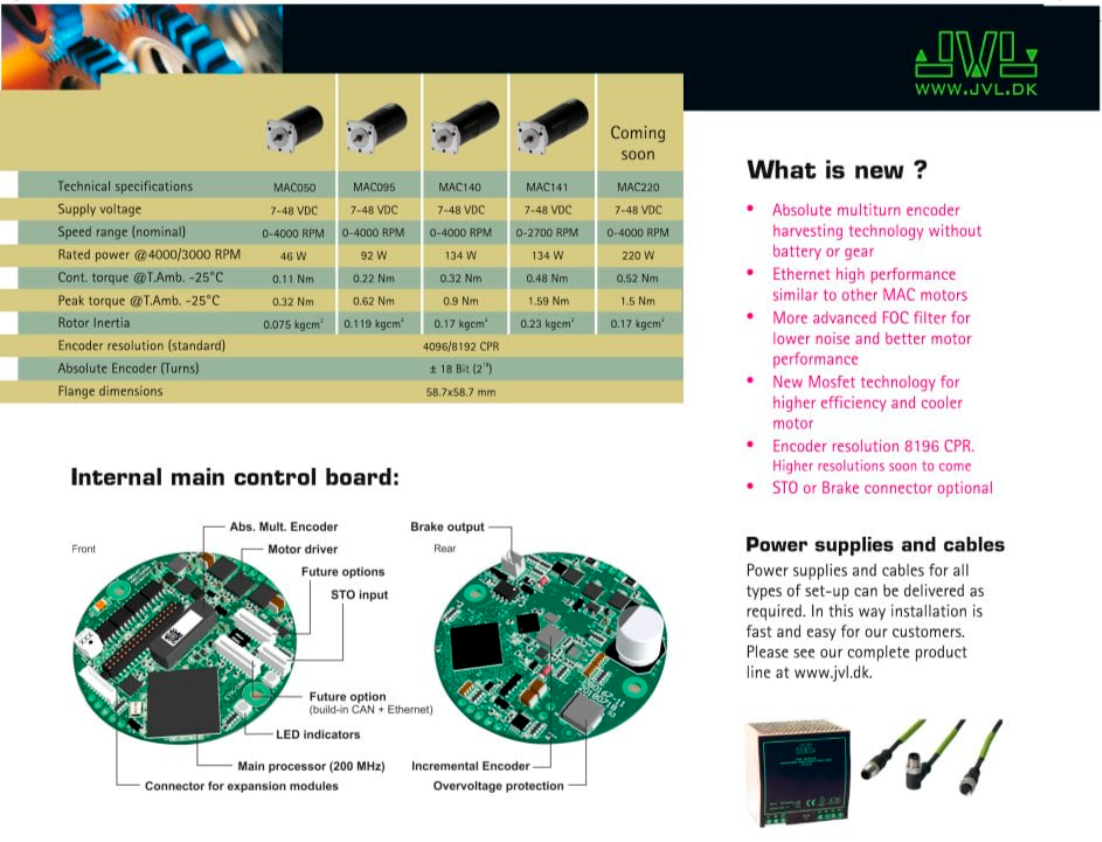

What is new?

• Absolute multiturn encoder harvesting technology without battery or gear
• Ethernet high performance similar to other MAC motors
• New Mosfet technology for higher efficiency and cooler motor
• Encoder resolution 8192 CPR. Higher resolutions soon to come
• STO optional
• Brake connector optional
• More advanced FOC filter for lower noise and better motor performance
