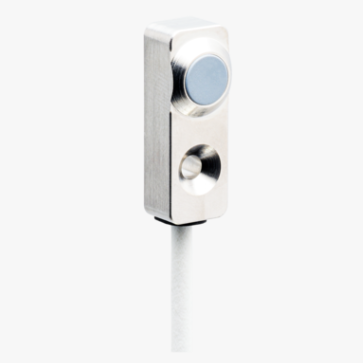

Baumer: Inductive Distance Sensors IF08.D03L-Q25.GP1I.7VCU
Baumer: Inductive Distance Sensors IF08.D03L-Q25.GP1I.7VCU



Baumer

Price : $471.00


Availability: Mfr. Standard Leadtime
Order #: IF08.D03L-Q25.GP1I.7VCU
Qty:

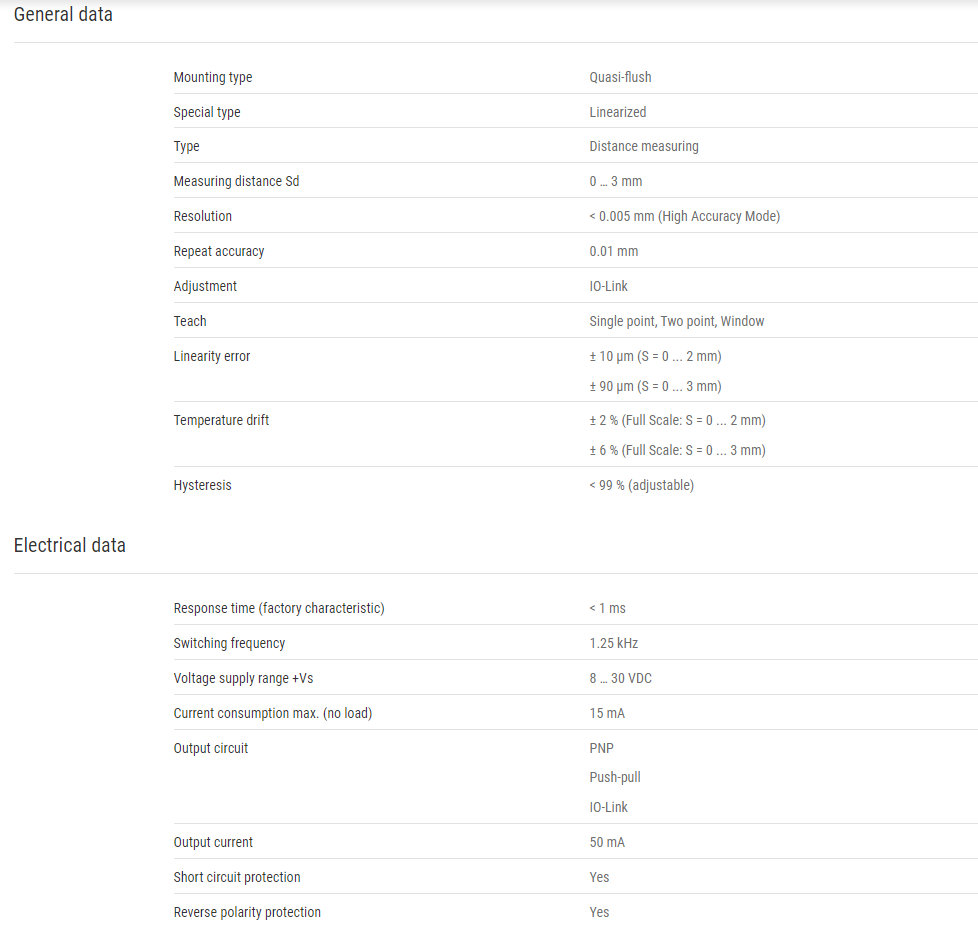

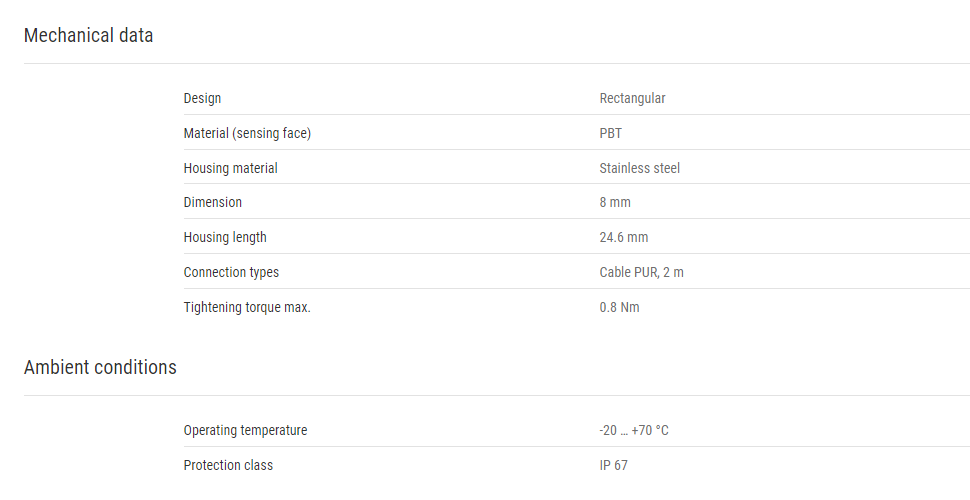

Description Specifications and Drawings

Baumer: Inductive Distance Sensors IF08.D03L-Q25.GP1I.7VCU
Article no.: 11214892
  • Distance measuring
  • 0 … 3 mm
  • PNP / push-pull
  • IO-Link
  • Cable PUR, 2m
  • -20 … 70 °C
  • IP 67


EPLAN --------- Link to Data Portal

Software - IODD V1.1
(IFxx.DxxL) --------- (ZIP | 100 KB)
