Faulhaber: DC-Micromotors 3863...C Series
Faulhaber: DC-Micromotors (3863...C Series)



Price : $999.00


Availability: Lead time is approx. 6-8 weeks ARO
Order #: 3863...C


Model Number/Code*:

Qty:

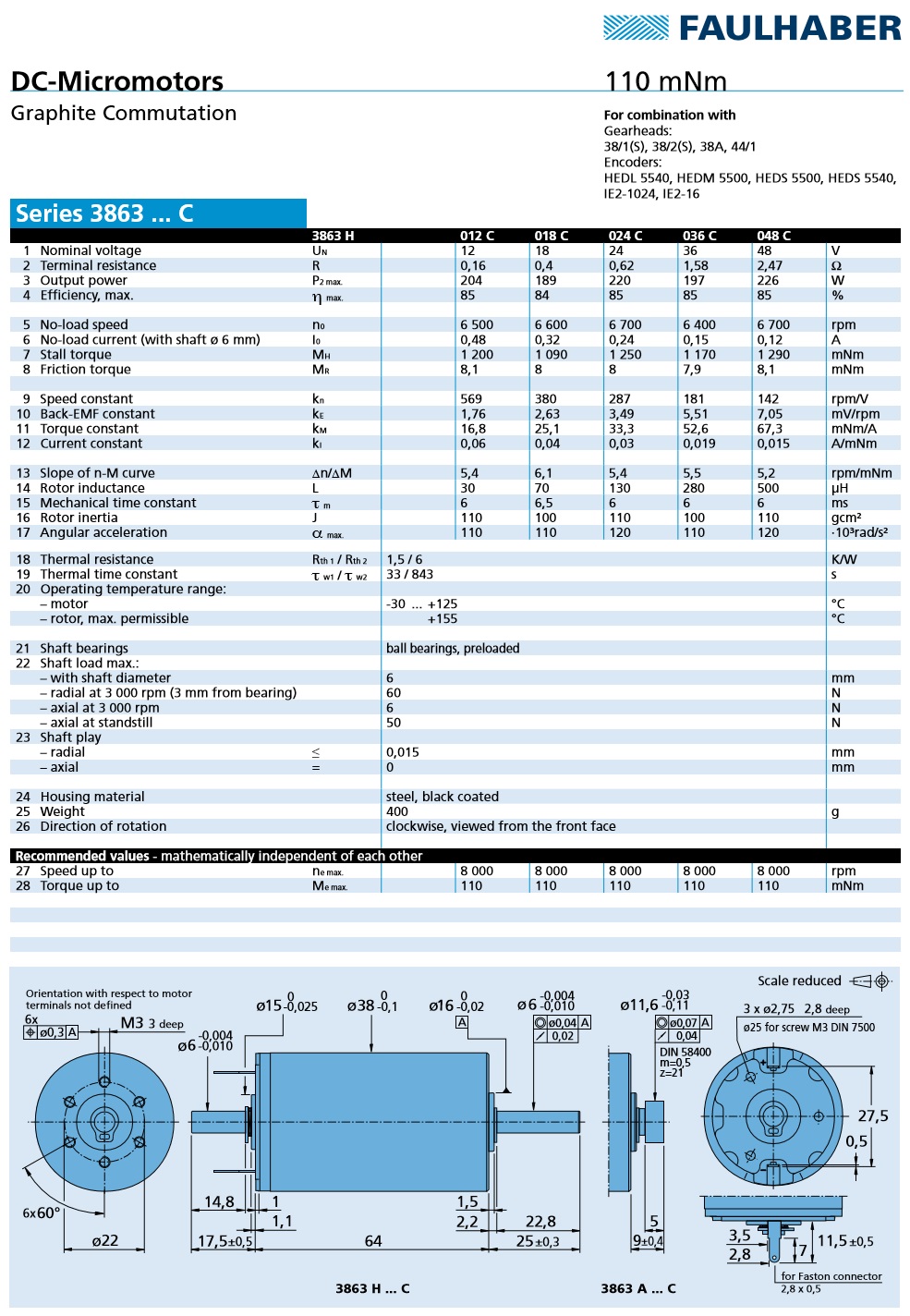

Description Specifications and Drawings


Faulhaber: DC-Micromotors (3863...C Series)

Coreless DC Motors are constructed with a rotor attached to a commutator plate. Brushes providing commutation, these lightweight motors have a low starting inertia for maximum acceleration & minimal power consumption.

Specifications:

  • Diameter (mm): 38

  • Length (mm): 63

  • Commutation: Graphite

  • No-Load Speed up to (rpm): 6,700

  • Stall torque up to (mNm): 1290

Model No.: 3863H012C, 3863H018C, 3863H024C, 3863H036C, 3863H048C
