The FANUC CNC Series 0i-F Plus provides the ideal solution for basic multiple control applications. To maximize productivity on more specific applications, the controls can be easily customized using a wide range of additional functions.

The FANUC CNC Series 0i-F Plus offers a great value with these key features:

• Machining Specs: Up to 12 axes, 6 spindle axes and 2 paths; Up to 2 additional loader paths; 4-Axis simultaneous and 3+2 axis machining.
• Enhanced Safety: Integrated is FANUC’s Dual Check safety function.
• Shop-Floor Programming: Conversational programming via MANUAL GUIDE i.
• Highly Customizable: Functions for simple customization included.
• High Performance: Integrated high-speed PMC.
• Additional Functions Available: High-speed and high-quality machining package.
• Improved Processing Power: Maximum look-ahead blocks 400.
• Seamless Integration: Common operability, maintainability, network and PMC function with CNC Series 30i-MODEL B.
• Ease of Use: iHMI offering intuitive and extremely user-friendly operation.

The FANUC CNC Series 0i-F Plus are perfect for these applications:

• Milling
• Turning
• Grinding
• Punching
• Gear Cutting

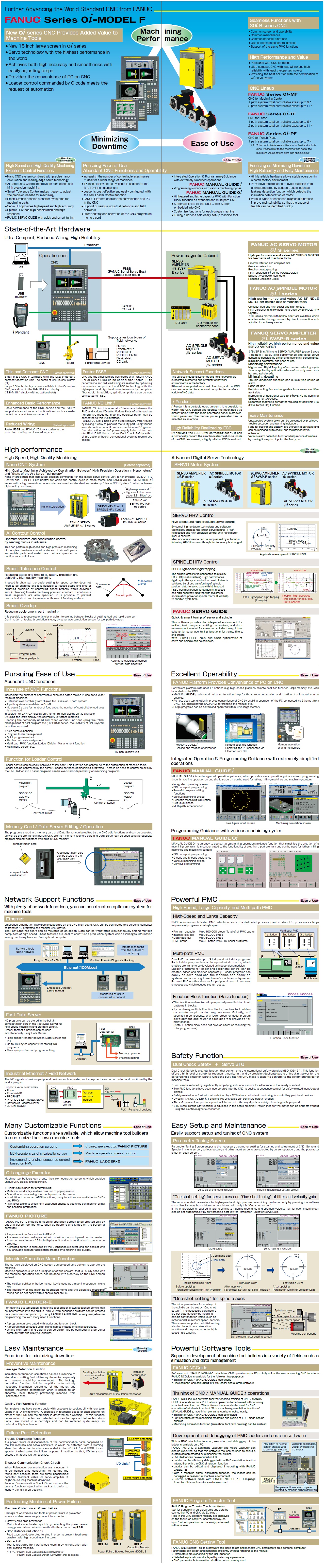

The FANUC CNC Series 0i-MODEL F is the newest generation in the highly popular Series 0i and integrates many features found on the Series 30i-MODEL B. The Series 0i-F brings faster, more accurate performance to a wide range of milling, turning, punching and grinding applications with more standard features, more advanced capabilities and faster communications than ever before. The Series 0i control is the industry's most reliable system with a Mean Time Between Failure rate of 52 years.

The Series 0i-MODEL F offers more axes, ladders and paths, as well as high-speed auxiliary machine functions and an expanded list of standard features. Additional features available on the Series 0i-MODEL F include 15" display, QWERTY keyboard, I/O Link i, high-speed rigid tapping, function for loader control, tolerance control, axis name expansion, program folder management, quick program restart, flexible path axis assignment, multi-path PMC function, ladder dividing management, EtherNet/IP and PROFINET.

• Support for up to 11 servo axes, 4 simultaneous interpolated axes, 4 spindles and 3 independent PMC machine ladders as well as multiple part-program paths and high-speed auxiliary machine functions
• Standard features include many advanced features typically associated with higher-end control systems come standard
• Available with 8.4”, 10.4”, or 15” display and QWERTY or ONG keyboard
• The optional FANUC Data Server offers high-response Ethernet, up to 16 GB part program storage and large transfer buffers for Direct Numerical Control (DNC)
• Operator-friendly set-up guidance with FANUC’s powerful and intuitive conversational programming or the industry standard G-code programming for fast and easy job changeovers
• Teach-and-playback mode makes use of electronic hand wheels and intuitive conversational programming to program parts without learning G-code
• Available web-based software applications for monitoring machine and job status with a smartphone or tablet.

FANUC CNC Series 0i-MF for CNC Milling

ADVANCED MACHINING CYCLES AND FEATURES ASSOCIATED WITH HIGH-SPEED MACHINING OF COMPLEX SURFACES.

• Tilted Working Plane
• Set-Up Guidance
• Nano-Smoothing
• Jerk Control
• Program Restart
• 3-D Manual Feed
• 32-Character Program Names
• Cutter Radius Compensation
• Small-Hole Peck Drilling Cycle

• G54-G59 Plus 48 Additional Workpiece Coordinate Offsets
• Threading Cycle
• Polar Coordinate Command
• 400 Tool Off sets Pairs
• Tool Life Management
• Tool Length Measurement
• Scaling
• Helical Interpolation

FANUC CNC Series 0i-TF for CNC Turning

TURNING CENTERS BENEFIT FROM ADVANCED TURNING CYCLES AND INTEGRATED MILLING USING A SPINDLE C-AXIS OR INDEPENDENT Y-AXIS AND LIVE TOOLING.

• Arbitrary Speed Threading & Thread Repair
• Threading Retract
• Balanced Cut
• Dual-Path Synchronization
• Tool-Nose Radius Compensation
• Multiple Repetitive Cycles
• Canned Cycles for Drilling
• High-Speed Rigid Tapping
• Standard, Multi-Lead & Variable Lead Threading Cycles
• Polar Coordinate Interpolation for C-axis / Y-axis / Live Tools with Cutter Radius Compensation
• G54-G59 Plus 48 Additional Workpiece Coordinate Offsets
• Lathe G-code systems A/B/C

• Chamfering / Corner R
• Direct Drawing Dimension Programming
• Programmable Data Input
• Threading Cycle
• Polar Coordinate Command
• 400 Tool Off sets Pairs
• Tool Life Management
• Tool Length Measurement
• Scaling
• Helical Interpolation
• Mirror image for Double Turret
• Polygon Turning
• High-Speed Skip for Probing

FANUC CNC Series 0i-MODEL F - Features and Benefits

Optimized Speed

The Series 0i-MODEL F features a suite of advanced motion control software functions to reduce cycle times while enhancing part accuracy and extending machine life.

32-Alphanumeric Character Program Names

The Series 0i-F now allows program names with up to 32 alphanumeric characters so it is compatible with Series 30i-B.

High-Response Vector Control

High-Response Vector control (HRV 3) is a high-speed DSP, digital servo and spindle current-control method that provides greater precision and allows for higher machining speeds.

Bell-Shaped Acc/Dec

Bell-shaped acc/dec minimizes machine shock and reduces the time it takes to accelerate and decelerate and can be applied to rapid, contouring and tapping motions.

AI Contour Control

AI Contour Control (AICC I/AICC II) uses advanced look-ahead algorithms to determine the optimal feedrate and acceleration. This can reduce cycle times and improve accuracy, which is especially beneficial when machining complex, curved surfaces such as aerospace or automotive parts or metal dies.

Tool Retract & Recover

Tool retract and recover simplifies tool inspection and replacement while machining. When activated, the tool safely retracts from the part and then can be manually moved to an inspection position. When released, the tool moves back along the path created by the manual moves.

Path Synchronization

M-codes are used to make one path wait for the other path to complete an operation before proceeding. One path can also be commanded to wait until another path reaches a specified absolute coordinate position before continuing.

Twin Table Control

Twin Table Control adds flexibility for twin-table machining centers and routers. The movement of each table can be synchronized to act as one large table, or managed independently for complex production runs.

Program Restart

Program restart allows mid-program startup when the program was interrupted for a tool inspection or the machine stopped for a prolonged break.
