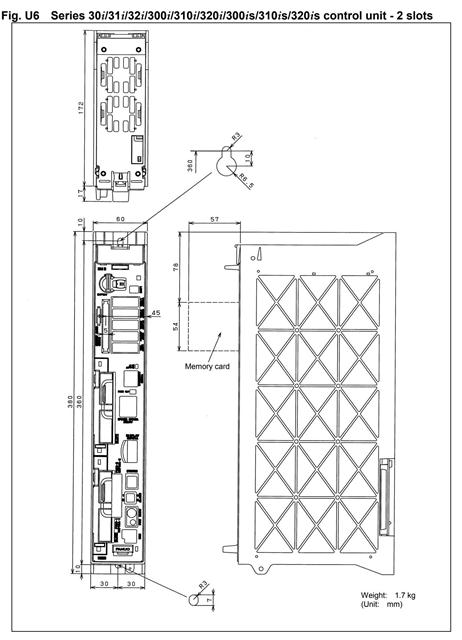

FANUC: 31i-A/310i-A/310i-S5A BASIC 2 SLOT UNIT

Part Number: A02B-0306-B822
Product Series: A02B-0306

FEATURES:
Max number of paths : 4 Paths.

Max. Total number of control axes : 26 axes (20 feed axes,6 spindles)

Maximum number of simultaneous control axes: 4axes (5 axes for the 31iA5)

HIGHLIGHTS:
The 30i series control units are divided into two types: the LCD-mounted type and stand-alone type. LCD-mounted type control units have a built-in display. Stand-alone type control units have a separate display unit.
The control unit is equipped with a fan motor. Air is fed into the bottom of the unit and output from the fan motor mounted on the top of the unit.
FANUC thus recommends that the battery be replaced periodically, once a year, regardless of whether a battery alarm is issued. The following two kinds of batteries can be used.

• Lithium battery built into the CNC control unit.

• Two alkaline dry cells (size D) in the external battery case.

This module FLASH ROM 8MB will help you to replace a defective memory pcb or increase your memory size on your FANUC CNC Control.

Normally this A20B-2902-0091 (SCM) is Situated in Yellow Box Stand Alone to LCD/MDI Unit.This A20B-2902-0091 is a 6MB FROM Module Fitted on FS16/18/160/180-MB Main Board. FROM is Used to Store Flash ROM Data (NC Basic, DG_Servo, Graphics, PMC Ladder) Files.
