Elmo Motion Control: Platinum Line Servo Drives (Platinum Whistle)
New Era Of Servo Control. Miniature Most Powerful Servo Drive

Certified Functional Safety, Composer2, Software in the Loop Powerful Drive’s Capability

Up to 25A/100V, 9A/200V, Up to 2kW of continuous power

The Platinum Whistle is a compact, digital servo drive, part of Elmo’s innovative Platinum series. The Platinum Whistle provides top servo performance, ultra-fast networking, increased processing power and rich feedback support.

With only 55 x 46 x 19.85 mm, the Platinum Whistle servo drive is one of the world’s smallest servo technology to feature Functional Safety support, safety over EtherCAT (FSoE) and integrated Safe I/Os (optional).

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to assist machine and robotic manufacturers in creating better machines through both superior motion-control and utmost safety.

Platinum Whistle Highlights

· Miniature most powerful servo drive Up to 25A/100V & 9A/200V

· Up to 2000W of continuous power
and 4000W at peak power

· Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE

· Integrated Safe I/Os (2 SIL3 inputs + 2 STO hardware inputs + SIL3 break outputs + SIL3 output)

Platinum Series Highlights

· Best-In-Class servo performance

· World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)

· Higher bandwidth, faster response, enhanced linearity and highest control resolutions

· Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency

· Added feedback support: up to three simultaneously, or two absolute feedbacks

· High processing power with large memory resources for better control, enhanced processing, and real time recording

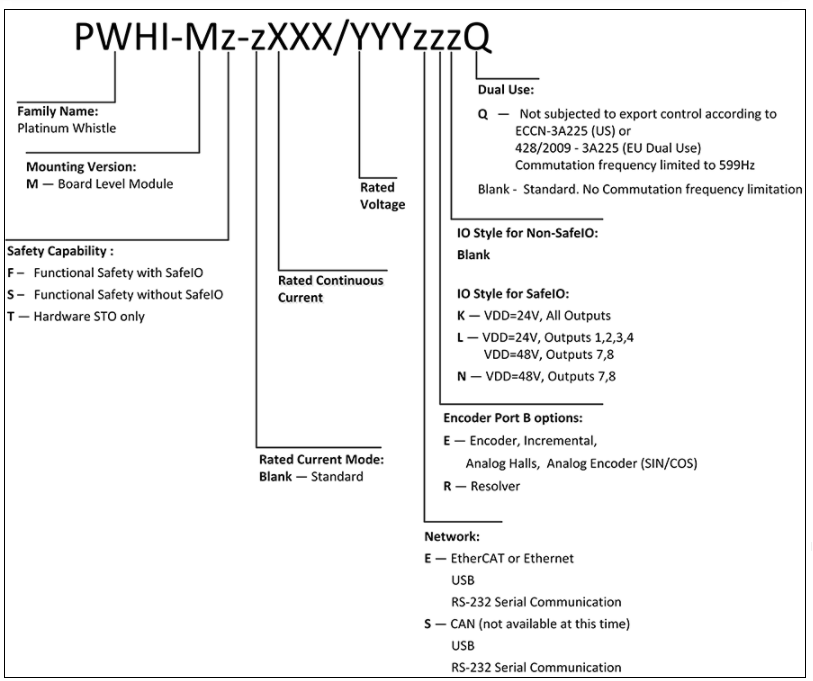

Catalog Number: PWHI-MS-1/100EEK, PWHI-MS-2.5/100EEK, PWHI-MS-5/100EEK, PWHI-MS-10/100EEK, PWHI-MS-15/100EEK, PWHI-MS-20/100EEK, PWHI-MS-25/100EEK, PWHI-MS-3/200EEK, PWHI-MS-6/200EEK, PWHI-MS-9/200EEK
