Elmo Motion Control: Platinum Line Servo Drives (Platinum Solo Quartet)

New Era Of Servo Control
4-Axis Miniature “Ready to Use” Motion Control System,Composer2, Software in the Loop Powerful Drive’s Capability

4X 5000W Servo Drive & 4 Axis Motion-Controller

Platinum Solo Quartet is an ultra-small 4-axis motion control system with advanced multi-axis control, integrated 4 x 5kW powerful servo drives, and advanced safety and networking functionality. The Platinum Solo Quartet is a complete motion solution, which simplifies the connection to the application with an easy to connect interface.

The Platinum series was designed to meet the evolving needs of OEM designers for smarter, smaller, faster servo, with higher functionality and ease-of-use. Platinum drives aim to help machine and robotic manufacturers create better machines through both superior motion-control and utmost safety.

Platinum Solo Quartet Highlights

4X 5000W Servo Drive Intelligent Module

4 Axis Motion-Controller

“Ready to Use” solution

High Precision Servo Control

Advanced Safety Functionality (STO)

Rich I/O Support

Innovative Platinum line core

Ultra-Fast EtherCAT Networking

Platinum Series Highlights

Best-In-Class servo performance

World’s smallest servo technology to feature advanced safety functionality

Higher bandwidth, faster response, enhanced linearity and highest control resolutions

Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency

Added feedback support: up to three simultaneously, or two absolute feedbacks

High processing power with large memory resources for better control, enhanced processing, and real time recording

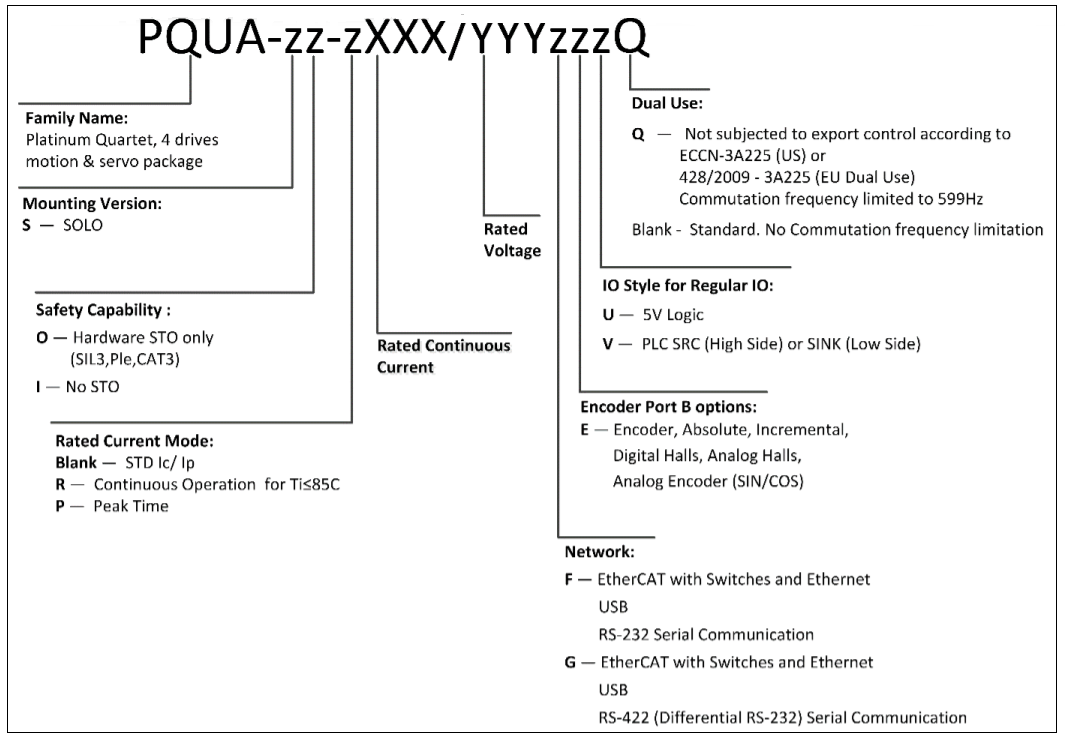

Catalog Number: PQUA-SO-1/100FEU, PQUA-SO-3/100FEU, PQUA-SO-6/100FEU, PQUA-SO-10/100FEU, PQUA-SO-15/100FEU, PQUA-SO-25/100FEU, PQUA-SO-P50/100FEU, PQUA-SO-3/200FEU, PQUA-SO-6/200FEU, PQUA-SO-10/200FEU, PQUA-SO-R15/200FEU, PQUA-SO-R35/200FEU
