Elmo Motion Control: Platinum Line Servo Drives (Platinum Solo Bell)

New Era Of Servo Control, Driving “Any Motor” Certified Functional Safety, Composer2, Software in the Loop Powerful Drive’s Capability

Up to 25A/100V, 9A/200V, Up to 2kW of Continuous Power.

The Platinum Solo Bell is a compact, digital servo drive, part of Elmo’s innovative Platinum series and designed to drive any motor. The Platinum Solo Bell is an integrated solution, which simplifies the connection to the application with an easy to connect interface. The Platinum Solo Bell provides top servo performance, ultra-fast networking, increased processing power and rich feedback support.

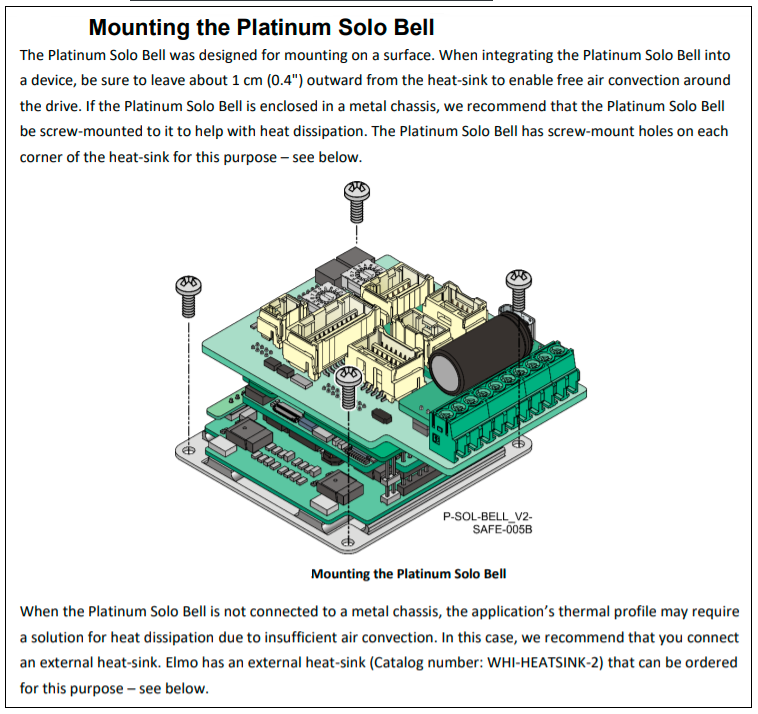

With only 66.0 x 58.5 x 28.4 mm, the Platinum Solo Bell servo drive can power any motor such as: two phases stepper (in closed or open loop), one brushless sinusoidal or trapezoidal servo motor, two DC or voice coil motors controlled independently by only one Platinum Solo Bell and two single phase servo motors (linear or rotary) controlled independently as well by only one Platinum Solo Bell.

The Platinum Solo Bell is one of the world’s smallest servo technology to feature Functional Safety support, safety over EtherCAT (FSoE) and integrated Safe I/Os (optional).

Platinum Solo Bell Highlights

Designed to drive any motor:

Two phases stepper (in closed or open loop)

Brushless sinusoidal or trapezoidal servo motor

Two DC or voice coil motors (controlled independently by one Platinum Bell)

Two single phase servo motors (controlled independently by one Platinum Bell)

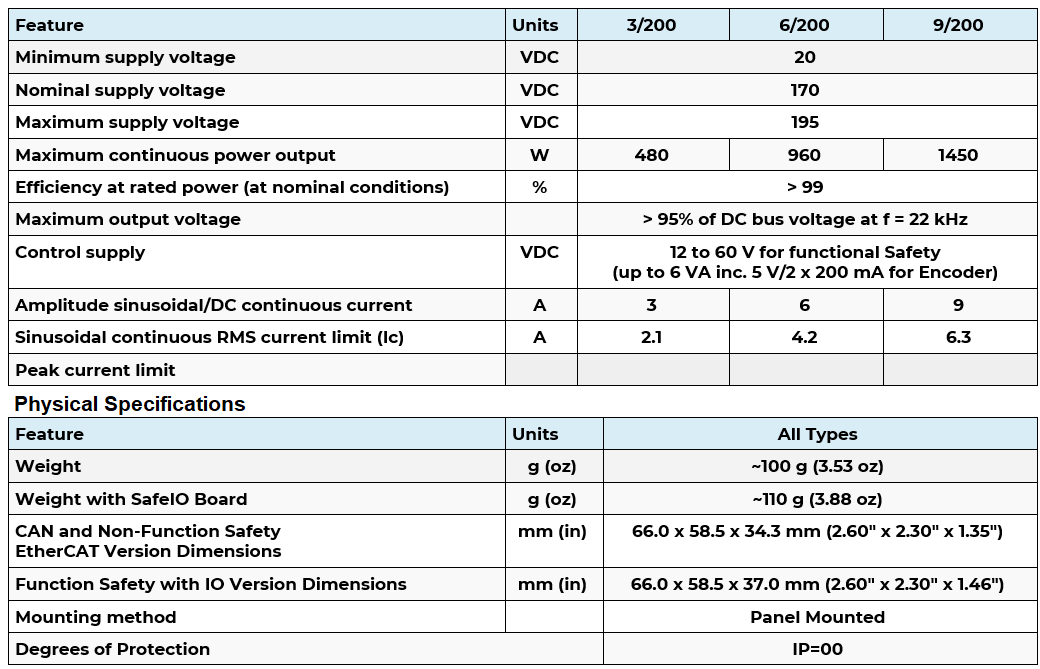

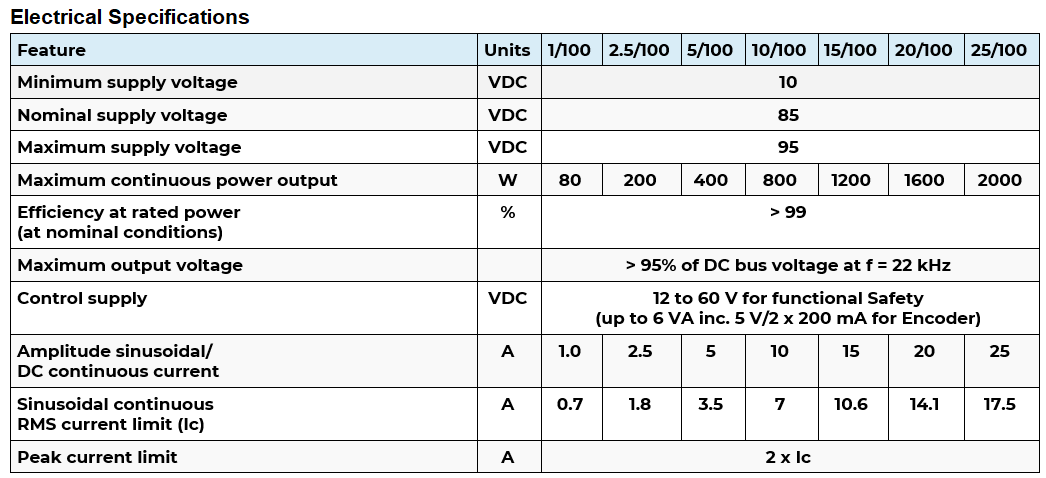

Up to 25A/100V, 9A/200V

Ultra-Fast EtherCAT Networking

Functional Safety IEC 61800-5-2 (SIL-3, Cat4 PL-e) & FSoE

Integrated Safe I/Os (2 SIL3 inputs + 2 STO hardware inputs + SIL3 break outputs)

Platinum Series Highlights

Best-In-Class servo performance

World’s smallest servo technology to feature functional safety and safety over EtherCAT (FSoE)

Higher bandwidth, faster response, enhanced linearity and highest control resolutions

Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency

Added feedback support: up to three simultaneously, or two absolute feedbacks

High processing power with large memory resources for better control, enhanced processing, and real time recording

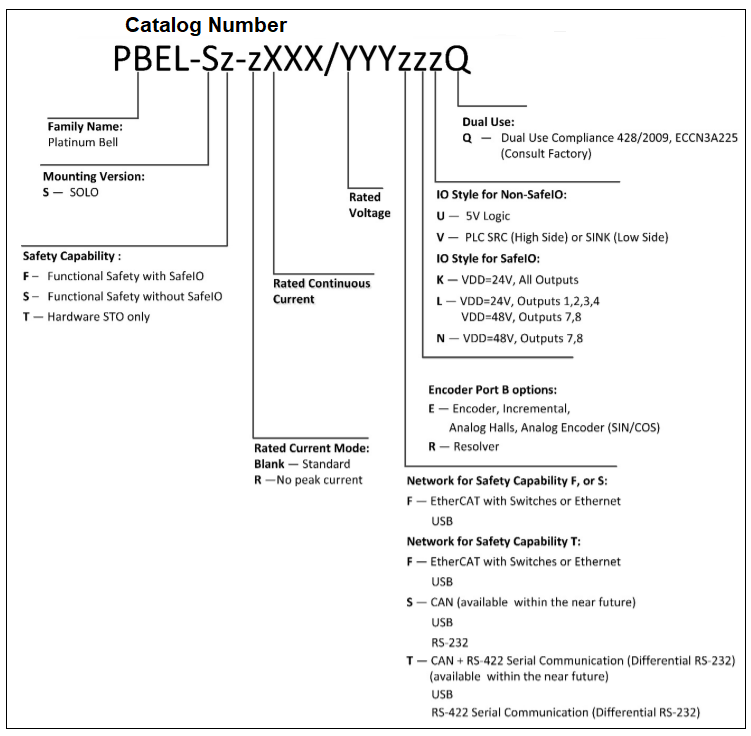

Catalog Number: PBEL-SF-1/100FEU, PBEL-SF-2.5/100FEU, PBEL-SF-5/100FEU, PBEL-SF-10/100FEU, PBEL-SF-15/100FEU, PBEL-SF-20/100FEU, PBEL-SF-25/100FEU, PBEL-SF-3/200FEU, PBEL-SF-6/200FEU, PBEL-SF-9/200FEU
