Elmo Motion Control: Gold Line Servo Drives (Gold Trombone)

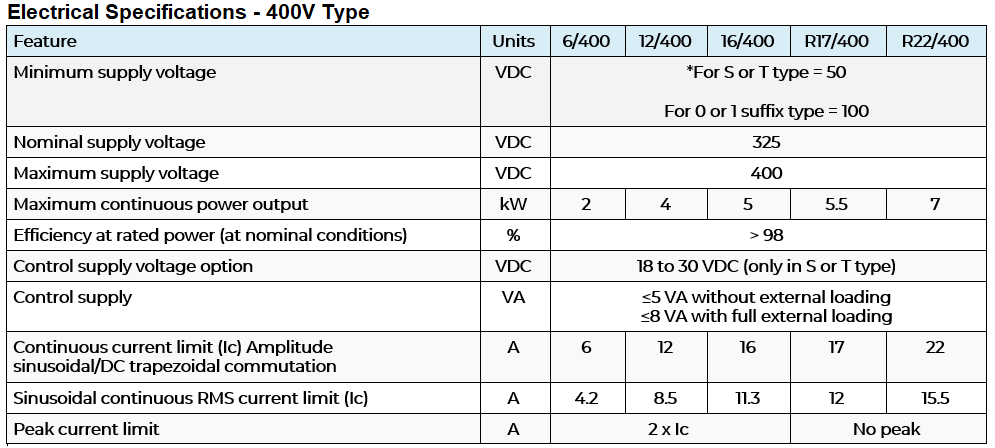

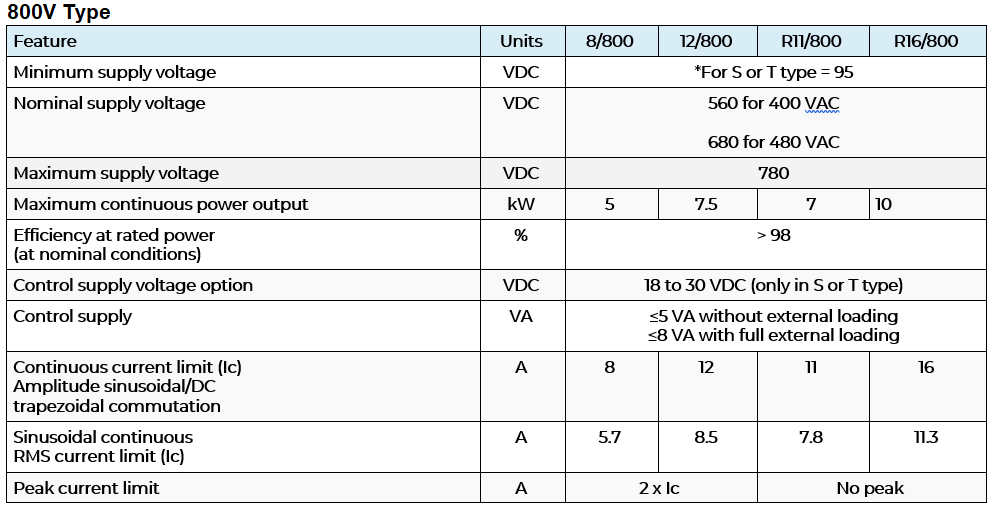

Compact, Direct to Mains, Network-based Servo Drive,Up to 16 A/800 V and up to 22 A/400 V,Up to 10 kW of Qualitative Power

The Gold Trombone – Gold Line intelligent servo drives – is designed to operate “Direct to Mains” from a high voltage DC power supply of up to 400 VDC or 780 VDC, without the need for a transformer. The Gold Trombone meets the highest level of motion control application requirements, providing top servo performance, advanced networking, built-in safety and high power density, combined with a fully featured motion controller and local intelligence.

In conjunction with Elmo’s Gold Maestro, the ultimate distributed network motion controller, and the other members of Elmo’s Gold Line of intelligent servo drives, state-of-the-art solutions for the most challenging multi-axis motion applications can be easily implemented, with a short development cycle while maintaining high performance.

Gold Trombone Highlights:

Gold Line core motion control technology

Ultra-compact, highest power density

Highly efficient, high bandwidth performance

Multiple communication options: EtherCAT, CANopen, USB, Ethernet

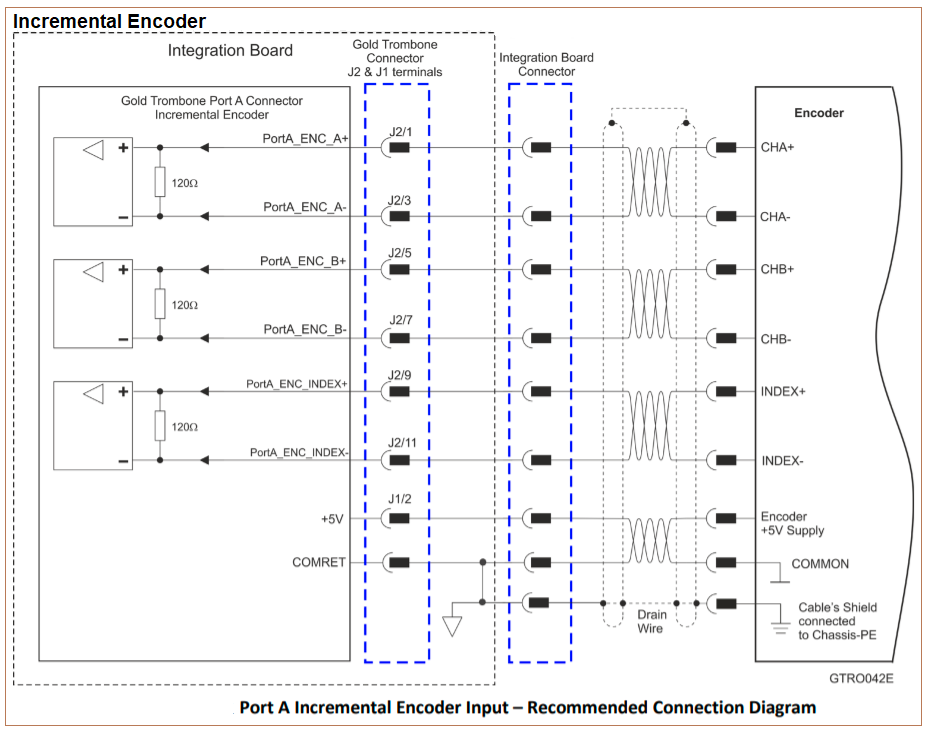

Supports a wide variety of feedback sensors

Advanced filtering and gain scheduling options for enhanced dynamic performance

Vector control sinusoidal commutation

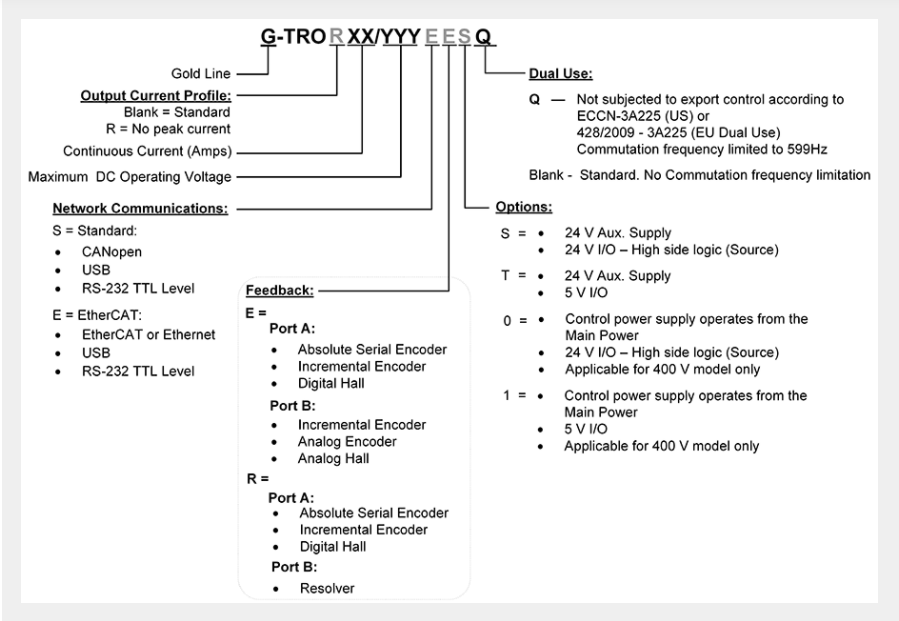

Catalog Number: G-TRO6/400SES, G-TRO12/400SES, G-TRO16/400SES, G-TROR 17/400SES, G-TROR 22/400SES, G-TRO8/800SES, G-TRO12/800SES, G-TROR 11/800SES, G-TROR 16/800SES
