Elmo Motion Control: EXTRIQ GOLD, HARSH ENVIRONMENT SERVO SOLUTIONS (Gold Tiger)

Super Compact, Direct to Mains, Network-based Servo Drive

-40°C to+70°C, Vibrations up to 14GRMS

Up to 16A/800 VDC and up to 22 A/400 VDC

Designed, qualified, verified, manufactured and tested to withstand Extreme Environments.

Mating Power Supply ELP-30.

The Gold Tiger series of digital servo drives are highly resilient and designed to deliver the highest density of power and intelligence. The Gold Tiger delivers up to 10 kW of continuous power or 16 kW of peak power in a compact package.

The digital drives are part of Elmo’s advanced Gold Line. They operate from a DC power source in current, velocity, position and advanced position modes, in conjunction with a permanent-magnet synchronous brushless motor, DC brush motor, linear motor or voice coil. They are designed for use with any type of sinusoidal and trapezoidal commutation, with vector control. The Gold Tiger can operate as a stand-alone device or as part of a multi-axis system in a distributed configuration on a real-time network.

The EASII application enables users to quickly and simply configure the servo drive for optimal use with their motor. The Gold Tiger, as part of the Gold Line, is fully programmable with Elmo’s motion control language.

The Gold Tiger is a stand-alone version of the Gold Panther module (PCB-mounted).

Gold Tiger Highlights:

· Gold Line core motion control technology

· Super compact, with the highest power density in its class

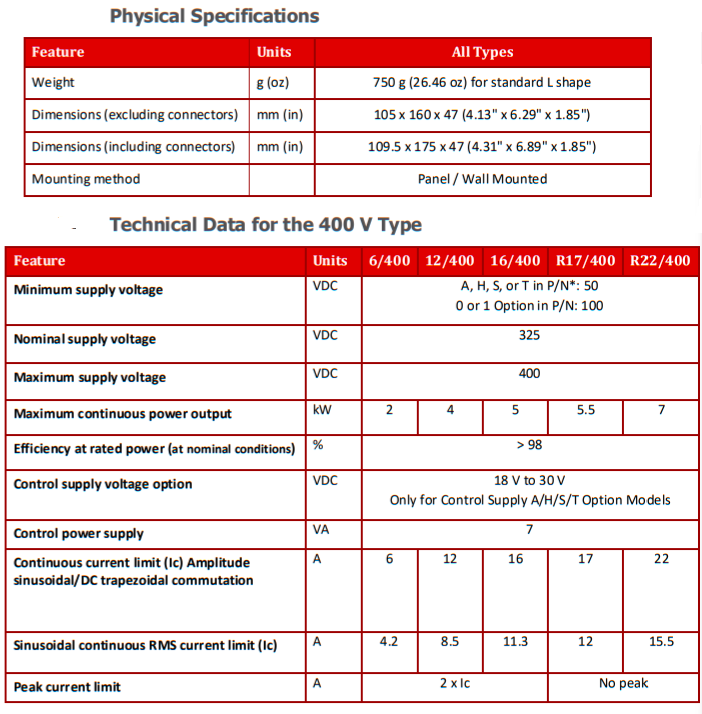

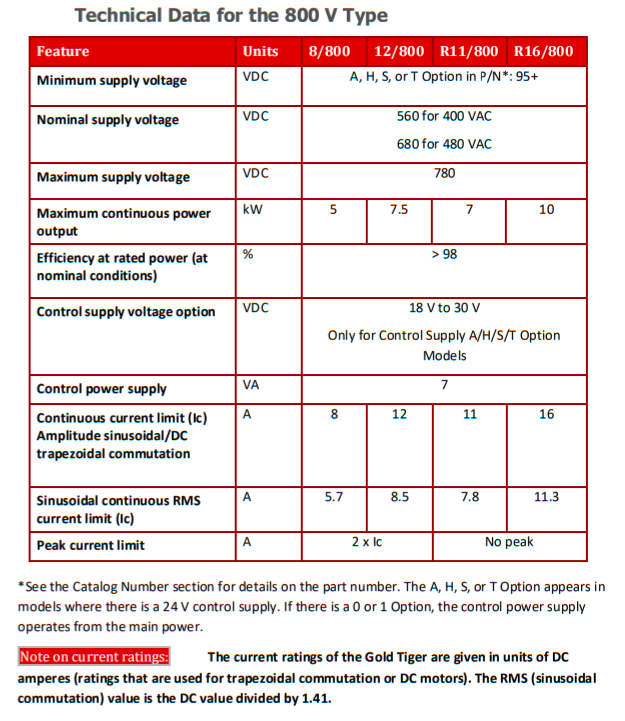

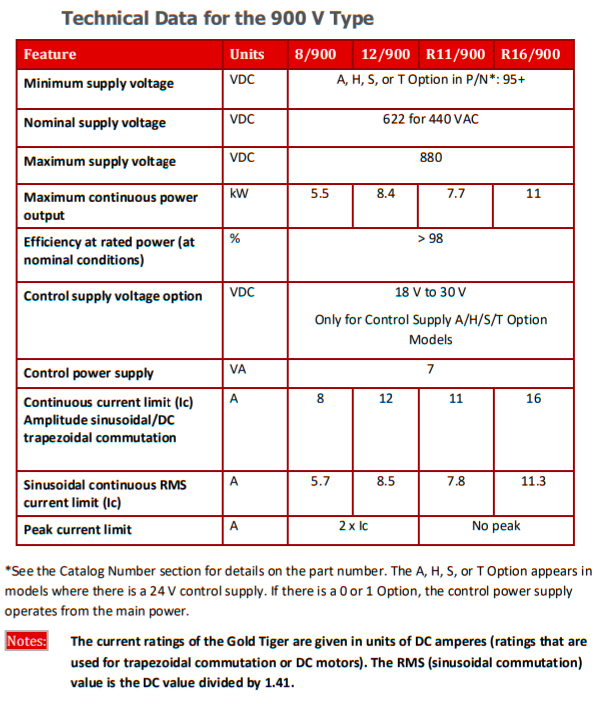

· Drives any servo motors, up to 10,000 W continuous and 16,000W peak power

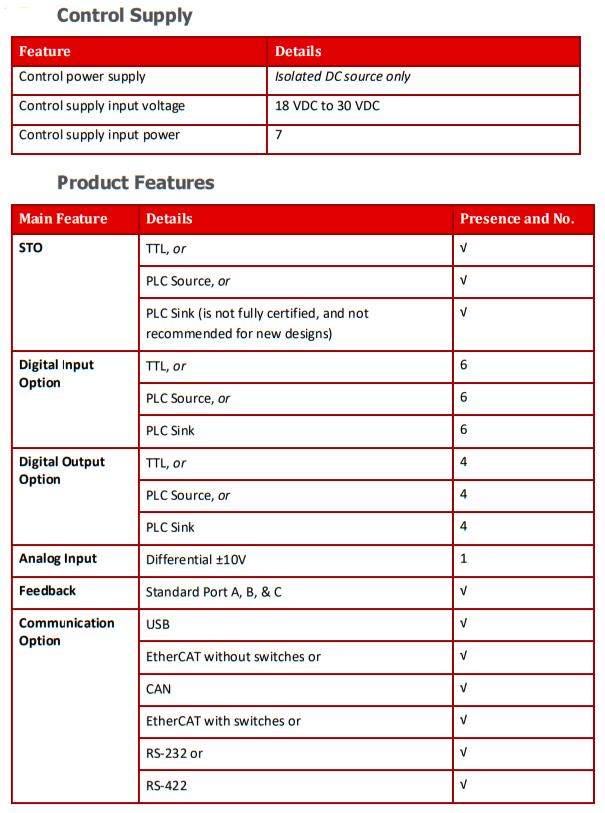

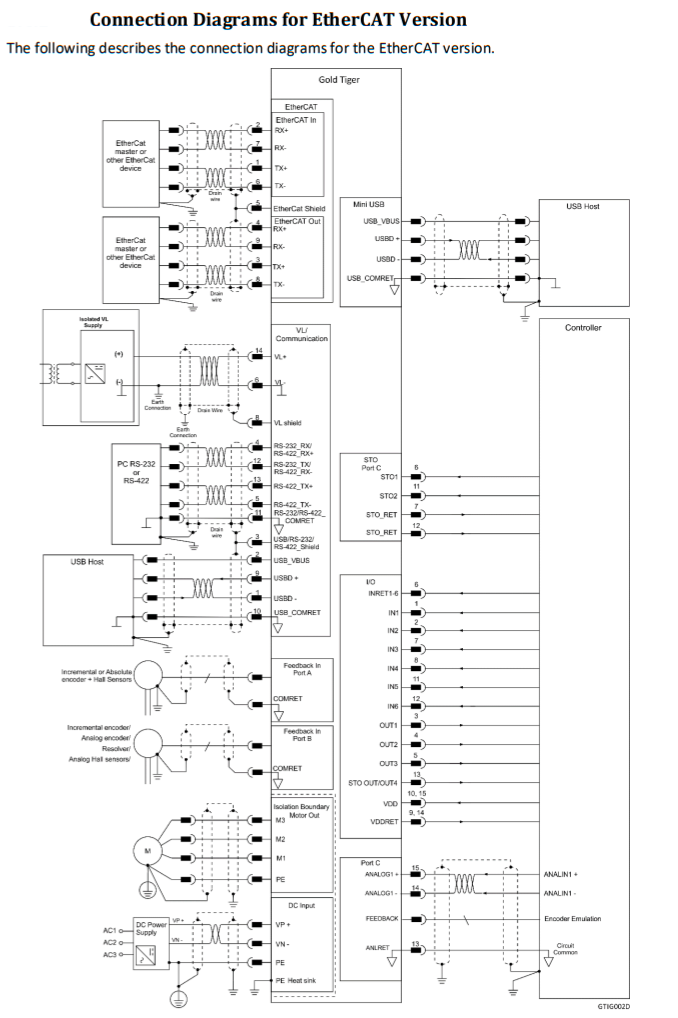

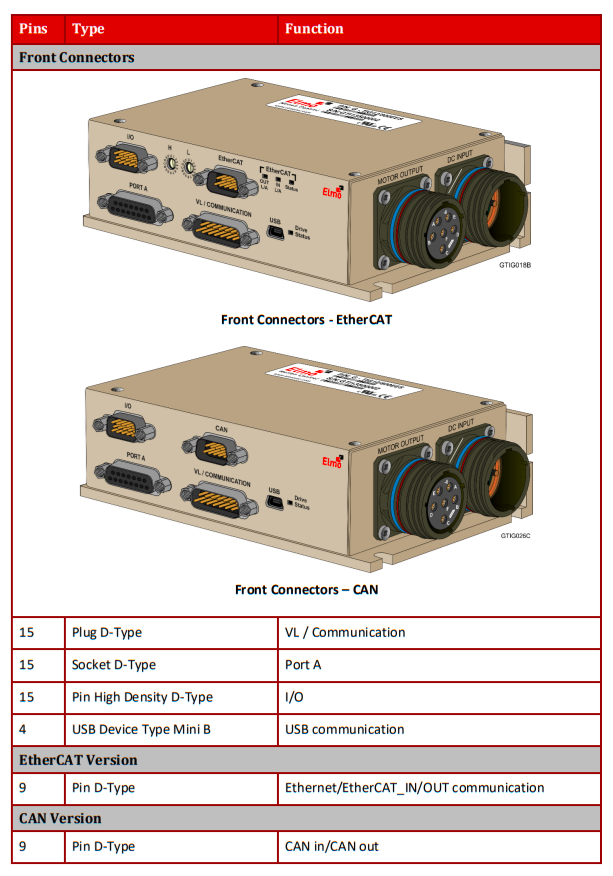

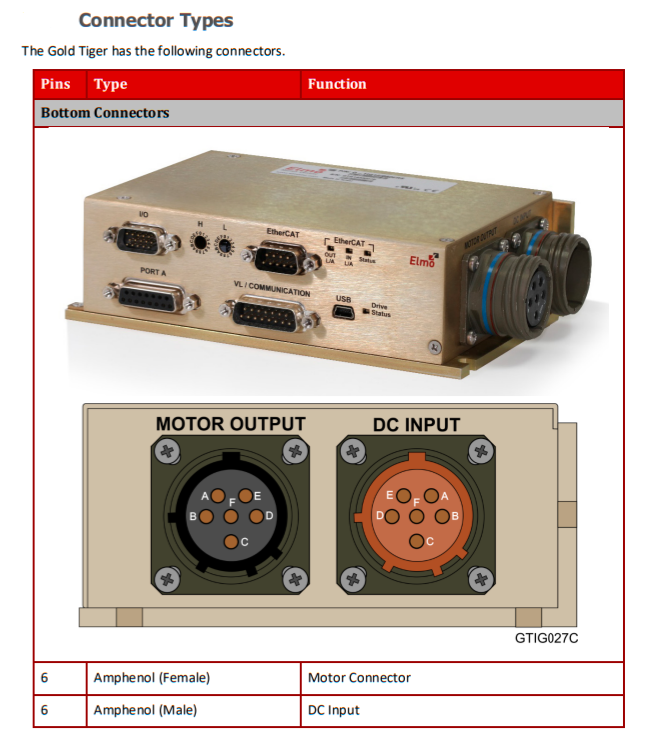

· Field Bus Communication: EtherCAT, CANopen

· RS232, RS422, USB, Ethernet

· Advanced filtering and gain scheduling options for enhanced dynamic performance.

· Extremely efficient, over 99%

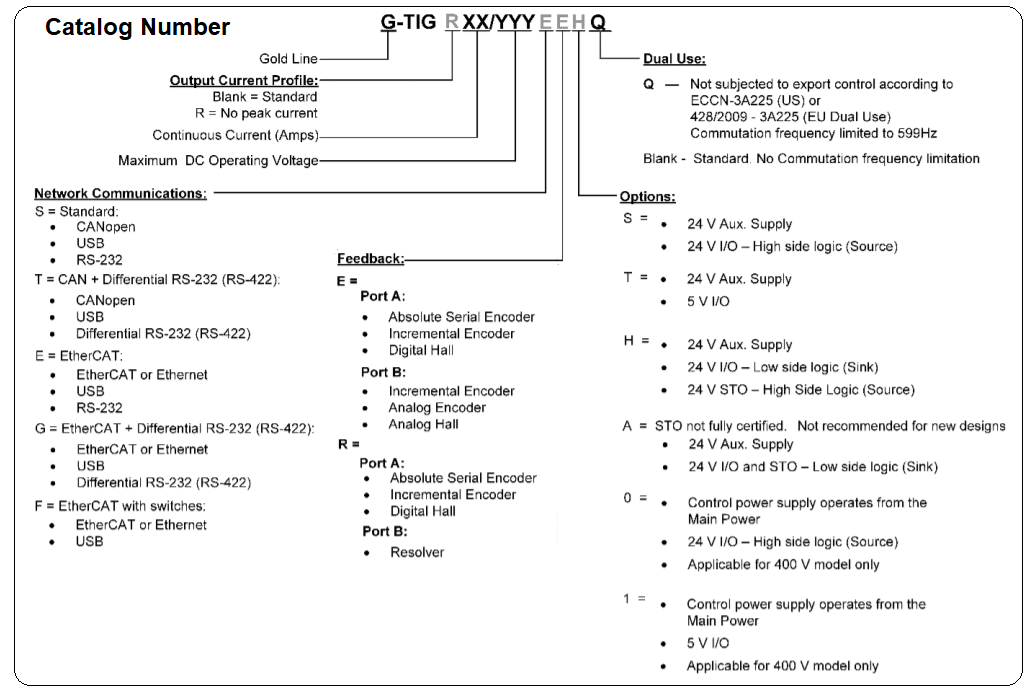

Catalog Number: G-TIG 6/400 EEH, G-TIG 12/400 EEH, G-TIG 16/400 EEH, G-TIG R 17/400 EEH, G-TIG R 22/400 EEH, G-TIG 8/800 EEH, G-TIG 12/800 EEH, R 11/800G-TIG EEH, G-TIG R 16/800 EEH, G-TIG 8/900 EEH, G-TIG 12/900 EEH, G-TIG R 11/900 EEH, G-TIG R 16/900 EEH
