Elmo Motion Control: Gold Line Servo Drives (Gold Solo Whistle)

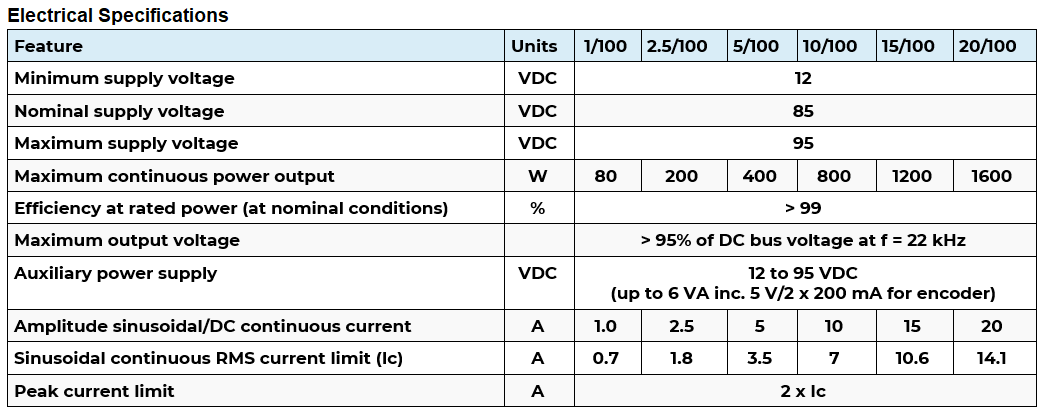

Miniature, Stand-alone Network-based Servo Drive, Up to 20 A/100 V and up to 9 A/200 V, Up to 1.6 kW of continuous power.

The Gold Solo Whistle is a compact, integrated digital servo drive that weighs just 106 g (3.74 oz) and offers up to 1.6 kW of continuous power or 3.2 kW of peak power.

The Gold Solo Whistle is an integrated solution designed to simply and efficiently connect the Gold Whistle servo drive directly to the application. The solution consists of the Gold Whistle together with a convenient connection interface which either eliminates or reduces development time and resources when designing an application’s PCB board.

This advanced, high power density servo drive provides top performance, advanced networking and built-in safety, as well as a fully featured motion controller and local intelligence. The Gold Solo Whistle is powered by a single 12 V – 95 V isolated DC power source (not included) and a “smart” control-supply algorithm enables the drive to operate with only one power supply with no need for an auxiliary power supply for the logic.

In conjunction with the Gold Maestro, the ultimate distributed network motion controller, and the other members of the Gold Line of intelligent servo drives, state-of-the-art solutions for the most challenging multi-axis motion applications can be easily implemented, with a short development cycle while maintaining high performance.

Gold Solo Whistle Highlights:

Gold Line core motion control technology

Ultra-compact, highest power density

Highly efficient, high bandwidth performance

Multiple communication options: EtherCAT, CANopen, USB, Ethernet

Supports a wide variety of feedback sensors

Advanced filtering and gain scheduling options for enhanced dynamic performance

Vector control sinusoidal commutation

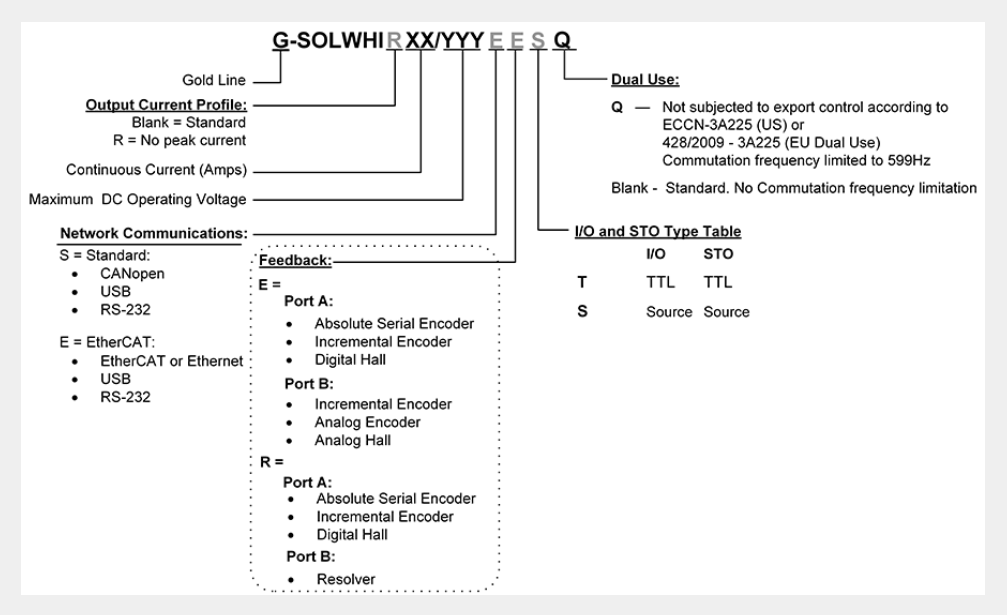

Catalog Number: G-SOLWHI1/100SES, G-SOLWHI2.5/100SES, G-SOLWHI5/100SES, G-SOLWHI10/100SES, G-SOLWHI15/100SES, G-SOLWHI20/100SES, G-SOLWHI3/200SES, G-SOLWHI6/200SES, G-SOLWHI9/200SES
