CODESYS WebVisu SL Article no. 2304000004

If the CODESYS WebVisu is implemented in the CODESYS Control runtime environment of an automation device, the device can display graphical user interfaces on connected HTML5-capable web browsers.

Two licensing models are offered:

CODESYS WebVisu: Volume licensing for all the controllers of a device family by the controller supplier, for the general availability of the visualization in web browsers.

CODESYS WebVisu SL: Subsequent activation of a single license by the end user, for a device with full visualization preparation by the device supplier. (Data interface (e.g. Ethernet) for the connection of an external browser unit)

Integrated in the CODESYS Development System, the development of an IEC 61131-3 logic application as well as a classic or object-oriented visualization development becomes possible with one and the same development environment.

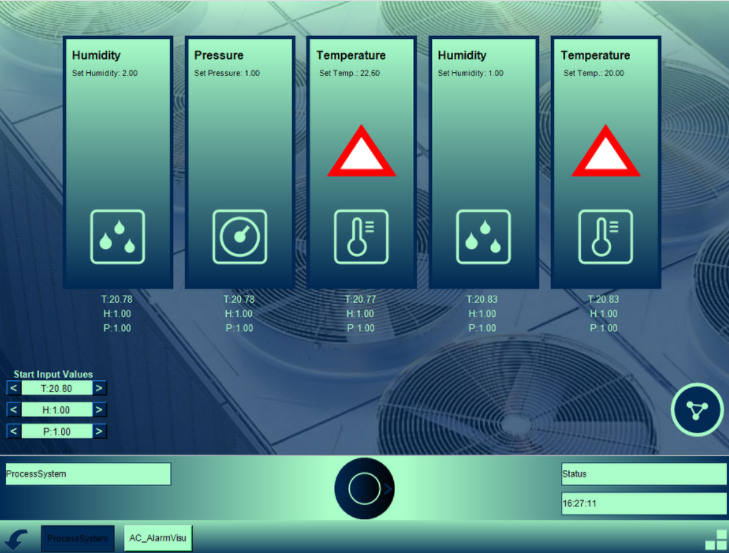

In CODESYS WebVisu, the controller features an integrated web server that makes image and variable data available in a data network. These data can be displayed on any HTML5-capable display devices with a standard web browser. Project engineering with the editor integrated in the CODESYS Development System: The web server supports all visual elements of the CODESYS Development System on a controller with a CODESYS Control Runtime.

Possibility of combination with the CODESYS product TargetVisu for the display of created masks on local display devices.

Visualization management via:

Specification of the display on the target device (update rate, width and height in pixels)

Universal modification of all masks via CODESYS Visualization styles

Management of actions by assignment of hot keys or mouse events

Setting of user groups for the graphic interface
