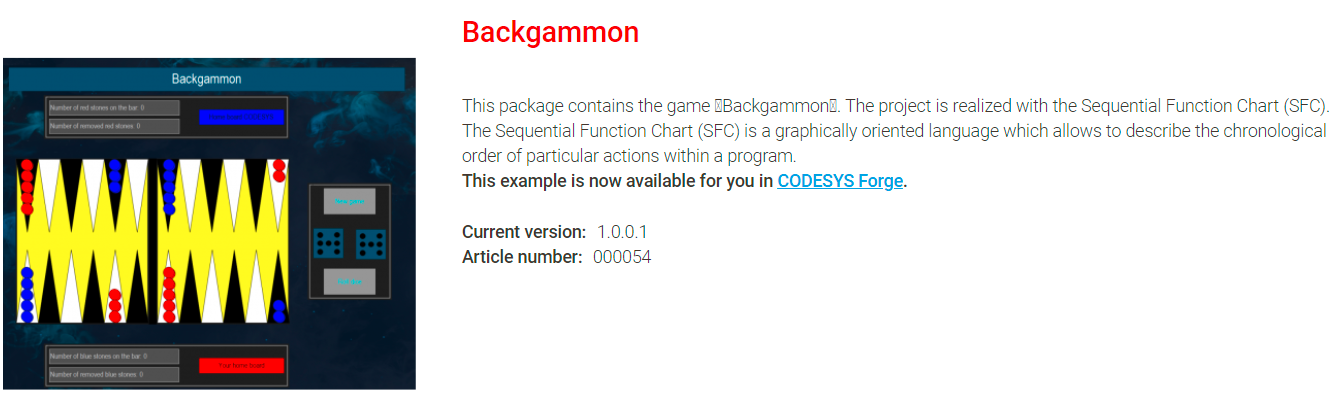

CODESYS Backgammon - Article no.000054
This package contains the game ‘Backgammon’. The project is realized with the Sequential Function Chart (SFC). The Sequential Function Chart (SFC) is a graphically oriented language which allows to describe the chronological order of particular actions within a program.

Description of the game:

CODESYS plays with the blue stones from right bottom to right top. You play with the red stones from right top to the right bottom.

‘New Game’ starts a new game

‘Roll dice’ rolls the dices

A stone can be moved by selecting its current field and then selecting the target field.
