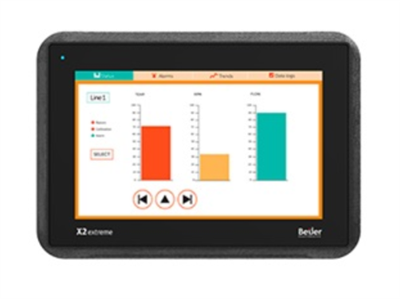

Beijer Electronics: 15'' Rugged HMI with iX runtime (X2 extreme 15 HP) 640014705

Rugged HMIs for tough environments

X2 extreme panels are certified by all major classification societies. Designed to perform in rugged environments and in hazardous areas where gases, vapors and dust are present. Extended environmental capabilities include operating temperatures from -30°C to +70°C, high vibrations and high-pressure wash-downs.

X2 extreme panels are available in 7, 12 and 15 inches, all in 3 versions: Standard versions, high-performance versions and fully sealed high-performance versions. The high-performance and fully sealed high-performance versions both offer high brightness display and optional integrated CODESYS PLC functionality.

Fully sealed

Fully sealed versions with M12 connectors are IP66, NEMA 4X/12 rated with hazardous location and marine certifications.

Extreme temperatures

Extreme -30°C to +70°C operating temperature range guarantees trouble-free use in the harshest environments.

High vibration

Panels are tested to 4 g RMS sweep sine for vibration and 40 g 11 ms half sine for shock.

UL, CE, FCC and KCC

The entire X2 range offers a strong standard certification with UL, CE, FCC and KCC certificates.

Marine certifications

The X2 panels meet extended classes of marine certifications not normally carried by HMIs, making them suitable for all onboard locations.

Certified for hazardous environments

Certified for use in hazardous areas where gases, vapors and dust are present.

Custom design or non-branded

Profile your brand or go for neutral. X2 panels offer custom designed or non-branded front foils, as alternatives to the standard Beijer Electronics branded versions.

Control by CODESYS

The high performance and sealed versions offer integrated CODESYS IEC 61131-3 PLC functionality running on dedicated CPU cores for safe and fast program execution. Just add remote I/Os for a scalable, cost-effective solution.

High brightness display

The high-performance and fully sealed versions feature 1,000 cd/m² backlight providing excellent readability in high ambient light levels such as sunlight.

Dimmable backlight

Comfortable and safe operation in high and low ambient light conditions. Backlight is continuously dimmable to less than one cd/m².

Internal isolation

Internal isolation conforms to marine standards for both burst and surge immunity.

Integrated CAN bus

It’s easy to interface with controllers using the integrated CAN bus.

iX software – why you’ll love our hardware

The iX software gives you smart communication tools. It combines top-class vector graphics and easy-to-use functions that provide reliable operation, and almost limitless connectivity to your other equipment.

Fast forward engineering with WARP

Create integrated HMI, control, drives and data communication solutions with WARP Engineering Studio. WARP automatically configures all hardware, software and communication in your application.

X2 extreme 15 HP

15'' Rugged HMI with iX runtime

• 1280 × 800 pixel (16:10) TFT-LCD touch screen
• High brightness display
• 3.5 GB application memory
• Ethernet 2x100 Mbit
• -30°C to +70°C operating temperature
• DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals
• UL Class I Div 2, ATEX/IECEx Zone 2,22, CNEX
