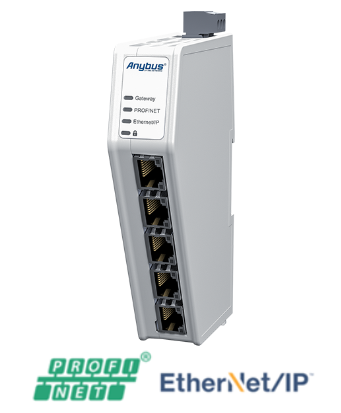

Anybus Communicator - PROFINET IO-Device - EtherNet/IP adapter ABC4013
Anybus Communicator - PROFINET IO-Device - EtherNet/IP adapter ABC4013



Alternate View


Price : $1,399.00

Quantity in Stock:3

Order #: ABC4013
Qty:

Description Ordering Information Specifications and Drawings

Anybus: PROFINET IO Device & EtherNet/IP adapter Communicator ABC4013

The Anybus Communicator PROFINET IO-Device - EtherNet/IP adapter is an industrial protocol gateway that allows you to seamlessly transfer data between PLC control systems over PROFINET and EtherNet/IP networks.

Anybus Communicators are designed to ensure reliable, secure, and high-speed data transfer between different industrial Ethernet and Fieldbus networks. Very easy to install and deploy, the stand-alone gateways enable transparent data exchange between PLCs allowing you to both bridge and integrate legacy equipment into modern high-performance networks with only minimal changes to the software.
Anybus Communicators are built using the award-winning and proven Anybus NP40 industrial network processor providing network conformance, high performance, and reliability. When connecting between PLCs on different networks, extremely fast data cycling is enabled with data transfer of up to 1500 bytes in each direction, meeting most current control application needs as well as supporting future demands.
Quick installation is ensured thanks to the intuitive configuration, easy-to-understand documentation, and smart hardware and housing design.

Features and benefits

1)
Excellent performance

Instant data transfer - The time required for data transfer between two PLCs is made up of the cycle time of the first network plus the cycle time of the second network. The internal data transfer in the communicator is negligible because it corresponds to the natural fluctuations of the network cycle times (jitter).

Hardware-accelerated endian conversion (byte swap) - Communicators can change the data representation (endianness) using hardware-accelerated endian conversion to ensure that data is represented correctly in each PLC. You can even convert different parts of the data area in different ways to handle different types of data. This has no impact on performance, relieves the PLC of the data conversion task, and simplifies PLC programming.

2) Easy startup

Dedicated Ethernet configuration port - no special cables required.

Intuitive web-based drag-and-drop configuration interface - no need to install additional software.

Front-facing connectors make it easy to connect cables, and the slim form factor saves space on the DIN rail.

Troubleshoot with powerful diagnostics, including live data monitor, status screen, and support package.

3) Latest security features

Secure boot functionality to detect firmware tampering and protect against malware attacks and infections.

Security switch that locks your configuration and prevents any unauthorized access.

The ports used in production have been disabled to prevent malware from being loaded via the ports.

4) For industrial environments

Robust, compact housing.

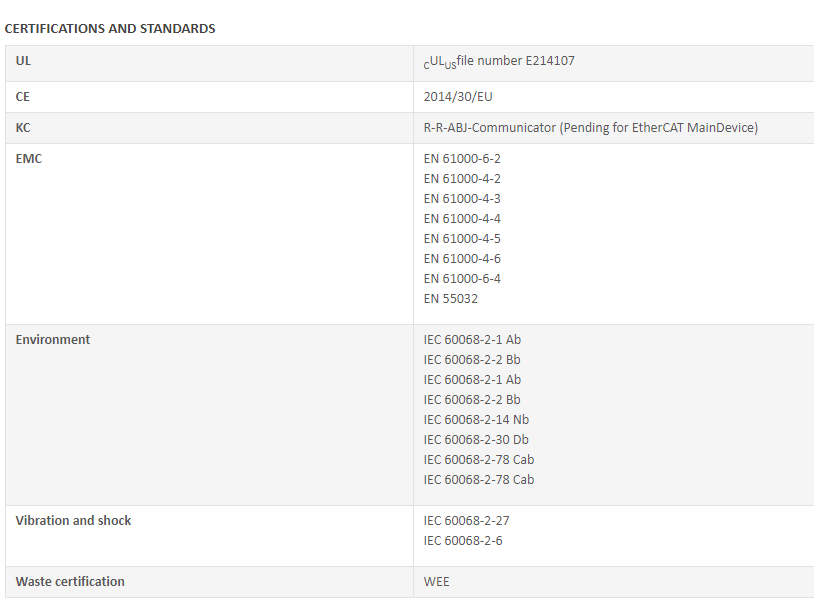

Industrial components are CE and UL tested and certified.

Wide temperature range, -25°C to 70°C.

Top-hat rail mounting for installation close to the connected devices, reducing wiring effort.

ANYBUS' SECOND-GENERATION GATEWAYS OFFER WORLD-LEADING USABILITY THANKS TO THE INTUITIVE GRAPHICAL USER INTERFACE (GUI).

The User Interface enables you to:

  • Change the configurations without installing additional software
  • Use drag and drop functionality to configure the gateway
  • Import or export files or firmware
  • Analyze live data or export a log file for deeper analysis
  • Use the support tab to open the relevant user guide or generate a customized support package
Want to brand your interface? No problem! Customize the interface to meet your look

INTERESTED?

Click on the link to watch the User Interface in action. You can even try the user Interface before you buy!

Learn more

PROFINET FEATURES

  • PROFINET IO-Device (slave)
  • Transfer up to 1 024 bytes to and from PROFINET (2048 bytes total)
  • 1 ms minimum cycle time
  • Conformance class B, Real-Time (RT)
  • High robustness against network load, Netload Class III
  • Dual RJ45 Ethernet ports with 10/100 Mbit full duplex
  • Daisy chaining with integrated switch

ETHERNET/IP FEATURES

  • EtherNet/IP adapter mode
  • Transfer up to 1 448 bytes to and from EtherNet/IP (2896 bytes total)
  • Class 1 and Class 3 connection for process data
  • Device Level Ring (beacon mode)
  • Quick Connect class B
  • Dual RJ45 Ethernet ports with 10/100 Mbit full duplex
  • Daisy chaining with integrated switch
Anybus Communicator - PROFINET IO-Device - EtherNet/IP adapter ABC4013, ABC4013A
