MOONS': Stepper Motors AM24HS5401-24N-EM

Price : $92.00

Availability: Lead time is 1-2 weeks. Ship from TX
Order #: AM24HS5401-24N-EM

Qty:

Description

Ordering Information

Specifications and Drawings

AM24HS5401-24N-EM

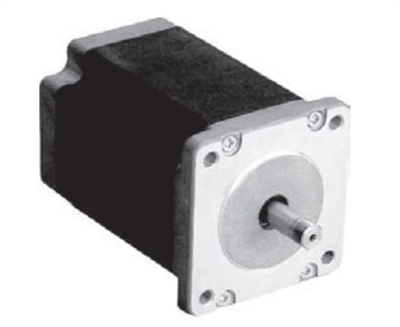

NEMA24(60mm) 1.8°2 Phase Hybrid Stepper Motors, Double Shaft, Body Length 85.0mm, Holding Torque 3.2N.m, Rated Current 4.0A, Rotor Inertia 900.0gcm2

● Step Accuracy ±5%
● Axial load 40N(9 Lbs.)Push
● Axial load 130N(30 Lbs.)Pull
● Radial load 70N(15.5 Lbs.)at the flat center

Support Links

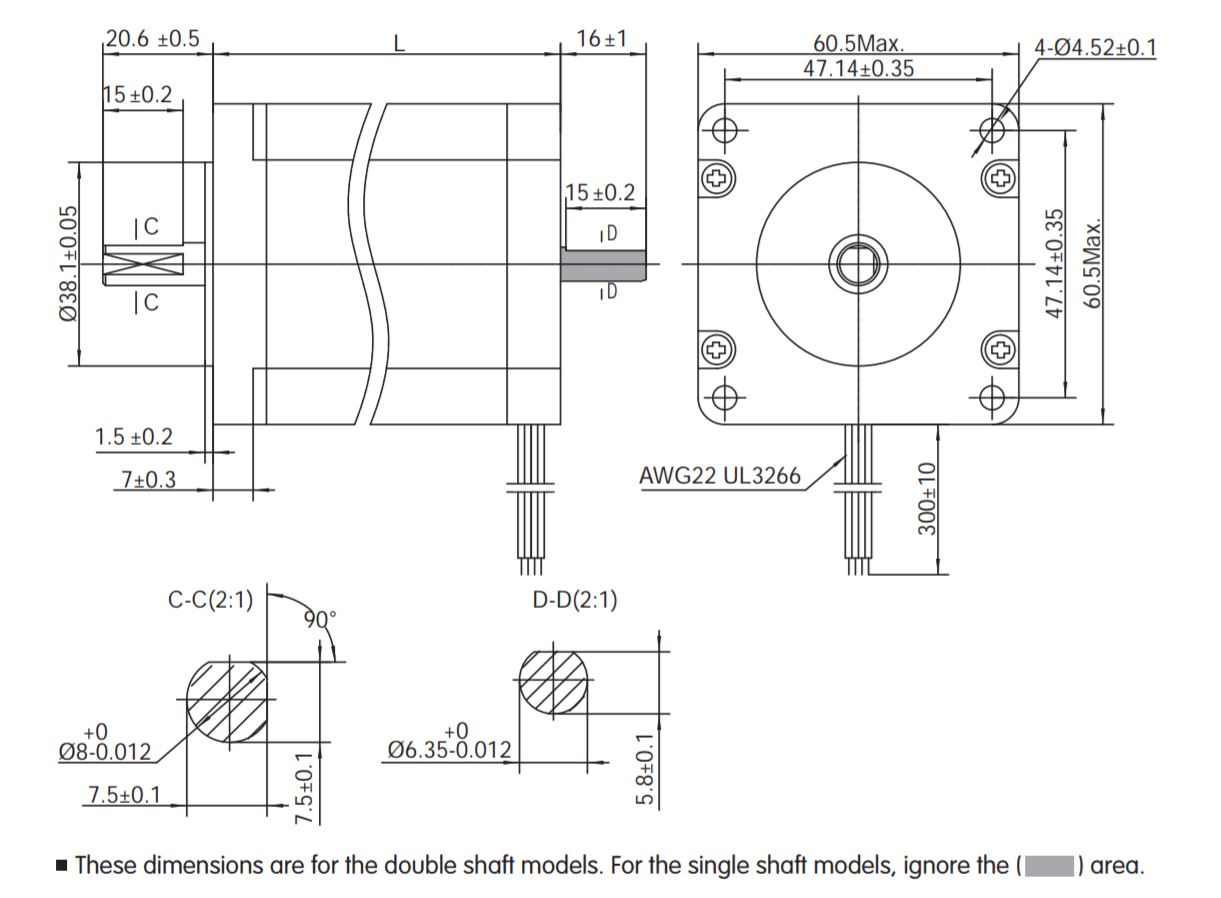

2D Drawings
Title Type Size（KB） Download
AM24HS5401-24N.pdf PDF 336
3D Model
Title Type Size（KB） Download
AM24HS5401-24N.STEP STEP 164
Catalog
Title Type Size（KB） Download
Motor Catalog_EN20190620 A6.pdf PDF 11089
