MOONS': Stepper Motors AM24HS5401-10N-EM
AM24HS5401-10N



Price : $92.00


Order #: AM24HS5401-10N-EM
Qty:

Description Ordering Information Specifications and Drawings


AM24HS5401-10N-EM


NEMA24(60mm) 1.8°2 Phase Hybrid Stepper Motors, Single Shaft, Body Length 85.0mm, Holding Torque 3.2N.m, Rated Current 4.0A, Rotor Inertia 900.0gcm2

● Step Accuracy ±5%
● Axial load 40N(9 Lbs.)Push
● Axial load 130N(30 Lbs.)Pull
● Radial load 70N(15.5 Lbs.)at the flat center

Support Links

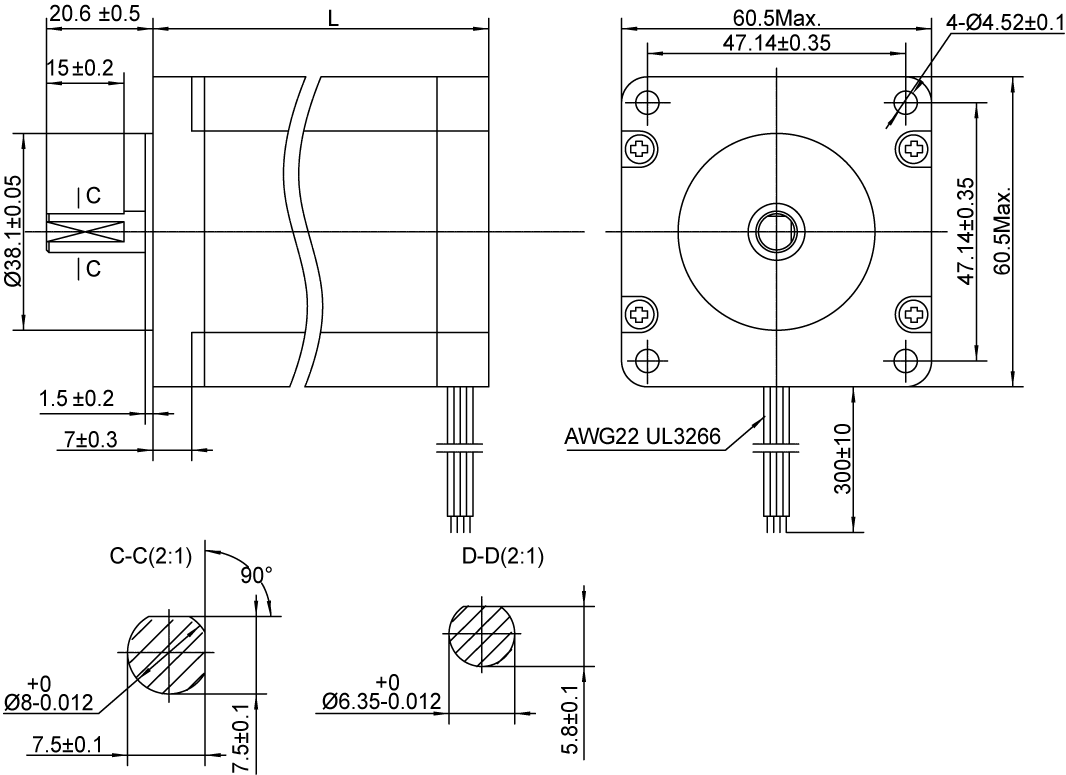

2D Drawings
TitleTypeSize(KB)Download
AM24HS5401-10N.pdfPDF310
3D Model
TitleTypeSize(KB)Download
AM24HS5401-10N.STEPSTEP153
Catalog
TitleTypeSize(KB)Download
Motor Catalog_EN20190620 A6.pdfPDF11089
