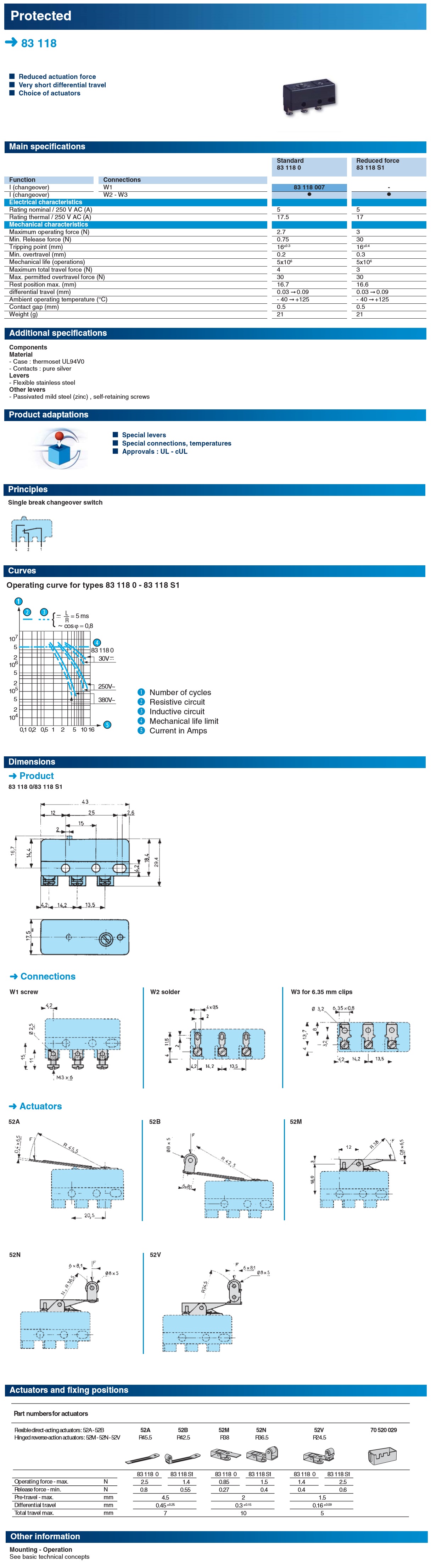

Description Specifications and Drawings


Crouzet: Special Microswitches (83118/83119/83120 Series)

With over 60 years’ experience in snap-action technology, Crouzet Switches offers a complete range of Microswitches for the highly demanding markets. The extensive choice consists of standard or customized Sub-subminiature, Subminiature, Miniature and Special microswitches, all conform to the most rigorous quality standards.

Our microswitches are characterized by a large range of switching ratings from 1 mA to 25 A, magnetic blowout versions for High DC ratings, sealed models, positive break versions, a wide range of operating temperatures, models for explosive atmospheres, long service life and wide variety of actuators, contact materials and fixing means.

Special Microswitches – High Accuracy Sensitive

  • Reduced actuation force

  • Very short differential travel

  • Choice of actuators

Specifications

  • Approx body size (mm): 43x18x17

  • Rating (max): 10A / 250Vac

  • Degree of protection: IP40

  • Operating temperature: -40°C/+125°C

  • Operating force (max): 0.35 → 3 N

  • Differential travel (max): 0.09 mm; 0.7 mm

  • Overtravel (min): 0.2 →1.7 mm

  • Mechanical life (cycles): 5 M
