CYCLONE NEMA 17 Stepper Motor : ZSM-17-2

Home > ECET >

CYCLONE NEMA 17 Stepper Motor : ZSM-17-2

CYCLONE NEMA 17 Stepper Motor : ZSM-17-2

Alternate View

Price : $33.99

Availability: Usually Ships in 2 to 4 Weeks
Order #: ZSM-17-2

Shaft:

Qty:

Description

Ordering Information

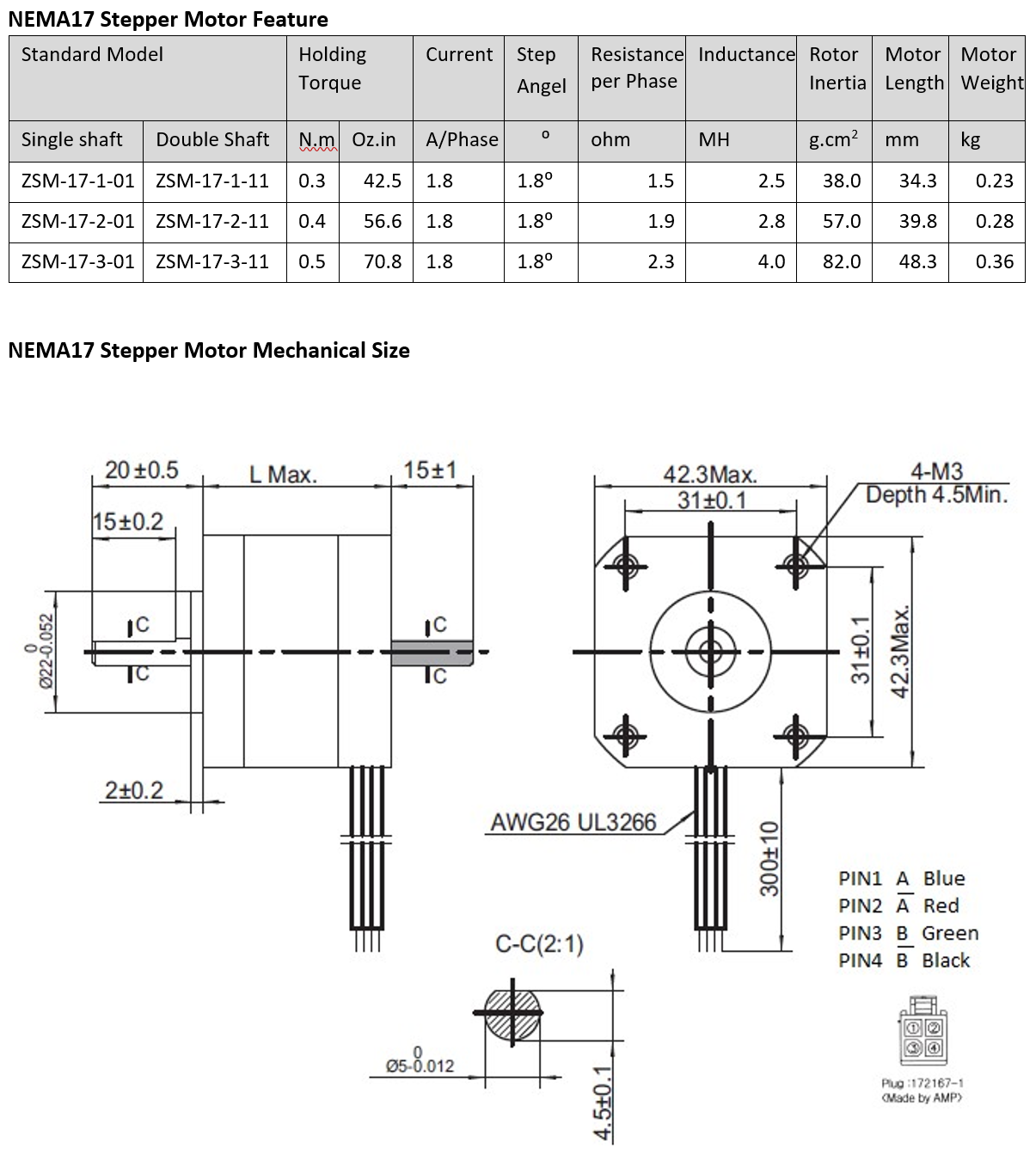

Specifications and Drawings

CYCLONE NEMA 17 Stepper Motor

Holding Torque (N.m/ oz-in): 0.4/56.6

Rated Current (A/Phase): 1.8

Step Angle (⁰): 1.8

Resistance/phase (Ω): 1.9

Rotor Inertia (g.cm2): 57.0

Motor Length (mm): 39.8

Weight (kg): 0.28

Support Links

CYCLONE 2 phase stepping motor brochure
