Unitronics: PLC+HMI (Vision290 Series)
Unitronics: PLC+HMI (Vision290 Series)



Price : $1,228.00


Availability: Lead time is 1-3 weeks
Order #: V290-19-B20B
Qty:

Description Specifications and Drawings


Unitronics: PLC+HMI (Vision290 Series)

PLC with 5.7″ graphic black & white touchscreen HMI. Accepts I/O expansions and snap-in modules; expands up to 316 I/Os.


The
Vision290™ is a powerful PLC with a built-in HMI Operator Panel, comprising a 5.7” graphic touchscreen display with a virtual keypad. On-board I/Os can be added by simply snapping a module onto the back of the PLC; Snap-in I/O Modules come in several configurations. I/O Expansion modules enable integrating up to 316 I/Os per Vision PLC.

The Vision290™offers a rich range of embedded features such as multiple auto-tuned PID loops, internal 120K structured data table and loadcell support. Communication options include TCP/IP, Ethernet, GSM/SMS, MODBUS, CANbus networking, function blocks that enable Vision to communicate with devices using proprietary COM protocols, plus remote access and data export software utilities.
1M-Ladder code application memory enables the Vision290™ to run complex control and automation tasks.

The touchscreen HMI enables the display of ‘touchable’ images and text according to real-time conditions—for on-line operation and diagnostics. It can also display graphs according to historical values—to reflect trends of recorded data. Display options are almost endless with up to 255 user-designed screens, and up to 24 HMI variables per screen.

The Vision PLC/Graphic HMI series introduces an unbeatable price-performance ratio, enabling users to enjoy the advanced features of both the operator panel and the PLC, while maintaining low budget, reduced programming time and minimum wiring.

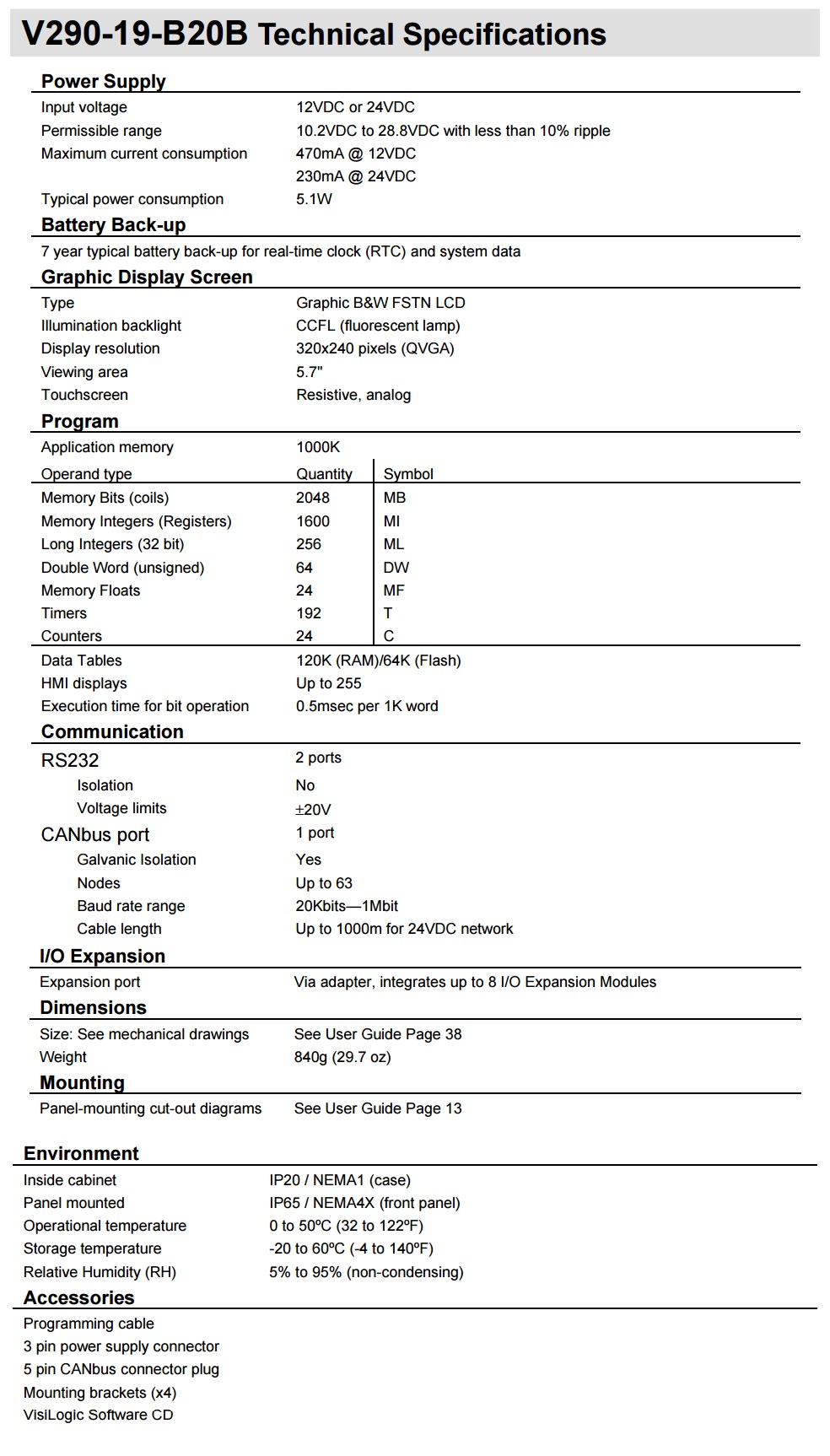

Specifications
:

PLC

  • Supports up to 171 I/Os via Snap-in or Expansion Modules (number/type vary according to model)

  • I/O types: Digital (including shaft-encoder inputs & PWM outputs), Analog, & Temperature/weight measurement

  • Application memory: 1000K

  • Execution time: 0.5µsec for bit operation

  • Multiple built-in PID loops, including auto-tune

  • Data Tables: 120K (RAM) & 192K (Flash) for dynamic data logging and production recipes


HMI

  • Display ‘touchable’ images, text and graphs according to real-time conditions and historical values

  • ‘Touch’ properties can be assigned to all text and graphic on-screen elements

  • Data entry/modification via keypad

  • Up to 255 user-designed displays

  • 24 variables per display; link up to 150 images/messages to each variable

  • Use hundreds of images in one application

  • Graphic display screen: 5.7”, 320 x 240 pixels (QVGA)

  • LCD illuminated screen

  • Virtual keyboard

  • Info mode: view/modify I/O status, integer values, and system data via the panel


Communications

  • RS232 port

  • RS232/RS485 port

  • Ethernet/additional RS232/RS485 port (optional)

  • GSM/SMS support

  • Remote access via network GPRS, GSM, CDMA or landline modems

  • MODBUS (master/slave)

  • CANbus and UniCAN

  • OPC/DDE server

  • Additional communication protocols


Our HMI/PLC programming software and software utilities are free to all
Unitronics clients.
