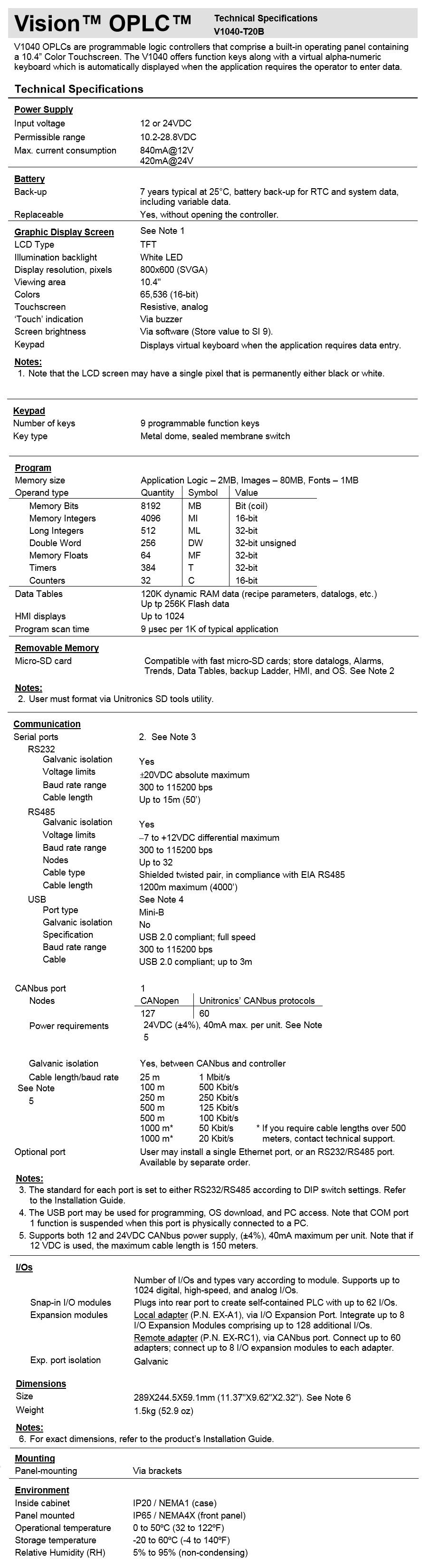

Description Specifications and Drawings


Unitronics: PLC+HMI (Vision1040 Series)

PLC &Big-Screen HMI in ONE unit

The Vision1040™ is a powerful PLC with a built-in HMI Operator Panel comprising a 10.4” color touch-screen and nine programmable function keys. On-board I/Os can be added by simply snapping a module onto the back of the PLC; Snap-in I/O Modules come in several configurations. I/O Expansion modules enable integrating up to 1000 I/Os per Vision PLC.

The Vision1040™ offers a rich range of embedded features such as multiple auto-tuned PID loops, and internal 120K data table for data logging and recipe programming. Communication options include TCP/IP Ethernet, GSM/SMS, MODBUS and CANopen networking plus remote access for data acquisition and program download. In addition this is the first Vision controller to comprise a USB programming port.

2MB Ladder code application memory (plus 32MB for images and 1MB for fonts) enable the Vision1040™ to run complex control and automation tasks.
The 16-bit 65,000-color touch-screen HMI enables the display of color-coded operator instructions and red, attention-grabbing alarm screens. It can also display graphs according to historical values—to reflect trends of recorded data. Display options are almost endless with more than 1024 user-designed screens, and up to 500 images per application.

The Vision PLC/Graphic HMI series introduces an unbeatable price-performance ratio, enabling users to enjoy the advanced features of both the operator panel and the PLC, while maintaining low budget, reduced programming time and minimum wiring.

Specifications:

  • Up to 1000 I/O; Supports Remote I/O

  • Digital, Analog, Temperature, Weight

  • 10.4” Color Touch screen, 64K Colors

  • Autotune PID 24 loops

  • 2MB Logic, up to 500 Images (32MB)

  • Cellular Communication- SMS, GPRS

  • Ethernet, Canbus, RS485, MODBUS RTU/IP, CANopen, J1939, SNMP

  • Web Server, send emails & attachments

  • SD Card, Data logging, Recipes & Cloning

  • Built in Trends, Alarms, & Multilanguage Support
