Newport: Compact Motorized Actuators (TRA Series)
Newport: Compact Motorized Actuators (TRA Series)



Call for Pricing

Price Quote Form


Order #: TRA


Model Number/Code*:


.
Description Specifications and Drawings


Newport: Compact Motorized Actuators (TRA Series)

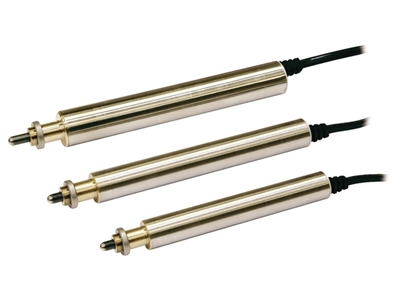

The TRA series miniature motorized actuators are the latest addition to Newport's
extensive range of precision positioning devices. They provide reliable motorized motion in a small diameter, lightweight package and are a lower cost alternative to the popular CMA series.


The TRA actuators incorporate an excellent space saving design that allows them to be
used with a wide variety of linear stages, mirror mounts, and OEM applications. The TRA6 models provide 6 mm travel in a slim, 15 mm diameter housing and are the recommended choice for motorizing 561 series linear stages, 481 and RS65 rotation stages. The TRA12 models provide 12 mm travel and are compatible with Ultima and Suprema mirror mounts, ULTRAlign, 460A series linear stages, and other devices with up to 12 mm travel. The TRA6 and TRA12 are also mechanical compatible with other Newport mechanical products, but due to the limited travel range of the actuator, the total travel range of the mechanics may not be achieved. The TRA25 provides 25 mm travel in a slightly larger package and is the recommended choice for motorizing longer travel linear stages and other devices with longer travel range.


To provide the best fit for your application TRA actuators are available in stepper, stepper
vacuum and closed-loop DC servo motor versions.


All TRA actuators include integrated optical limit switches. These highly reliable switches
not only protect your investment from over travel damage, they also provide a method for repeatable referencing/homing, for instance after shut-downs.


TRA actuators also feature a hard-coated steel ball tip that minimizes contact surface
wear compared to other designs that use regular steel ball tips.


TRA6PPV6

The TRA6PPDV6 Miniature Stepper Motor Actuator provides 6 mm travel in a slim, 15 mm diameter housing and is the recommended choice for motorizing 561 series linear stages, and 481 and RS65 rotation stages. TRA actuators incorporate an excellent space saving design that allows them to be used with a wide variety of linear stages, mirror mounts, and OEM applications. Vacuum compatible to 10-6 hPa.

Due to the various feed-through configurations and preferences of customers, the connector supplied with the actuator is not vacuum compatible. Can be ordered with a vacuum compatible 25pin SubD connector.


TRA6PPD

The TRA6PPD Miniature Stepper Motor Actuator provides 6 mm travel in a slim, 15 mm diameter housing and is the recommended choice for motorizing 561 series linear stages, and 481 and RS65 rotation stages. TRA actuators incorporate an excellent space saving design that allows them to be used with a wide variety of linear stages, mirror mounts, and OEM applications. 25-pin D-Sub connector.


TRA6CC

The TRA6CC Miniature DC Servo Actuator provides 6 mm travel in a slim, 15 mm diameter housing and is the recommended choice for motorizing 561 series linear stages, and 481 and RS65 rotation stages. TRA actuators incorporate an excellent space saving design that allows them to be used with a wide variety of linear stages, mirror mounts, and OEM applications.


TRA25PPV6

The TRA25PPV6 Miniature Stepper Motor Actuator provides 25 mm travel in a slightly larger package than the other TRA actuators. It is the recommended choice for motorizing longer travel linear stages and other devices with longer travel range. TRA actuators incorporate an excellent space saving design that allows them to be used with a wide variety of linear stages, mirror mounts, and OEM applications. Vacuum compatible to 10-6 hPa.

Due to the various feed-through configurations and preferences of customers, the connector supplied with the actuator is not vacuum compatible. Can be ordered with a vacuum compatible 25pin SubD connector.


TRA25PPD

The TRA25PPD Miniature Stepper Motor Actuator provides 25 mm travel in a slightly larger package than the other TRA actuators. It is the recommended choice for motorizing longer travel linear stages and other devices with longer travel range. TRA actuators incorporate an excellent space saving design that allows them to be used with a wide variety of linear stages, mirror mounts, and OEM applications. 25-pin D-Sub connector.


TRA25CC

The TRA25CC Miniature DC Servo Actuator provides 25 mm travel in a slightly larger package then the other TRA actuators. It is the recommended choice for motorizing longer travel linear stages and other devices with longer travel range. TRA actuators incorporate an excellent space saving design that allows them to be used with a wide variety of linear stages, mirror mounts, and OEM applications.


TRA12PPV6

The TRA12PPDV6 Miniature Stepper Motor Actuator provides 12 mm travel in a slim, 15 mm diameter housing and is the recommended choice for motorizing 561 series linear stages, and 481 and RS65 rotation stages. TRA actuators incorporate an excellent space saving design that allows them to be used with a wide variety of linear stages, mirror mounts, and OEM applications. Vacuum compatible to 10-6 hPa.

Due to the various feed-through configurations and preferences of customers, the connector supplied with the actuator is not vacuum compatible. Can be ordered with a vacuum compatible 25pin SubD connector.


TRA12PPD

The TRA12PPD Miniature Stepper Motor Actuator provides 12 mm travel in a slim, 15 mm diameter housing and is the recommended choice for motorizing 561 series linear stages, and 481 and RS65 rotation stages. TRA actuators incorporate an excellent space saving design that allows them to be used with a wide variety of linear stages, mirror mounts, and OEM applications. 25-pin D-Sub connector.


TRA12CC

The TRA12CC Miniature DC Servo Actuator provides 12 mm travel in a slim, 15 mm diameter housing and is the recommended choice for motorizing 561 series linear stages, and 481 and RS65 rotation stages. TRA actuators incorporate an excellent space saving design that allows them to be used with a wide variety of linear stages, mirror mounts, and OEM applications.


Features:

  • Low cost stepper & DC Servo actuators

  • Light and compact in-line design

  • Vacuum compatible stepper motor versions

  • Replaces manual micrometer drives with similar form factor

  • Integrated optical limit switches prevent component & motor damage

  • Hard-coated steel actuator ball tip


Model No.: TRA12CC, TRA12PPD, TRA12PPV6, TRA25CC, TRA25PPD, TRA25PPV6, TRA6CC, TRA6PPD, TRA6PPV6
