CYCLONE: Servo Motor (SEMG-09)
CYCLONE: Servo Motor (SEMG-09)



Price : $658.00

Price with Selected Options: $658.00


Order #: SEMG-09


Brake Option:

Encoder:

Shaft:

Qty:
Description Specifications and Drawings


Specifications:

  • Brand: CYCLONE
  • Model: SEMG-09
  • Rated Speed: 1500 rpm
  • Maximum Speed: 3000 rpm
  • Rated Power: 850W
  • Rated Torque: 5.5 Nm
  • Peak Torque: 16.5 Nm
  • Rated Current: 6.5 Amps
  • Peak Current: 19.5 Amps


Catalog

Buying Guide

SEMG Specs.

SEMG Toque Curves

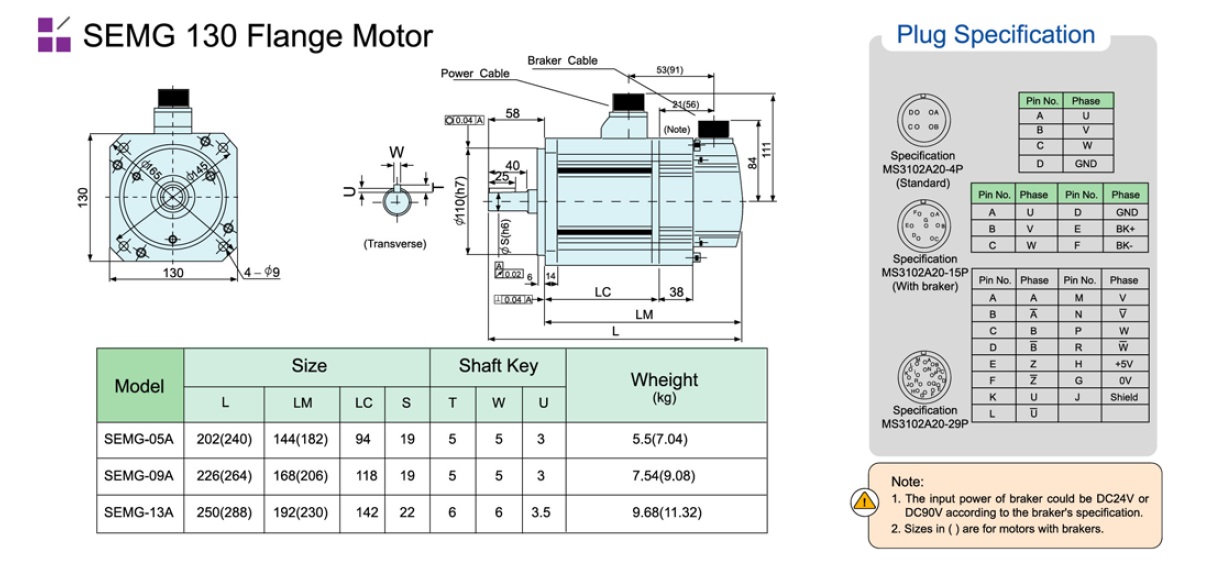

SEMG 130 CAD
