Mean Well: Enclosed Switching Power Supply (NES-35 Series)
Mean Well: Enclosed Switching Power Supply (NES-35 Series)



Call for Pricing

Price Quote Form


Order #: NES-35




.

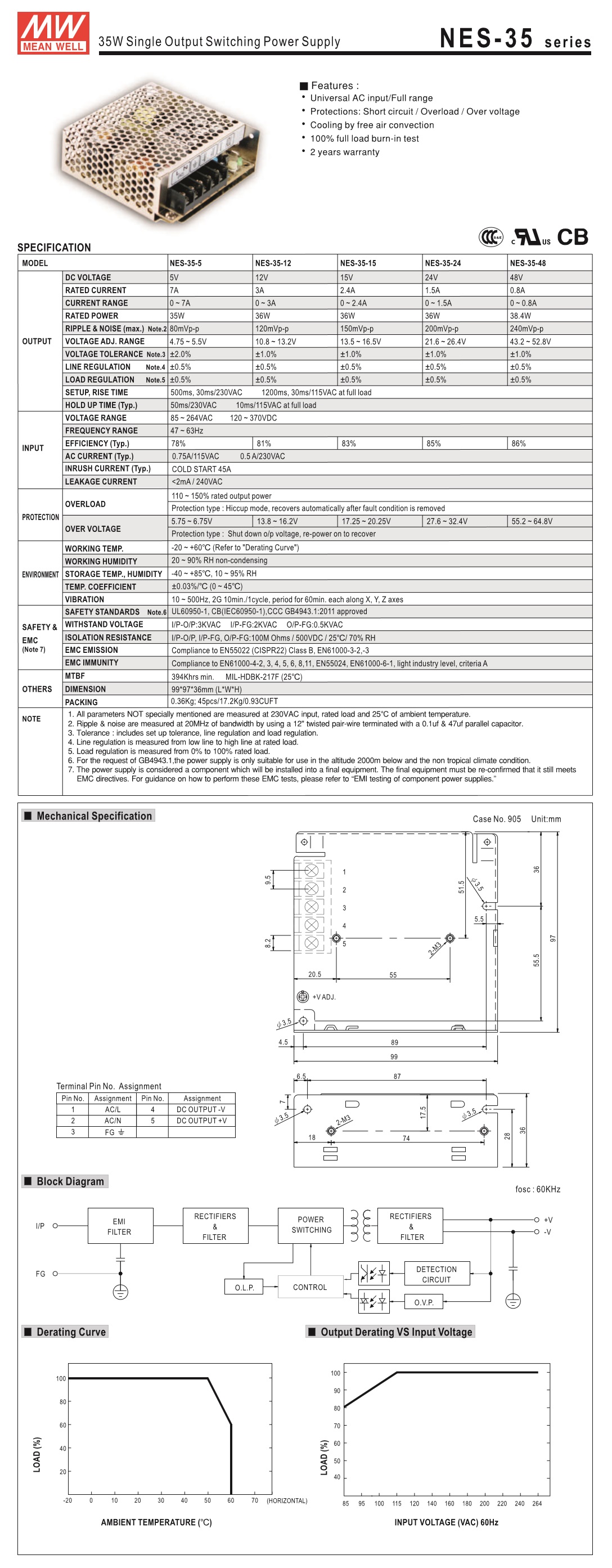

Description Specifications and Drawings


Mean Well: Enclosed Switching Power Supply (NES-35 Series)

Features:

  • Universal AC input / Full-Range (NES/D-100, NES-150 AC input selectable by switch)

  • Protections: Short circuit / Overload / Over voltage

  • Built-in over temperature protection for NES-15

  • Cooling by free air convection

  • Small size, high power density

  • Low cost, high reliability

  • 100% full load burn-in test

  • Most economical low wattage solution with safety certificates

  • 2 year warranty

  • Operating Temperature: -20~+60°C

  • Dimensions (Inches): 3.89” x 3.81” x 1.41”

  • Weight (Kg): 0.36


Model No.:
NES-35-5, NES-35-12, NES-35-15, NES-35-24, NES-35-48
