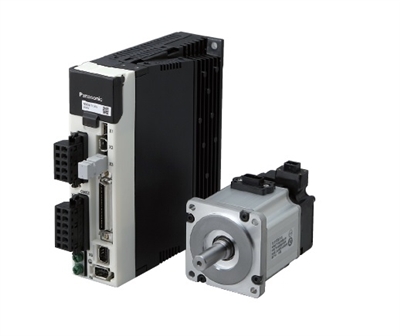

Panasonic: AC Servo Motors (MSME A5 Series)

MSME-MINAS A5 series (100-200V)


Panasonic’s MINAS A5 has five industry-leading advantages supported by a variety of new technologies and new features, such as: it’s quick, smart, light, safe and easy to use.


Features:

  • Power Supply Capacity (kVA): 0.4-7.5

  • Rated Output (W): 1.5-750

  • Rated Torque (N.m): 0.16-15.9

  • Momentary Max. Peak Torque (N.m): 0.48-47.7

  • Rated Current (Arms): 1.1-24.0

  • Max. Current (Ao-p): 4.7-102

  • Rated Rotational Speed (r/min): 3000

  • Max. Rotational Speed (r/min): 6000

  • Static Friction Torque (N.m): 0.29-16.1 or more

  • Engaging Time (ms): 35-110 or less

  • Releasing Time (ms): 20-50 or less

  • Exciting Current (DC) (A): 0.3-0.90± 10%

  • Releasing Voltage (DC) (V): 1-2 or more

  • Exciting Voltage (DC) (V): 24 ± 1.2-2.4%

  • Mass without Brake (kg): 0.32-14


Model No.: MSME011G1A, MSME011G1B, MSME011G1C, MSME011G1D, MSME011G1U, MSME011G1V, MSME012G1A, MSME012G1B, MSME012G1C, MSME012G1D, MSME012G1U, MSME012G1V, MSME021G1A, MSME021G1B, MSME021G1C, MSME021G1D, MSME021G1U, MSME021G1V, MSME022G1A, MSME022G1B, MSME022G1C, MSME022G1D, MSME022G1U, MSME022G1V, MSME041G1A, MSME041G1B, MSME041G1C, MSME041G1D, MSME041G1U, MSME041G1V, MSME042G1A, MSME042G1B, MSME042G1C, MSME042G1D, MSME042G1U, MSME042G1V, MSME082G1A, MSME082G1B, MSME082G1C, MSME082G1D, MSME082G1U, MSME082G1V, MSME102G1C, MSME102G1D, MSME102G1G, MSME102G1H, MSME102GCCM, MSME102GCDM, MSME102GCGM, MSME102GCHM, MSME152G1C, MSME152G1D, MSME152G1G, MSME152G1H, MSME152GCCM, MSME152GCDM, MSME152GCGM, MSME152GCHM, MSME202G1C, MSME202G1D, MSME202G1G, MSME202G1H, MSME202GCCM, MSME202GCDM, MSME202GCGM, MSME202GCHM, MSME302G1C, MSME302G1D, MSME302G1G, MSME302G1H, MSME302GCC, MSME302GCD, MSME302GCG, MSME302GCH, MSME402G1C, MSME402G1D, MSME402G1G, MSME402G1H, MSME402GCC, MSME402GCD, MSME402GCG, MSME402GCH, MSME502G1C, MSME502G1D, MSME502G1G, MSME502G1H, MSME502GCC, MSME502GCD, MSME502GCG, MSME502GCH, MSME5AZG1A, MSME5AZG1B, MSME5AZG1C, MSME5AZG1D, MSME5AZG1U, MSME5AZG1V
