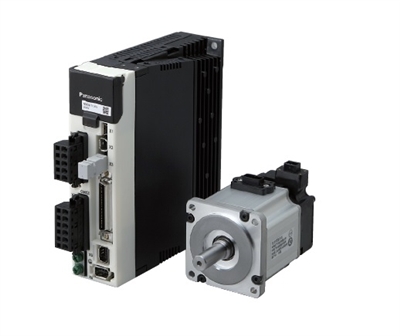

Panasonic: AC Servo Motors (MSMD A5 Series)

MSMD-MINAS A5 Series (100-200V)


Panasonic’s MINAS A5 has five industry-leading advantages supported by a variety of new technologies and new features, such as: it’s quick, smart, light, safe and easy to use.


Features:

  • Power Supply Capacity (kVA): 0.5-1.3

  • Rated Output (W): 50-750

  • Rated Torque (N.m): 0.16-2.4

  • Momentary Max. Peak Torque (N.m): 0.48-7.1

  • Rated Current (Arms): 1.1- 4.0

  • Max. Current (Ao-p): 4.7-17.0

  • Rated Rotational Speed (r/min): 3000

  • Max. Rotational Speed (r/min): 5000

  • Static Friction Torque (N.m): 0.29-2.45 or more

  • Engaging Time (ms): 35-70 or less

  • Releasing Time (ms): 20 or less

  • Exciting Current (DC) (A): 0.3-0.42

  • Releasing Voltage (DC) (V): 1 or more

  • Exciting Voltage: DC 24 V± 1.2%

  • Mass without Brake (kg): 0.32-2.3


Model No.: MSMD011G1A, MSMD011G1B, MSMD011G1C, MSMD011G1D, MSMD011G1U, MSMD011G1V, MSMD012G1A, MSMD012G1B, MSMD012G1C, MSMD012G1D, MSMD012G1U, MSMD012G1V, MSMD021G1A, MSMD021G1B, MSMD021G1C, MSMD021G1D, MSMD021G1U, MSMD021G1V, MSMD022G1A, MSMD022G1B, MSMD022G1C, MSMD022G1D, MSMD022G1U, MSMD022G1V, MSMD041G1A, MSMD041G1B, MSMD041G1C, MSMD041G1D, MSMD041G1U, MSMD041G1V, MSMD042G1A, MSMD042G1B, MSMD042G1C, MSMD042G1D, MSMD042G1U, MSMD042G1V, MSMD082G1A, MSMD082G1B, MSMD082G1C, MSMD082G1D, MSMD082G1U, MSMD082G1V, MSMD5AZG1A, MSMD5AZG1B, MSMD5AZG1C, MSMD5AZG1D, MSMD5AZG1U, MSMD5AZG1V


Catalog

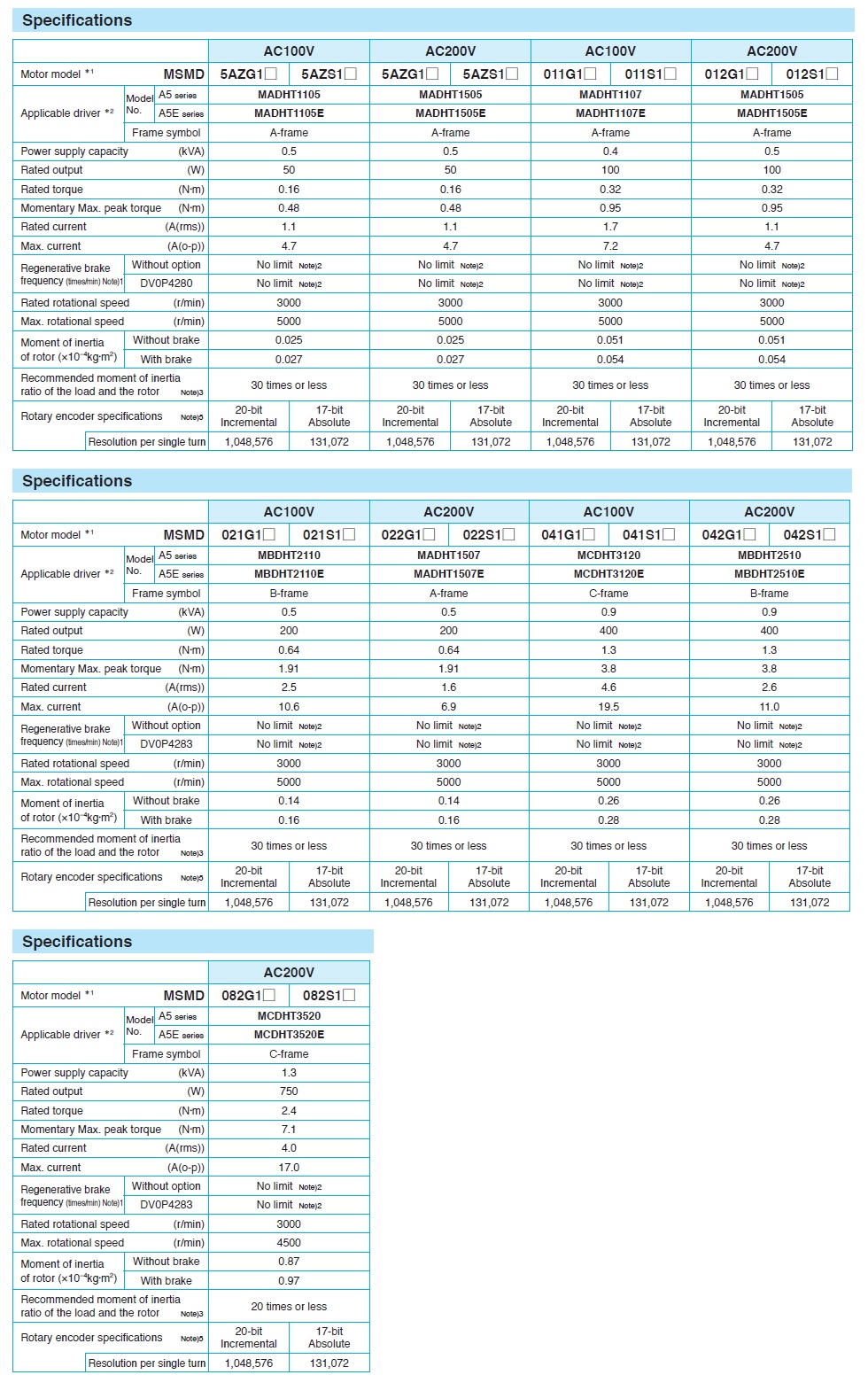

MSMD Specs

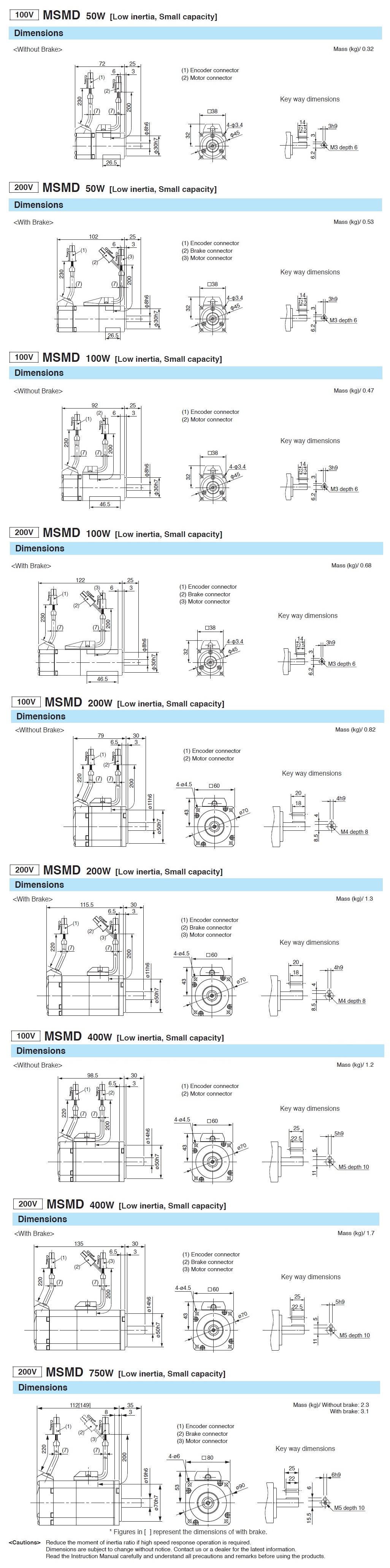

MSMD CAD

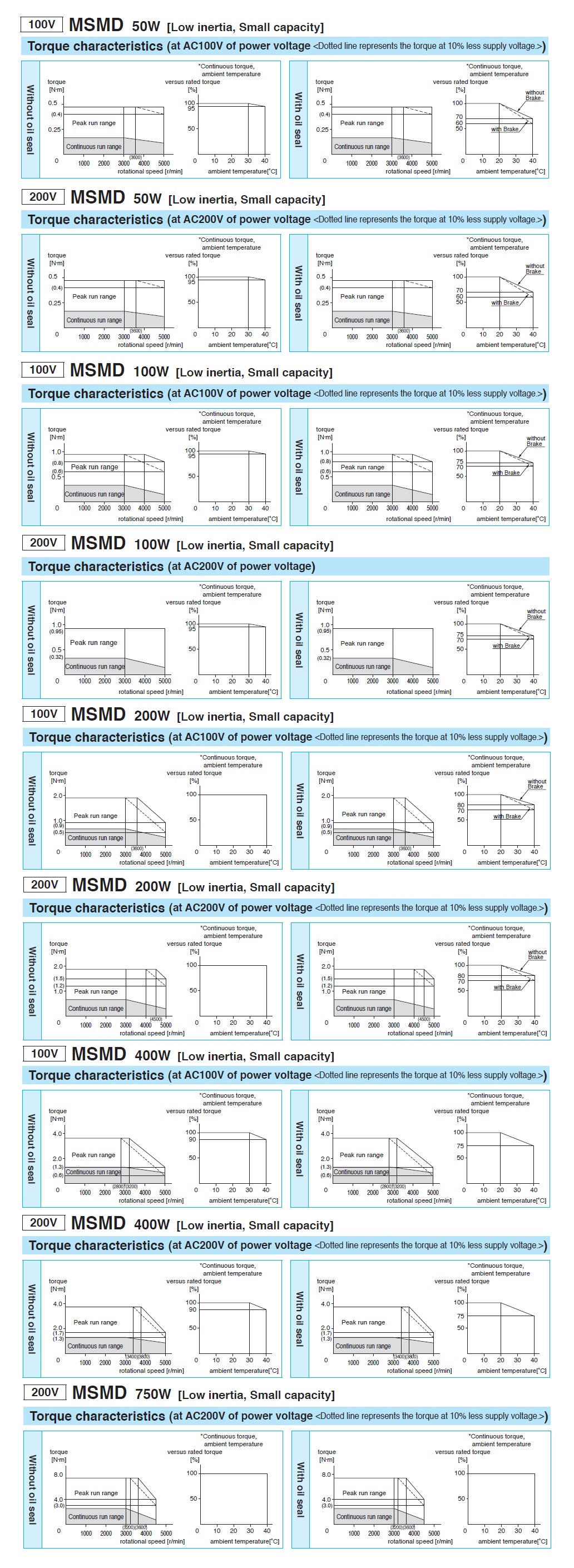

Torque Curves

Buying Guide
