RSF Elektronik: Sealed Linear Encoders (MSA 5xx Series)
RSF Elektronik: Sealed Linear Encoders (MSA 5xx Series)



Call for Pricing

Price Quote Form


Order #: MSA-5XX


Model Number/Code*:

.

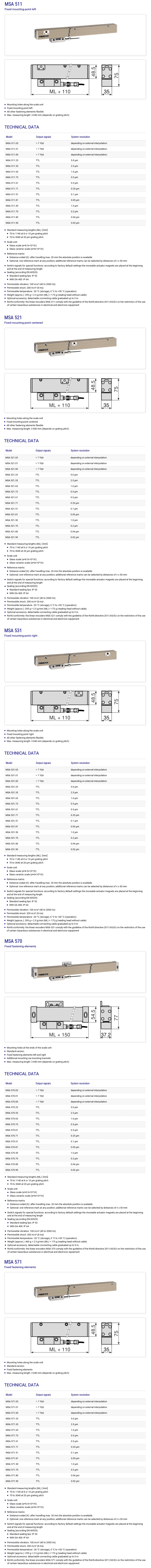

Description Specifications and Drawings


RSF Elektronik: MSA 5xx Series

(Sealed Linear Encoders)

Fields of Application:

Enclosed Linear Encoders are particularly suitable for use in situations which demand a high level of precision and efficiency despite harsh ambient conditions including coolant and lubricant ingress or soiling by shavings, filings or dust.

Performance Characteristics:

  • Compact measuring unit with optical scanning

  • Scale and reading head are protected by aluminium housing and sealing lips from soiling

  • Simple assembly

  • Patented coupling system between scanning carriage and scanning head allows greater assembly tolerances - without compromising precision

  • Reproducible thermal performance

  • Detachable connection cable

Typical Applications:

  • Machine tools: Turning, milling and grinding machines, erosion machines, press brakes

  • Electronics manufacturing: Circuit board drilling and milling, screen-printing systems,

  • Measurement technology: Microscope, measuring stage, presetting device

  • Linear units and drives

  • Rapid prototyping

Features:

  • System resolution: 0.02-5.0 µm

  • Large cross-sectional profile

  • Scale unit: glass, glass ceramic

  • Grating pitch: 8, 10, 20 µm

  • Standard with detachable connecting cable
    (graduated up to 9 m length, other lengths on request)

  • Defined thermal behavior

  • Measuring length: up to 3040 mm

  • Various mechanical versions

  • Detachable connection cable (MSA 5xx)


Model No.: MSA 511.00, MSA 511.01, MSA 511.03, MSA 511.23, MSA 511.30, MSA 511.33, MSA 511.51, MSA 511.61, MSA 511.63, MSA 511.70, MSA 511.71, MSA 511.73, MSA 511.80, MSA 511.81, MSA 511.90, MSA 521.00, MSA 521.01, MSA 521.03, MSA 521.23, MSA 521.30, MSA 521.33, MSA 521.51, MSA 521.61, MSA 521.63, MSA 521.70, MSA 521.71, MSA 521.73, MSA 521.80, MSA 521.81, MSA 521.90, MSA 531.00, MSA 531.01, MSA 531.03, MSA 531.23, MSA 531.30, MSA 531.33, MSA 531.51, MSA 531.61, MSA 531.63, MSA 531.70, MSA 531.71, MSA 531.73, MSA 531.80, MSA 531.81, MSA 531.90, MSA 570.00, MSA 570.01, MSA 570.03, MSA 570.23, MSA 570.30, MSA 570.33, MSA 570.51, MSA 570.61, MSA 570.63, MSA 570.70, MSA 570.71, MSA 570.73, MSA 570.80, MSA 570.81, MSA 570.90, MSA 571.00, MSA 571.01, MSA 571.03, MSA 571.23, MSA 571.30, MSA 571.33, MSA 571.51, MSA 571.61, MSA 571.63, MSA 571.70, MSA 571.71, MSA 571.73, MSA 571.80, MSA 571.81, MSA 571.90
