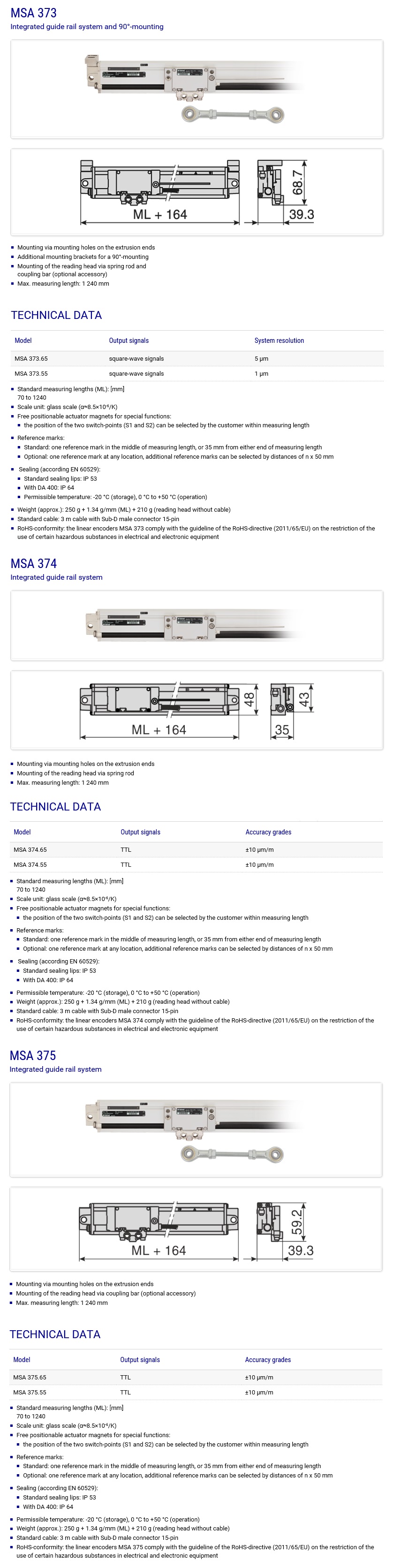

Description Specifications and Drawings


RSF Elektronik: Sealed Linear Encoders (MSA 37x Series)

Sealed Linear Encoders with Integrated Guide Rail System

Sealed linear encoders are particularly predestined for applications in automation and production technology. They are ideally suited for metrology, printing and robotics, especially in applications where protection for the scale and reading head is required.


Performance Characteristics:

  • Compact measuring unit with optical scanning

  • Scale and reading head are protected by aluminum housing and sealing lips from soiling

  • Simple assembly

  • Patented coupling system between scanning carriage and scanning head allows greater assembly tolerances - without compromising precision

  • Reproducible thermal performance

  • Detachable connection cable


Typical Applications:

  • Machine tools: Turning, milling and grinding machines, erosion machines, press brakes

  • Electronics manufacturing: Circuit board drilling and milling, screen-printing systems,

  • Measurement technology: Microscope, measuring stage, presetting device

  • Linear units and drives

  • Rapid prototyping


Features:

  • System resolution: 5.0-10.0 µm

  • Large cross-sectional profile

  • Self-guided version

  • Scale unit: Glass

  • Grating pitch: 100 µm

  • With integrated guide rail system

  • Measuring length: up to 1240 mm


Model No.: MSA 373.55, MSA 373.65, MSA 374.55, MSA 374.65, MSA 375.55, MSA 375.65
