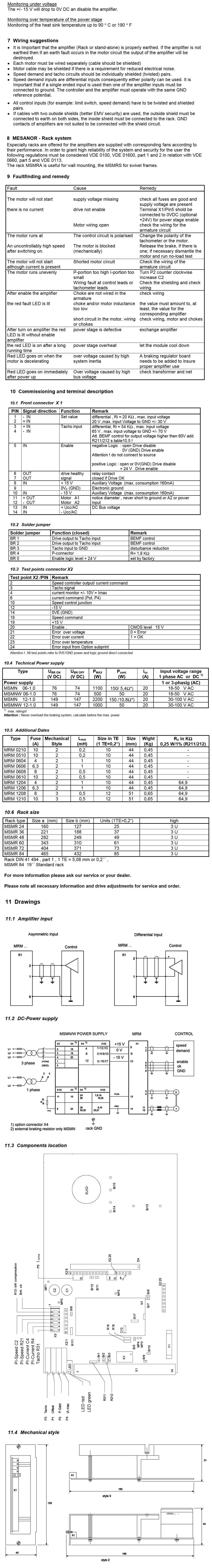

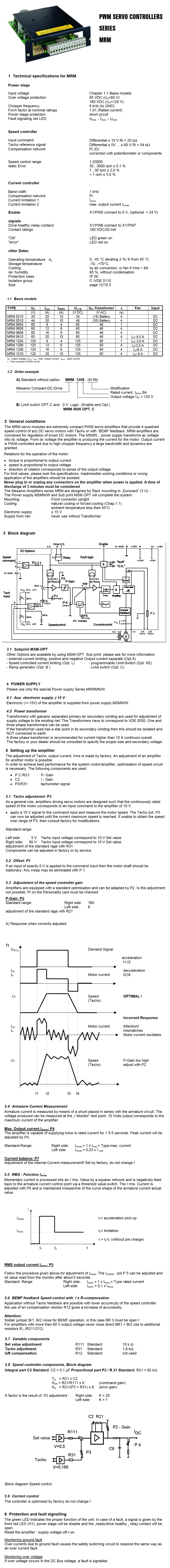

Description Specifications and Drawings


Infranor: DC Brush Servo Drives (MRM Series)

The MRM servo modules are extremely compact PWM servo amplifiers that provide four quadrant speed control of any DC servo motors with Tacho/BEMF feedback. MRM amplifiers are conceived for regulation of brush DC motors. The MSMN power supply transforms AC voltage into DC voltage. From DC voltage, the amplifier produces current for the motor. Output current is PWM controlled and due to high chopper frequency, large bandwidth and dynamics are granted.

Features

  • DC power supply (MSMN/W)

  • Especially for multiple axes application in rack version

  • 100 % compatibility to the former MSM series

Specifications

  • Voltage (Input): 24VDC - 113 VAC

  • Current (Maximum): 2 - 30 Amp

  • Feedback (Type): Tach / BEMF


Model No.:
MRM 0210, MRM 0510, MRM 0604, MRM 0606, MRM 0608, MRM 0610, MRM 1204, MRM 1206, MRM 1208, MRM 1210
