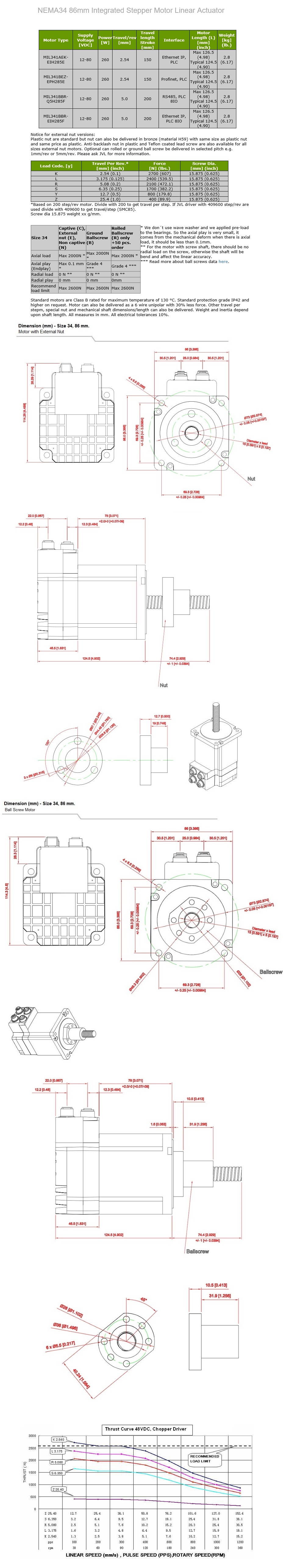

Description Specifications and Drawings

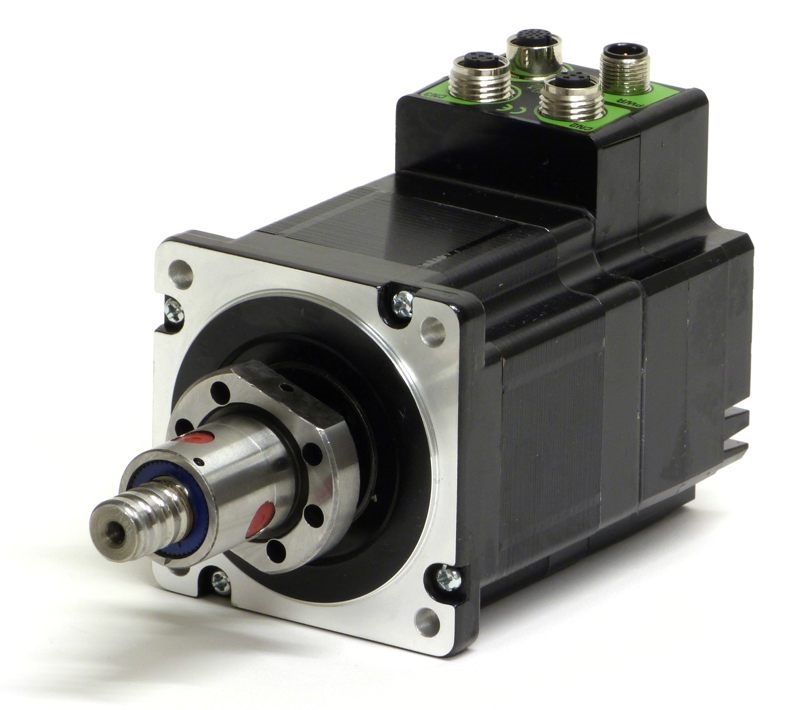

JVL: Integrated Stepper Motor with Linear Actuator (MIL34 Series)

NEMA34 | 86mm

Linear stepper motors can dramatically reduce cost and save space. There is no coupling, no additional bearing support and no assembly work required. This not only reduces cost but also reduces the failure rate due to the low number of components and simple construction. In applications with small load ratings, a linear guide is also not required. The special design and material of the nut secure long-term operation.

Below versions can be delivered

  • Non-Captive linear actuator with a nut inside the motor. Linear moving part can rotate so it should be fixed.

  • External linear actuator. Nut is mounted on the lead screw.

  • Captive (will be available for NEMA34 in the future) and External linear actuator in NEMA size 23 and 34 can be delivered with an integrated driver or controller.

Below versions can be delivered upon request

  • Different shaft and stroke length

  • Precision ball screw

  • Special nut design

  • Higher IP protection

Model No.: MIL341AEK-EIH285E, MIL341BBR-EIH285F, MIL341BBR-Q5H285F, MIL341BEZ-EPH285E
